Method for assembling a building using concrete columns
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 7, 2023
Grant Date -
N/A
app pub date -
Jun 9, 2022
filing date -
Jun 9, 2022
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

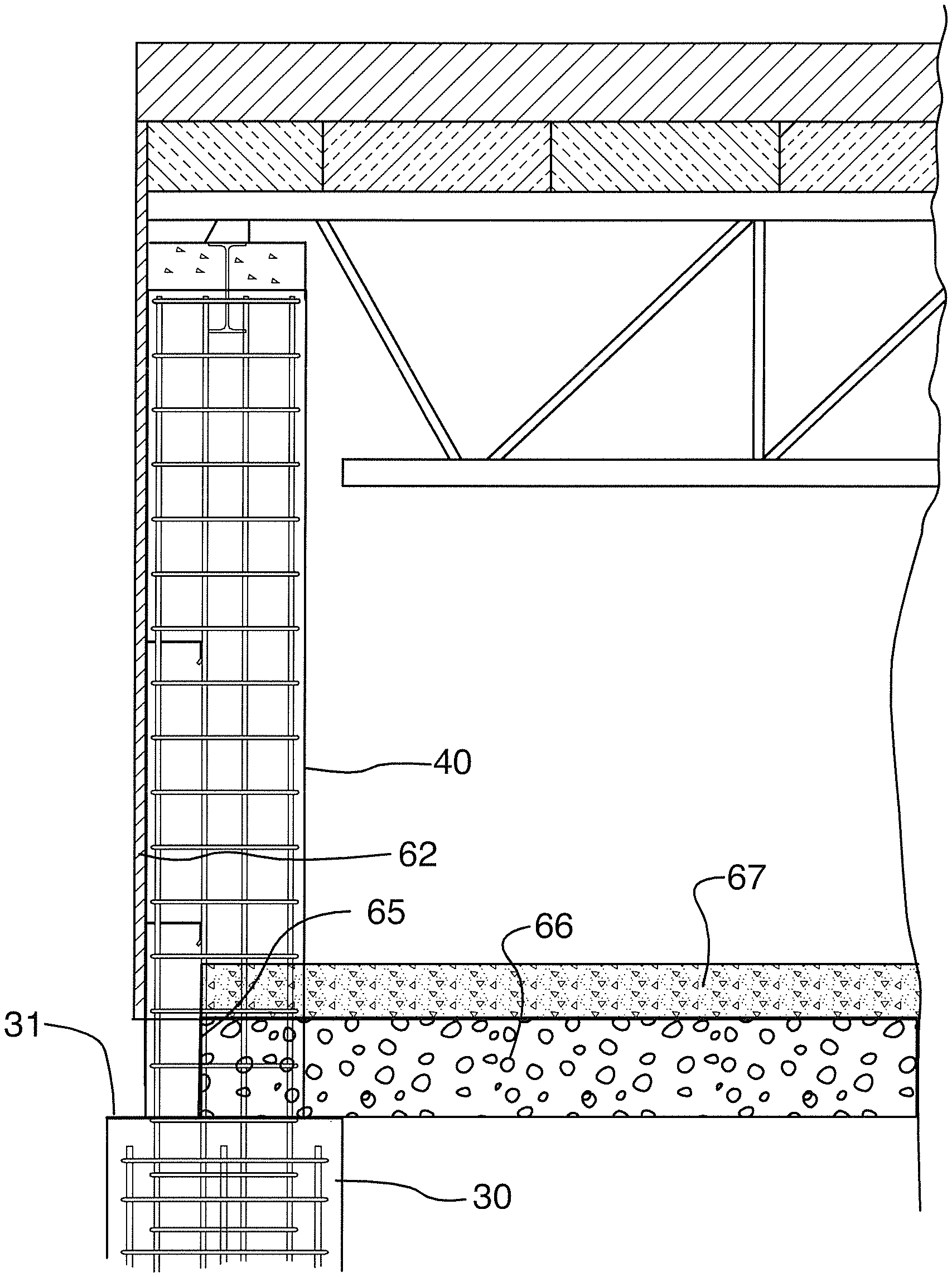

A concrete and steel insulated building is constructed by forming excavated holes and inserting into each hole a 3-dimensional reinforcing bar cage having a length so as to define reinforcement for a pile and to stand upwardly of the hole to a height above the hole to provide reinforcement for a column having a height of the building wall. The pile is formed by casting concrete into each hole around the cage and setting the material so as to define an upper surface of the pile at or above the ground. With the pile set, a formwork is defined by a series of stacked openable form components standing upwardly and a further body of concrete is cast into the formwork to form the column which is integrated with the pile by the cage. A roof and insulated walls are applied on the building supported by the columns.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2022 Application Filing Year
- E04B Class
- 784 Applications Filed
- 349 Patents Issued To-Date
- 44.52 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- E04B Class
- 0 % this patent is cited more than
- 2 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | May 7, 2027 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | May 7, 2031 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 7, 2035 |
