Workpiece clamping device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 31, 2023
Grant Date -
Jul 22, 2021
app pub date -
Jan 15, 2021
filing date -
Jan 17, 2020
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

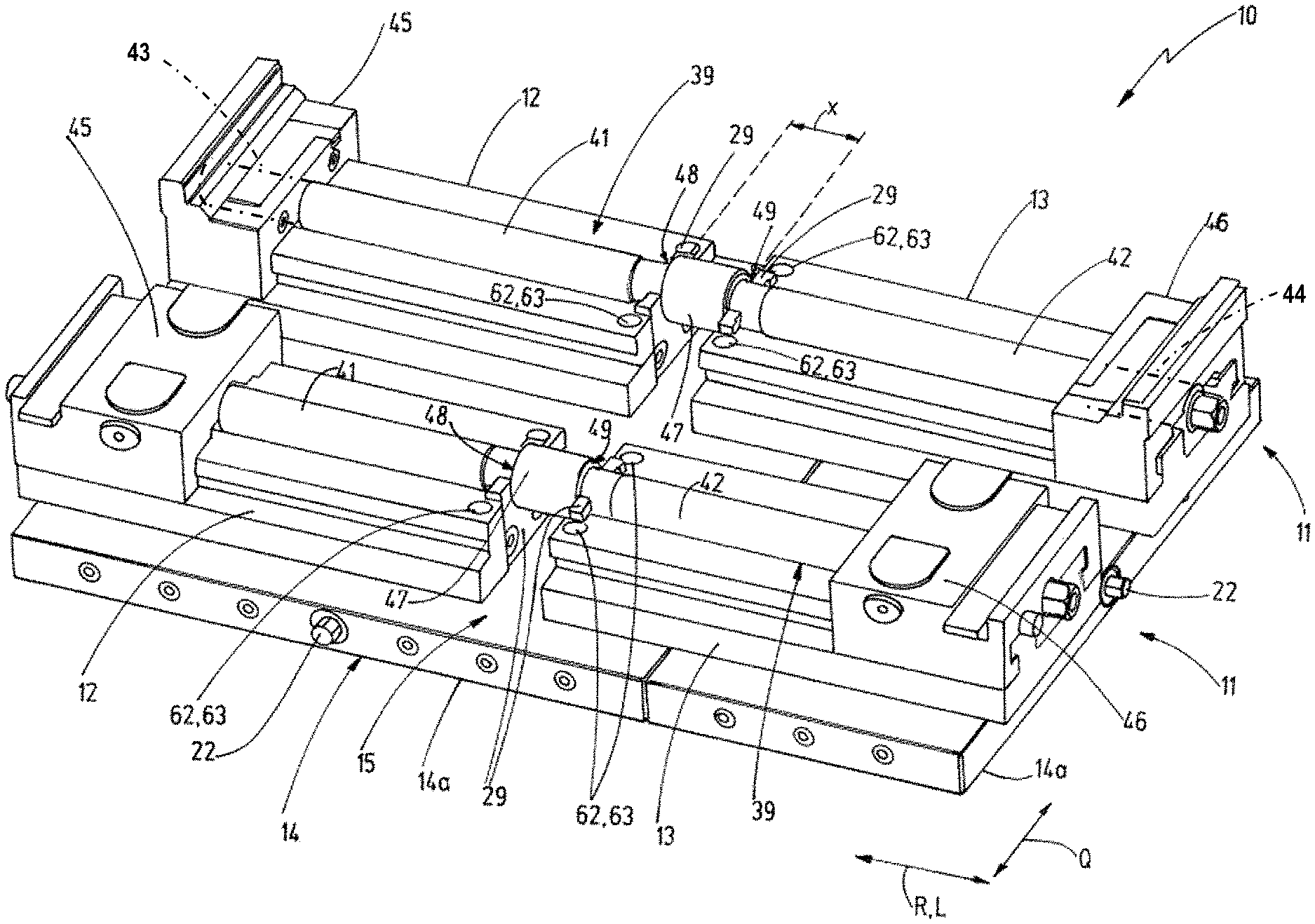

A workpiece clamping device having a first base body on which a first clamping body is slidably supported in a clamping direction, as well as a second base body on which a second clamping body is slidably supported in the clamping direction. The two clamping bodies are in engagement with a threaded spindle. A contact surface is provided on each base body on the side that faces the other base body respectively. The contact surfaces are arranged with base body distance in the clamping direction. A centering body of the threaded spindle has centering surfaces that abut at one assigned contact surface respectively in order to position the threaded spindle in clamping direction without clearance as far as possible.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2021 Application Filing Year
- B25B Class
- 715 Applications Filed
- 394 Patents Issued To-Date
- 55.11 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B25B Class
- 0 % this patent is cited more than
- 2 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Apr 30, 2027 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Apr 30, 2031 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 30, 2035 |
