Towing attachment installable on work machine
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 24, 2023
Grant Date -
May 13, 2021
app pub date -
Dec 4, 2018
filing date -
May 11, 2018
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

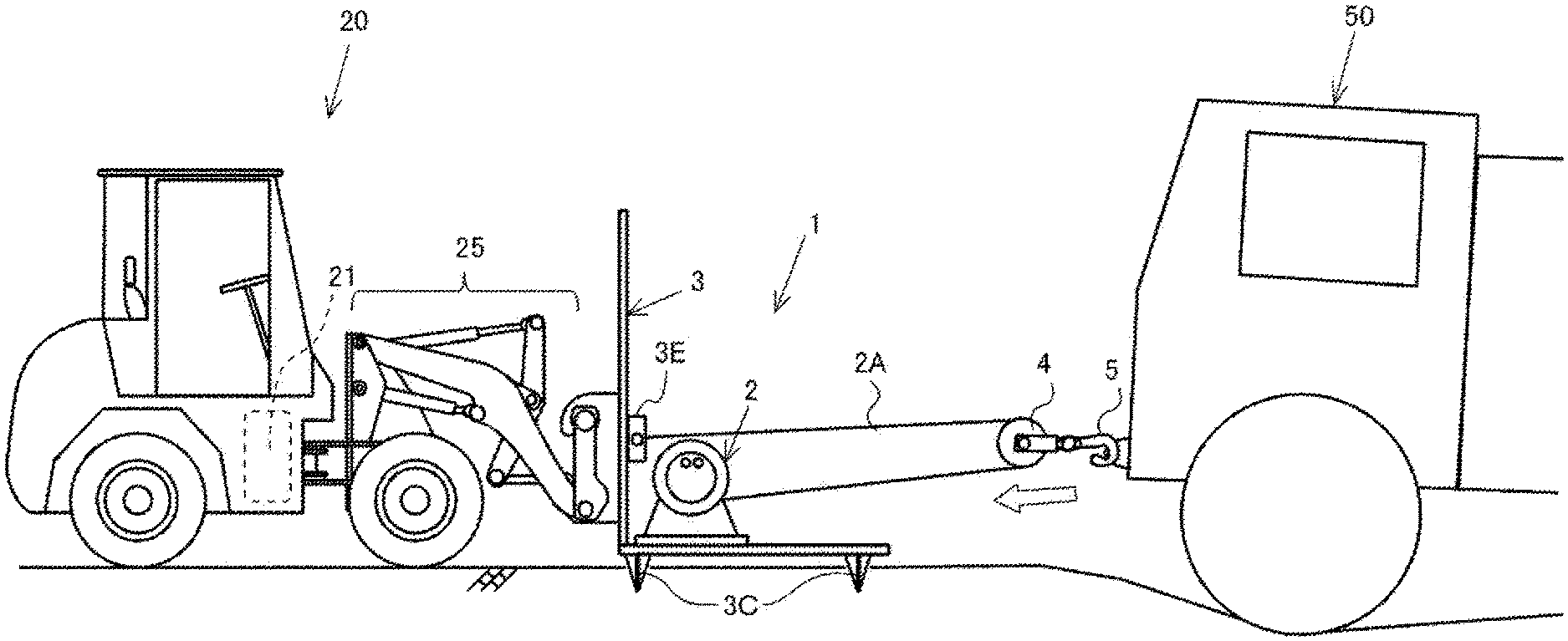

Provided is a tow attachment that can be installed on a work machine as an attachment for towing a tow object. This tow attachment installable as a work machine attachment for towing a tow object is provided with: a body frame; a winch fixed on the body frame; a coupling part which is provided to the body frame so as to be mounted on the work machine; a movable pulley part which is equipped with a hook for coupling to the tow object and at least one movable pulley; and a wire fixing part which is provided to the body frame in order to fix a leading end of a wire that is let out of the winch, wherein the wire is applied on the movable pulley of the movable pulley part between the winch and the wire fixing part.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2018 Application Filing Year
- B60D Class
- 288 Applications Filed
- 215 Patents Issued To-Date
- 74.66 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B60D Class
- 0 % this patent is cited more than
- 2 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Apr 24, 2027 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Apr 24, 2031 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 24, 2035 |
