Downhole signal receiving and transmitting device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 17, 2023
Grant Date -
Nov 17, 2022
app pub date -
Jun 11, 2021
filing date -
May 14, 2021
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

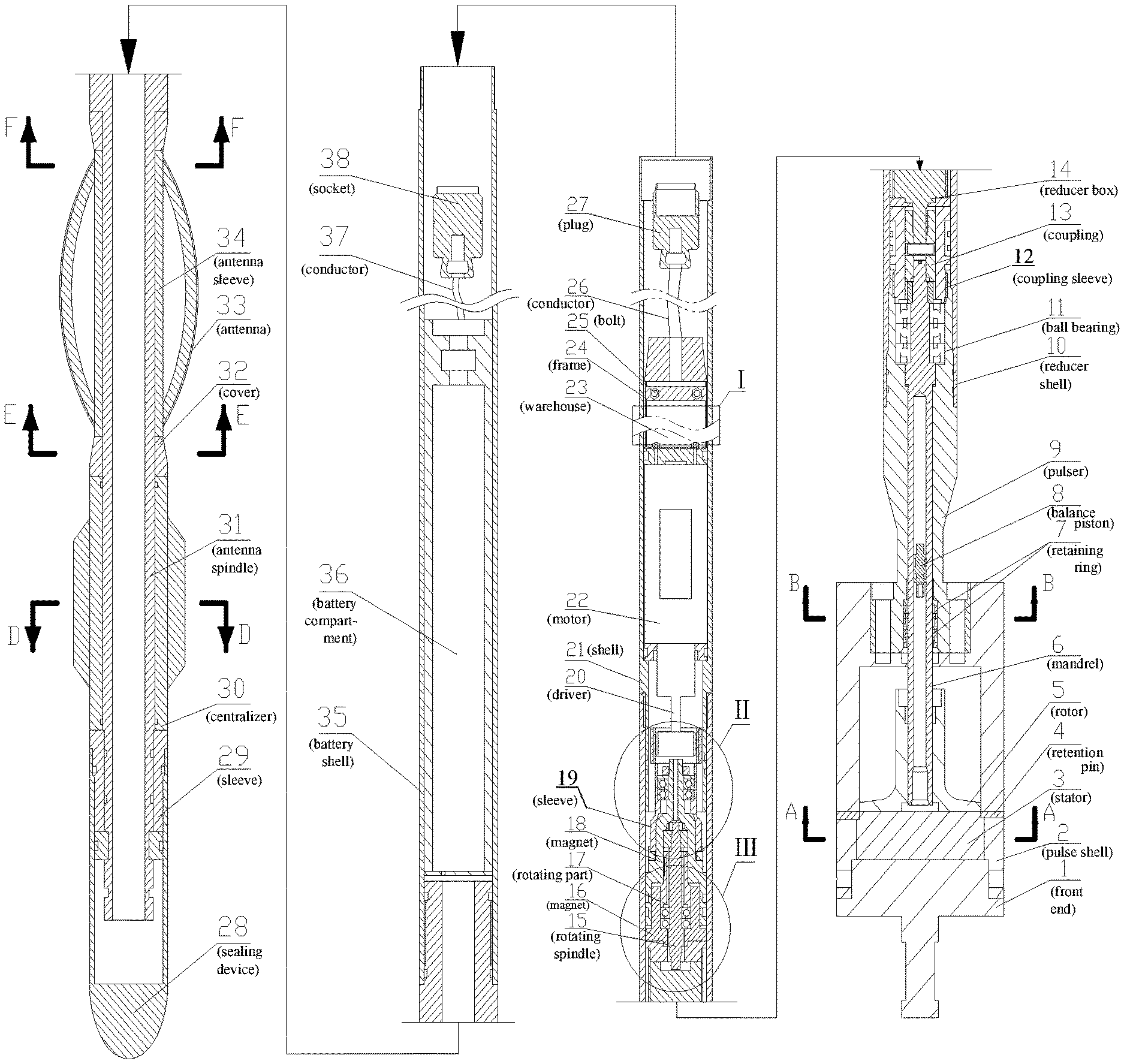

The disclosure relates to petroleum drilling, specifically a downhole signal receiving and transmitting device. The downhole signal receiving and transmitting device includes a receiving part, a control device, a mechanical assembly and a transmitting mechanism. The receiving part receives a signal transmitted by a lower end instrument, and the control device process the received signal, controls a motor to drive a rotating sleeve, and the mechanical assembly performs work. The mechanical assembly drives a mandrel to rotate a rotor continuously and regularly. When rotating, the flow area of the rotor and a stator changes to produce continuous pulses. The pressure waveform changes are monitored on the ground, and the measurement data are calculated by decoding. The device can obtain engineering parameters and geological parameters in the downhole drilling process in real time, which helps engineers to adjust the drilling trajectory and related parameters, and realize real-time measurement and control while drilling.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2021 Application Filing Year
- H04B Class
- 9122 Applications Filed
- 5316 Patents Issued To-Date
- 58.28 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H04B Class
- 0 % this patent is cited more than
- 2 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Apr 17, 2027 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Apr 17, 2031 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 17, 2035 |
