Method and apparatus for folding and opening-up wipes
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 17, 2023
Grant Date -
Jul 8, 2021
app pub date -
Mar 24, 2021
filing date -
Dec 18, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

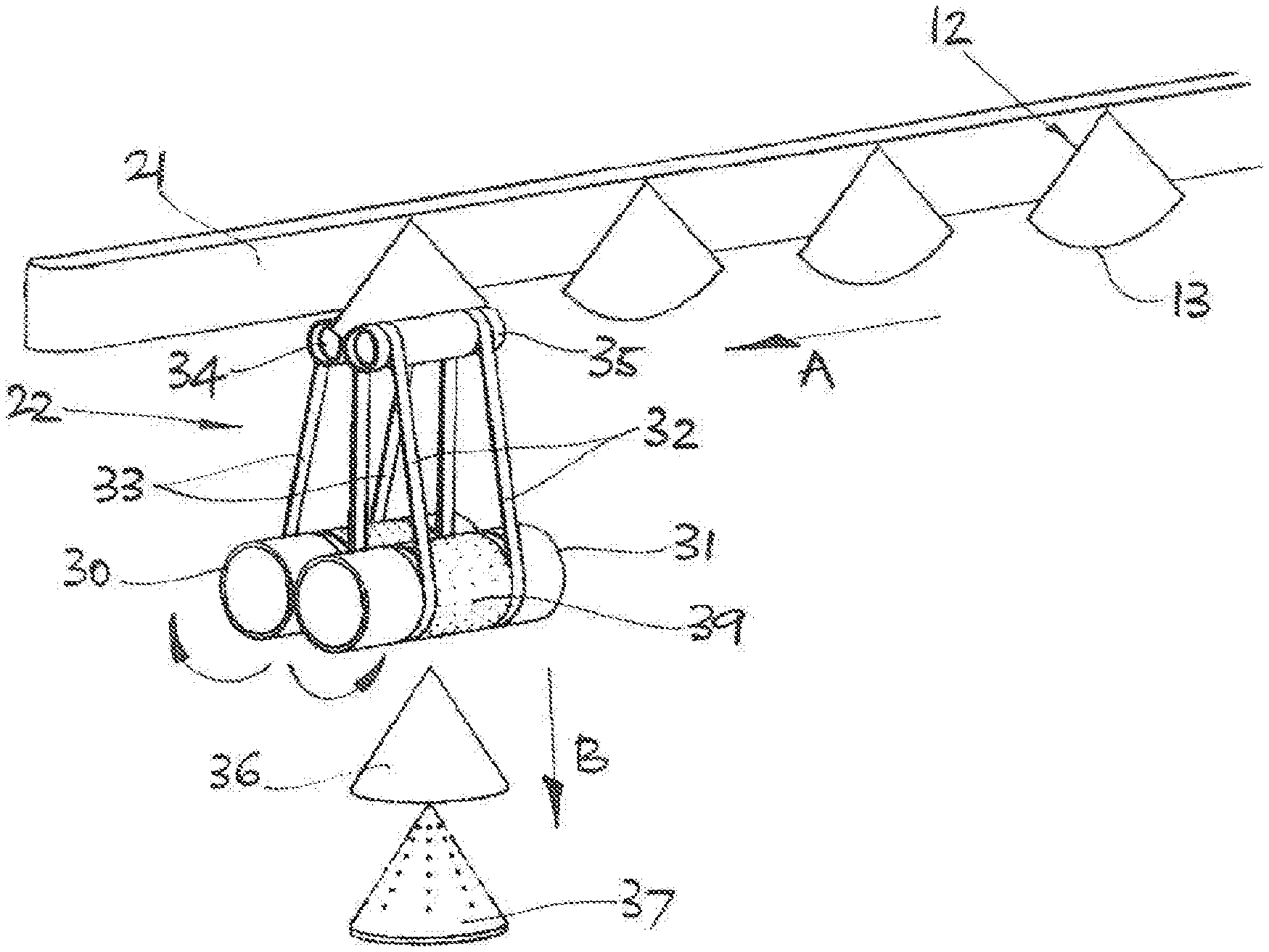

Apparatus is provided for manufacturing a wipe in a three-dimensional form out of an essentially flat piece of material. The apparatus produces a blank of essentially flat planar form with a pleat folded on each side. The folded blanks are fed by a conveyor belt to an opening station. The opening station comprises a pair of movable pinch rollers which selectively grab individual blanks from the conveyor belt and feed them via belts to a pair of counter-rotating drums. The blanks are ejected from the drums, which partially opens them up in the process. The partially open blanks are fed onto a shaped former, where the final process of forming the wipe into its chosen three-dimensional form is completed.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2021 Application Filing Year
- B31F Class
- 74 Applications Filed
- 41 Patents Issued To-Date
- 55.41 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B31F Class
- 0 % this patent is cited more than
- 2 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Apr 17, 2027 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Apr 17, 2031 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 17, 2035 |
