Multi-ignition coil control system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 10, 2023
Grant Date -
Mar 9, 2023
app pub date -
Jun 13, 2022
filing date -
Sep 9, 2021
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

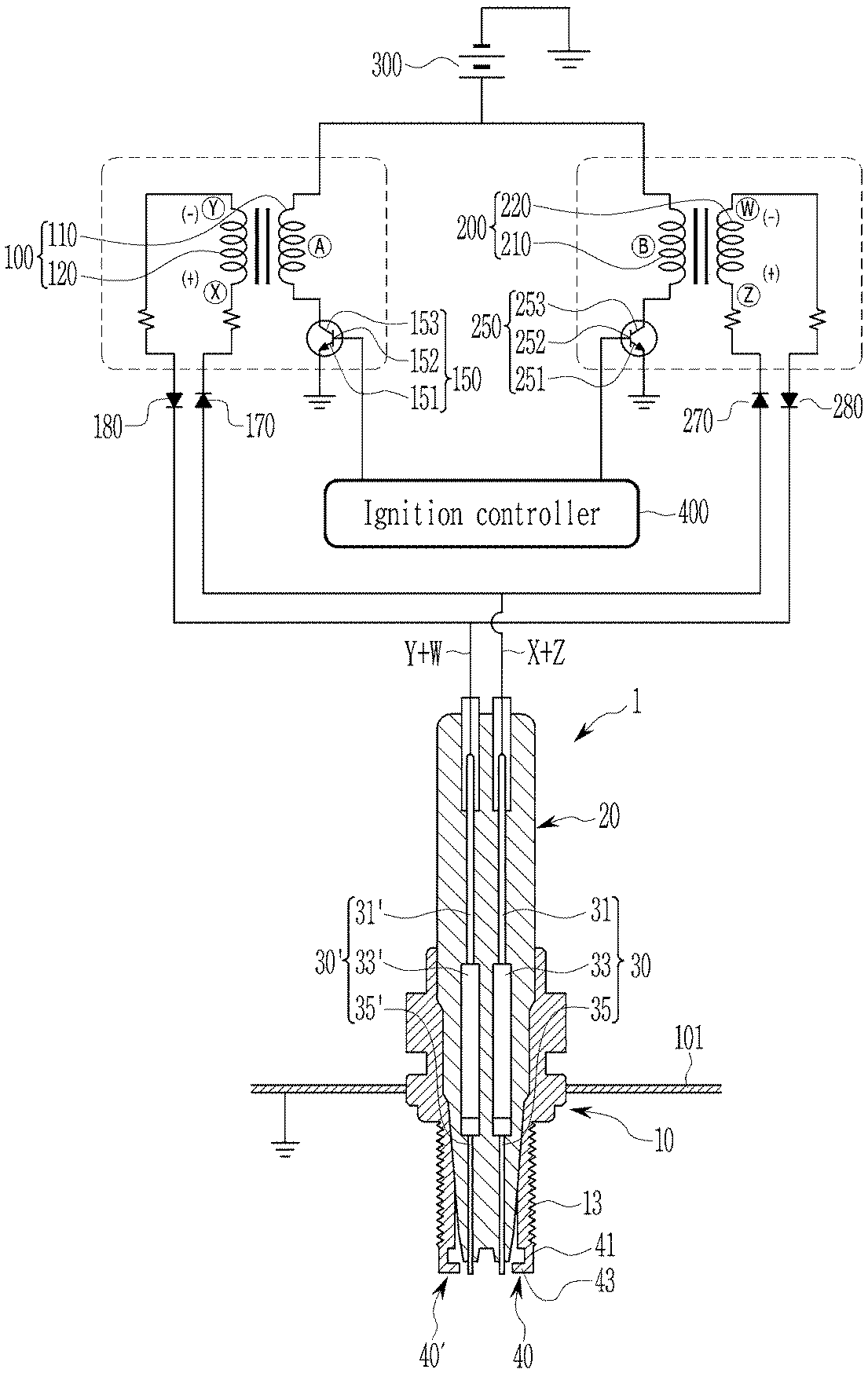

A multi-ignition coil control system includes a spark plug including first and second center electrodes, and first and second ground electrodes spaced apart from the center electrodes by a predetermined distance, a first ignition coil including a primary coil, and a secondary coil in which a discharge current is generated by electromagnetic induction with the primary coil, and a second ignition coil including a primary coil, and a secondary coil in which a discharge current is generated by electromagnetic induction with the primary coil, wherein one end of the secondary coil of the first ignition coil and one end of the secondary coil of the second ignition coil are electrically connected to one of the center electrodes, and the other end of the secondary coil of the first ignition coil and the other end of the secondary coil of the second ignition coil are electrically connected to the other of the center electrodes.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2022 Application Filing Year
- F02P Class
- 85 Applications Filed
- 52 Patents Issued To-Date
- 61.18 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F02P Class
- 0 % this patent is cited more than
- 2 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Apr 10, 2027 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Apr 10, 2031 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 10, 2035 |
