Electronic apparatus and method of manufacturing the same
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 10, 2023
Grant Date -
Aug 19, 2021
app pub date -
Nov 5, 2020
filing date -
Feb 13, 2020
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

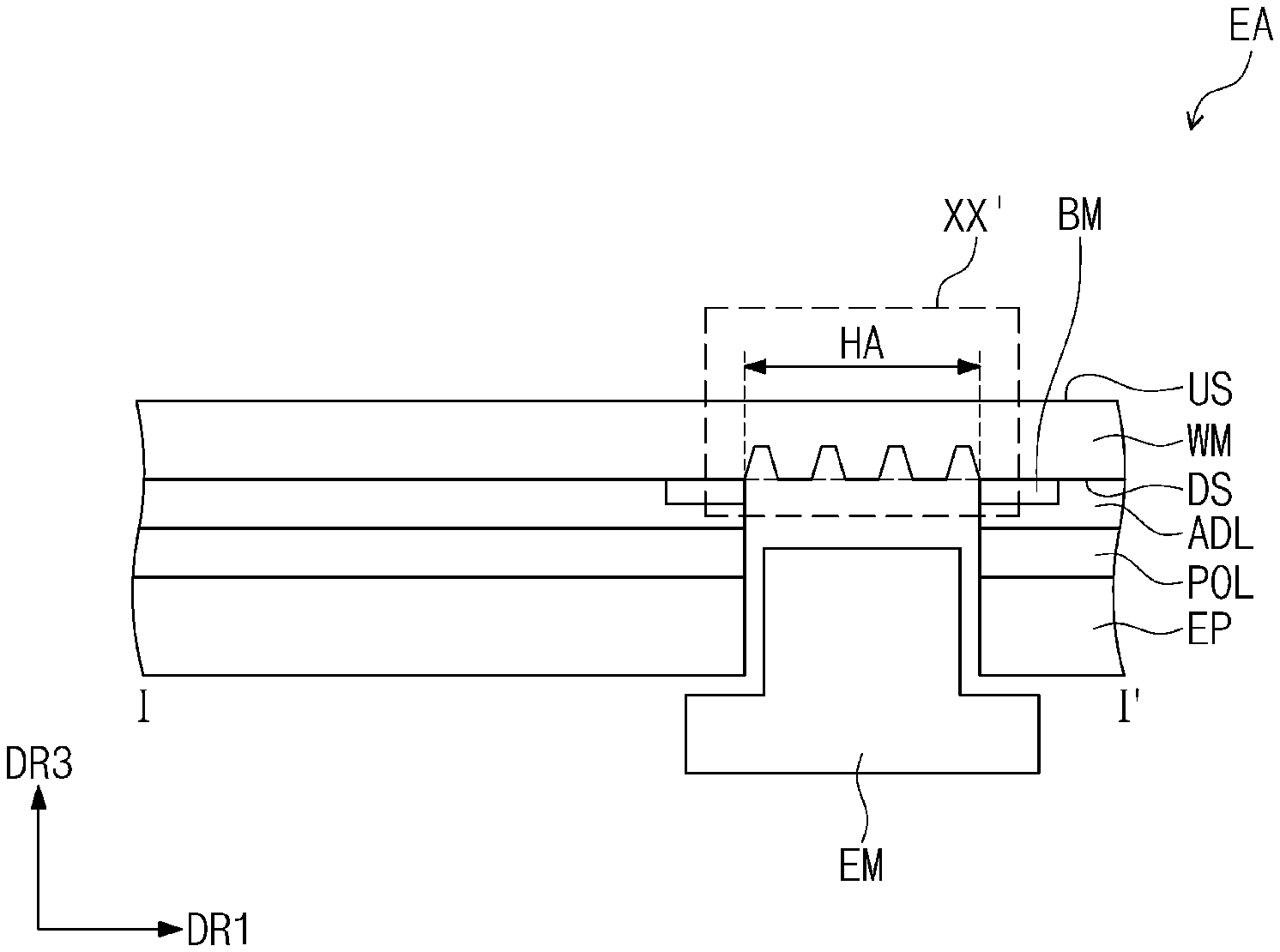

A method of manufacturing an electronic apparatus includes the steps of: providing an electronic panel defining a through hole; providing an electronic module having at least a portion thereof received in the through hole; providing a protective member having a first surface adjacent to the electronic panel, a hole area overlapping the through hole, a peripheral area surrounding the hole area, and a second surface facing the first surface and spaced apart from the electronic module, the providing of the protective member including: providing an unfinished protective member; attaching a film to the peripheral area; and forming a generally concave-convex pattern by contacting an acid solution with the hole area.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| KR | A | KR20210103629 | Feb 13, 2020 |
| CN | A | CN113257858 | Nov 26, 2020 |
| US | A1 | US20240004427 | Sep 18, 2023 |
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H01L Class
- 0 % this patent is cited more than
- 2 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Apr 10, 2027 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Apr 10, 2031 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 10, 2035 |
