Method and apparatus for applying a corrosion-resistant coating to fasteners
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 10, 2023
Grant Date -
Sep 24, 2020
app pub date -
Jun 9, 2020
filing date -
Jul 28, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

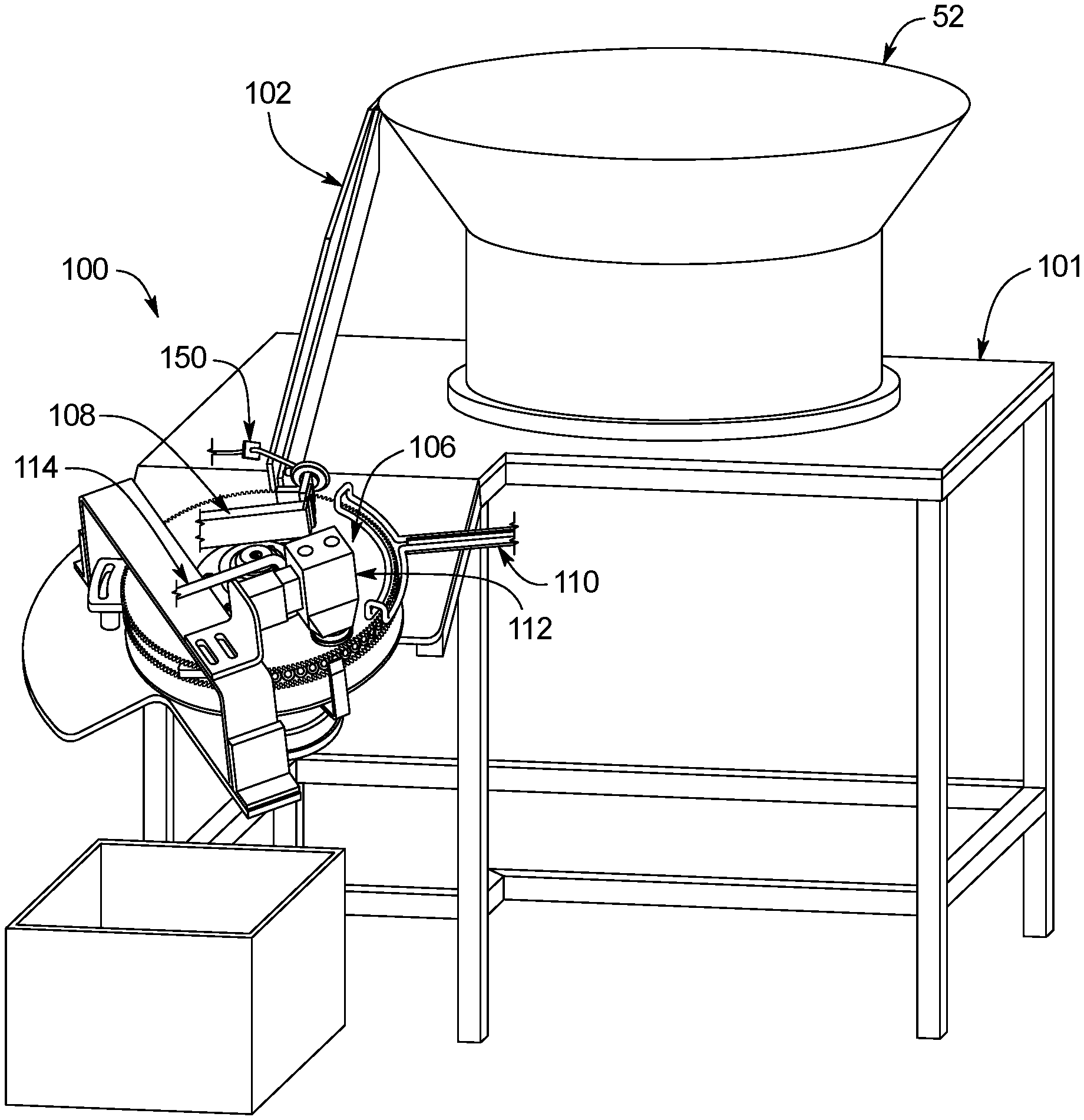

A method of applying a corrosion-resistant coating to a fastener that includes preheating an area of the fastener to be coated to elevate a temperature of the area and spraying the preheated area of the fastener with a molten or semi-molten metal. In one embodiment, a corrosion-resistant coating applicator includes a support structure, a rotatable slotted fastener conveyer supported by the support structure, a feeder configured to feed fasteners to the rotatable slotted fastener conveyer, a fastener aligner configured to make head portions of the fasteners aligned with each other, a heater configured to heat head portions of the fasteners as the fasteners are being conveyed by the slotted fastener conveyer, and a sprayer configured to apply a corrosion-resistant coating to the heated head portions of the fasteners being conveyed by the slotted fastener conveyer. The present disclosure also provides corrosion-resistant coated fasteners made using the coating methods and/or coating apparatus.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date | Type | Sub-Type |
|---|
International Classification(s)
- C23C:COATING METALLIC MATERIAL; COATING MATERIAL WITH M....
- C25D:PROCESSES FOR THE ELECTROLYTIC OR ELECTROPHORETIC ....
- B05C:APPARATUS FOR APPLYING LIQUIDS OR OTHER FLUENT MAT....
- B05B:SPRAYING APPARATUS; ATOMISING APPARATUS; NOZZLES
- F16B:DEVICES FOR FASTENING OR SECURING CONSTRUCTIONAL E....
- B21G:MAKING NEEDLES, PINS, OR NAILS
