3D nanochannel interleaved devices
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 10, 2023
Grant Date -
Jun 10, 2021
app pub date -
Dec 5, 2019
filing date -
Dec 5, 2019
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

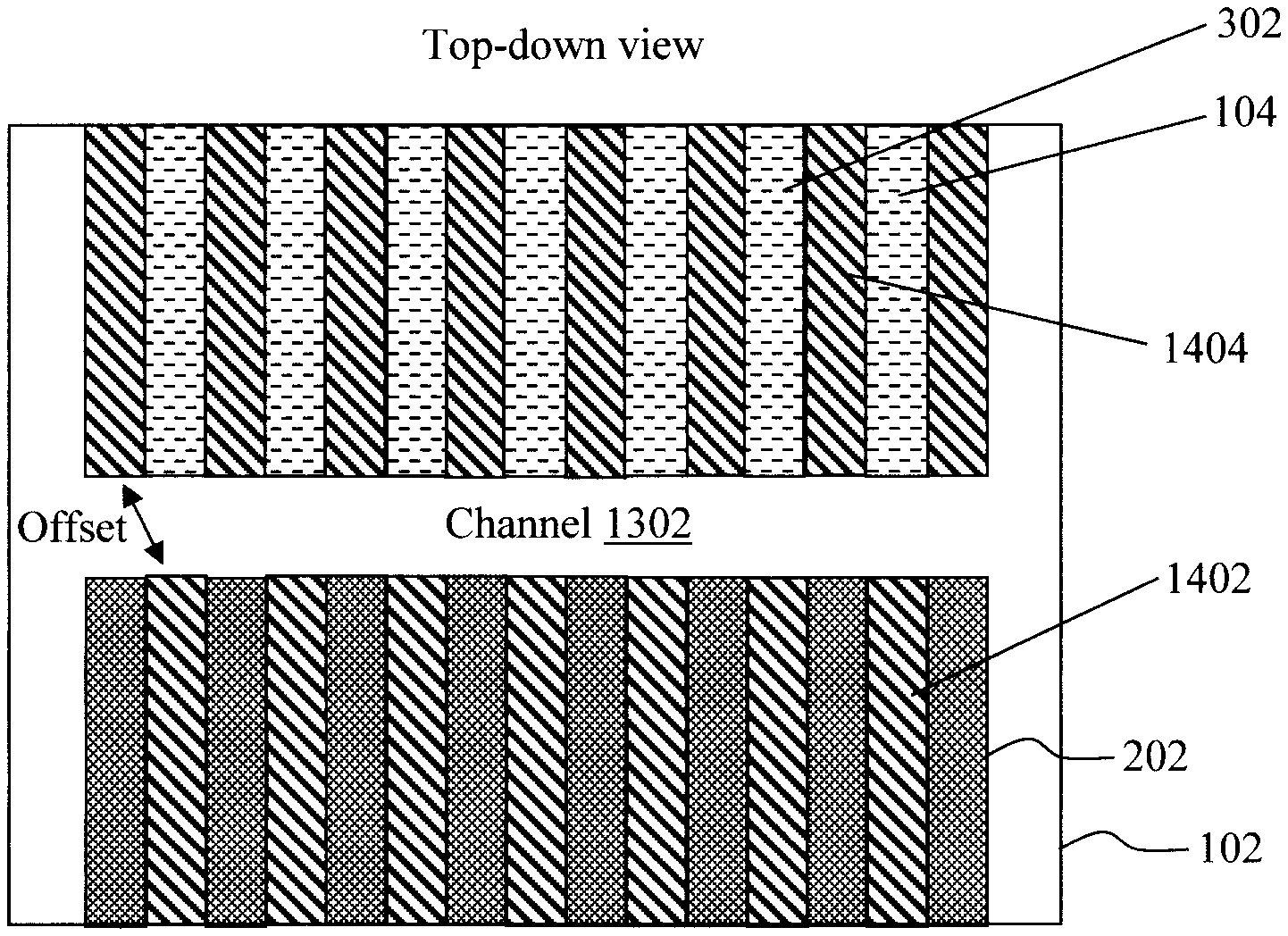

3D nanochannel interleaved devices for molecular manipulation are provided. In one aspect, a method of forming a device includes: forming a pattern on a substrate of alternating mandrels and spacers alongside the mandrels; selectively removing the mandrels from a front portion of the pattern forming gaps between the spacers; selectively removing the spacers from a back portion of the pattern forming gaps between the mandrels; filling i) the gaps between the spacers with a conductor to form first electrodes and ii) the gaps between the mandrels with the conductor to form second electrodes; and etching the mandrels and the spacers in a central portion of the pattern to form a channel (e.g., a nanochannel) between the first electrodes and the second electrodes, wherein the first electrodes and the second electrodes are offset from one another across the channel, i.e., interleaved. A device formed by the method is also provided.
