Ignition coil for internal combustion engine
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 3, 2023
Grant Date -
N/A
app pub date -
Sep 8, 2021
filing date -
Sep 10, 2020
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

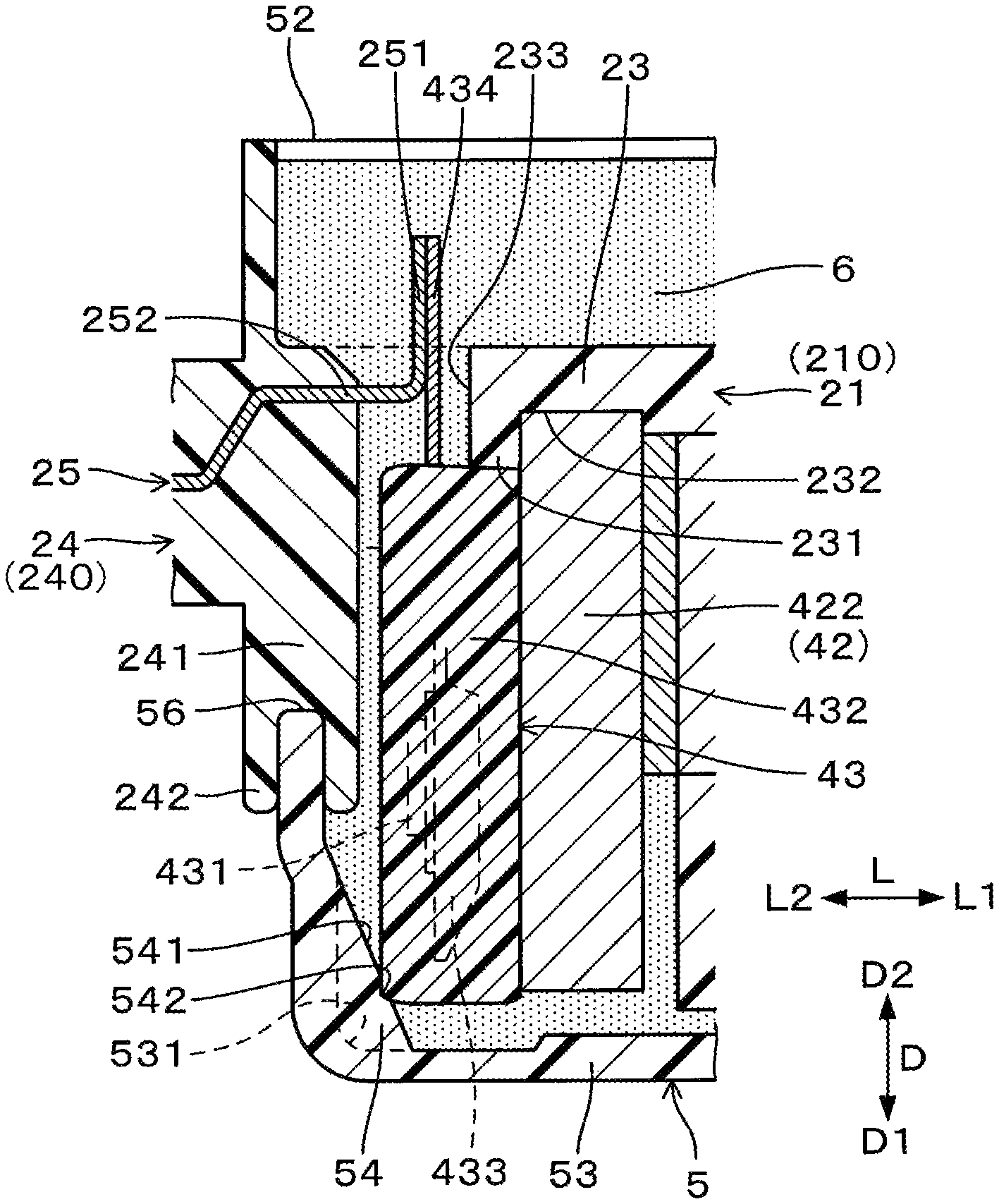

An ignition coil includes a primary coil, a secondary coil, a center core, an outer core, an igniter, a coil case and an electrically-insulative fixation resin. On an interior surface of the coil case on a bottom part side in a mounting direction, there is formed a case-side rib to protrude from the interior surface of the coil case to a high-voltage side in an axial direction. The case-side rib has a taper shape such that the protruding amount of the case-side rib to the high-voltage side in the axial direction increases in the mounting direction toward the bottom part side. The case-side rib is arranged to abut a corner portion of the igniter on the bottom part side in the mounting direction and on a low-voltage side in the axial direction and thereby press the igniter against the outer core.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F02P Class
- 0 % this patent is cited more than
- 2 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Apr 3, 2027 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Apr 3, 2031 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 3, 2035 |
