Wheel
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 3, 2023
Grant Date -
Jul 16, 2020
app pub date -
Mar 31, 2020
filing date -
Jun 4, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

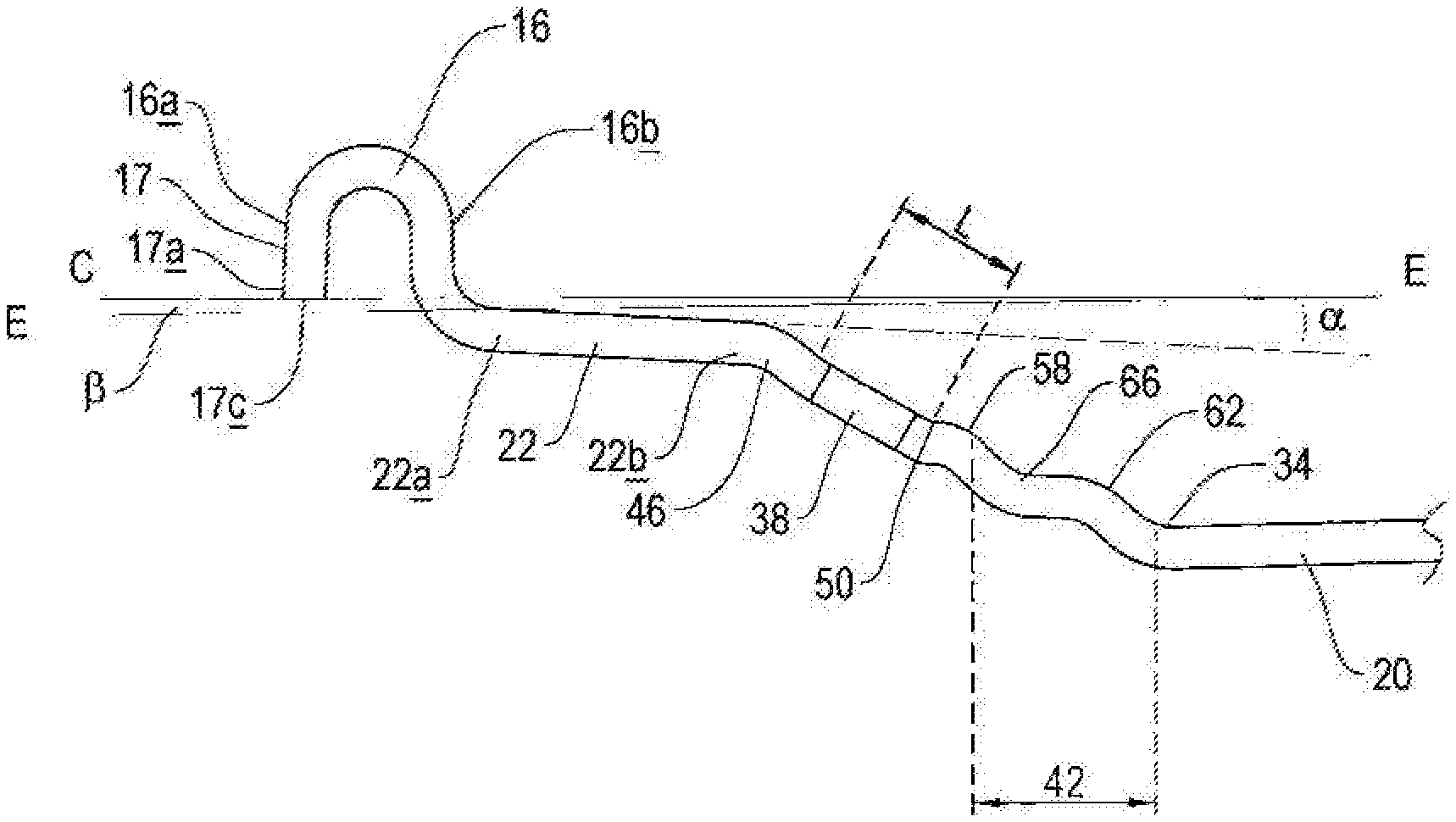

A wheel includes a rim having inner and outer flanges. A first end of each flange is positioned axially outwardly relative to the second end. A pair of bead seats are positioned one adjacent each flange, and each has an axially outer end connected to a second end of its flange by a flange connecting portion, and an axially inner end connected to one of a pair of side parts. Each side part is positioned between a central well and one of the inner and outer flanges, and connected to the well by a well connecting portion. The outer end of each bead seat is positioned radially outwardly relative to bead seat inner end. At least one of the flanges includes an extended portion which extends radially inwardly, such that a free end of the extended portion is positioned radially inwardly relative to the first end of the respective flange.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2020 Application Filing Year
- B60B Class
- 450 Applications Filed
- 270 Patents Issued To-Date
- 60 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B60B Class
- 0 % this patent is cited more than
- 2 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Apr 3, 2027 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Apr 3, 2031 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 3, 2035 |
