Motor, actuator, and manufacturing method of rotor provided at motor
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 26, 2023
Grant Date -
Sep 30, 2021
app pub date -
Mar 12, 2021
filing date -
Mar 26, 2020
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

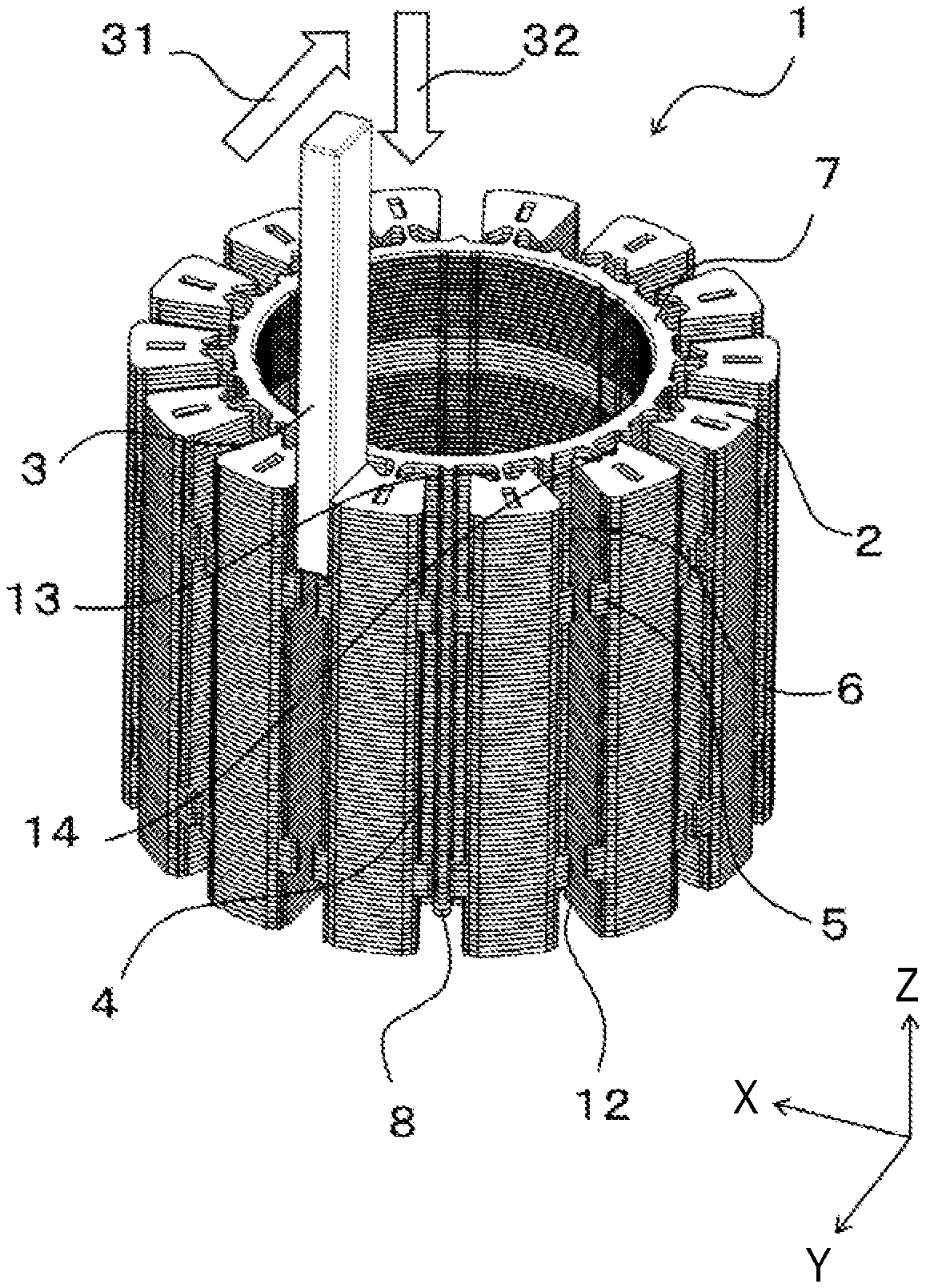

A motor includes a rotor configured to rotate with a shaft. The rotor includes a plurality of yoke portions and a plurality of holding portions each corresponding to a space portion provided between the adjacent yoke portions and configured to hold therein a magnet. At least one of the plurality of yoke portions includes a tab portion extending towards the holding portion and configured to hold the magnet held in the holding portion. The holding portion includes an insertion space provided between a first end portion of the yoke portion in an axial direction of the shaft and the tab portion. The insertion space allows the magnet to be inserted into the insertion space towards an inner side in a radial direction of the shaft.
