Laser range finder having adjustable beam splitting optic and method for adjusting
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 26, 2023
Grant Date -
Jun 22, 2023
app pub date -
Dec 19, 2022
filing date -
Dec 21, 2021
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

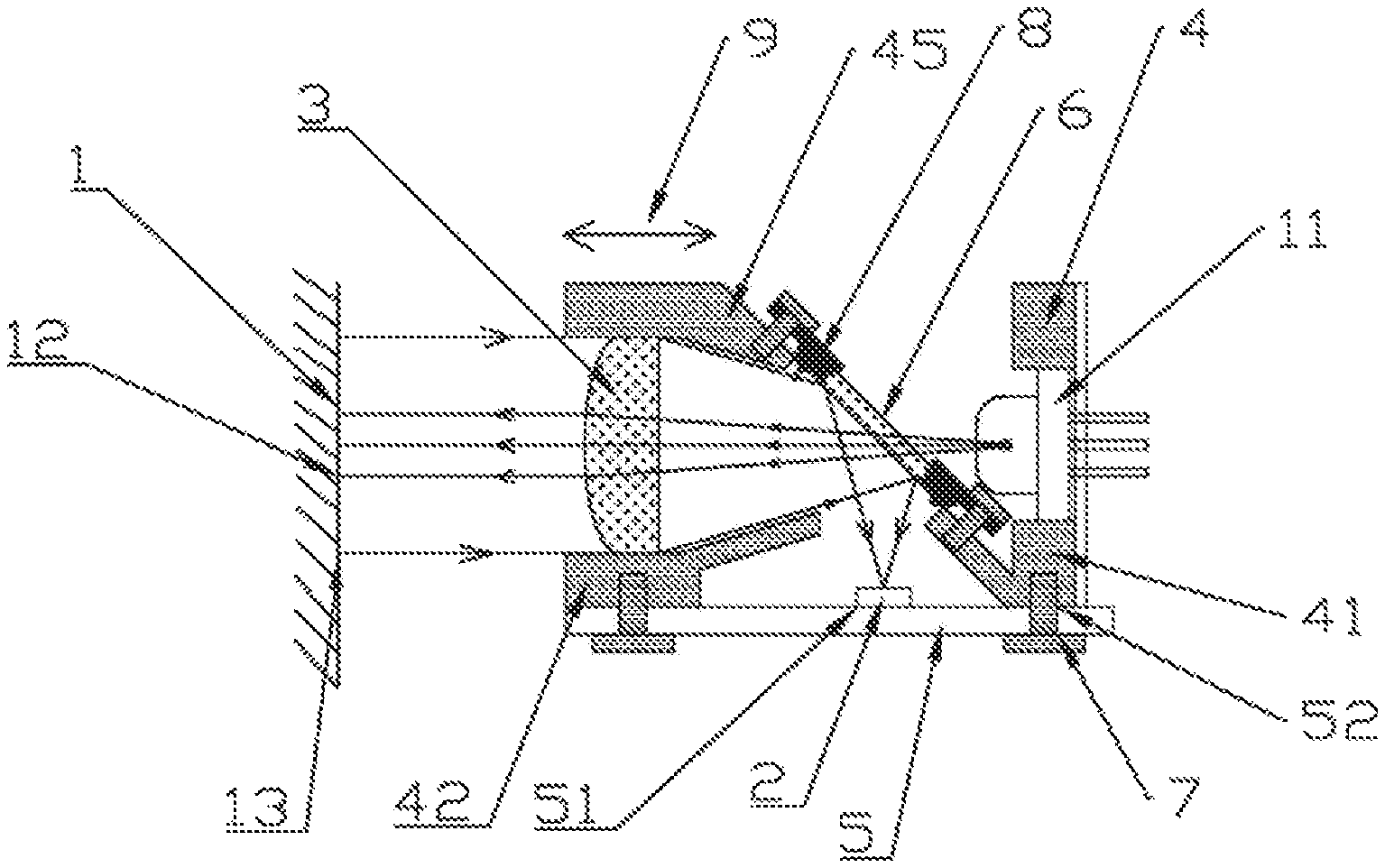

A laser range finder and method for adjusting, comprising a beam source, a photodetector, at least one beam shaping optic, an optic bracket, a circuit board, a beam splitting optic and a connecting device; the beam source comprises a first electro-optical component for emitting a laser beam, the photodetector comprises a second electro-optical component for receiving a received beam reflected and/or scattered by a target object along an optical axis, the beam shaping optic is configured to form a laser beam and/or a receiving beam, the optic bracket comprises a first accommodating seat for fixing the first electro-optical component and a second accommodating seat for fixing the at least one beam shaping optic, the circuit board comprises an another seat for fixing the second electro-optical component, the connecting device is configured to connect the optic bracket with the circuit board; the beam splitting optic is arranged on an adjustment bracket.
