Spray heads for use with desuperheaters and desuperheaters including such spray heads
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 26, 2023
Grant Date -
Sep 22, 2022
app pub date -
Jun 6, 2022
filing date -
Nov 9, 2018
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

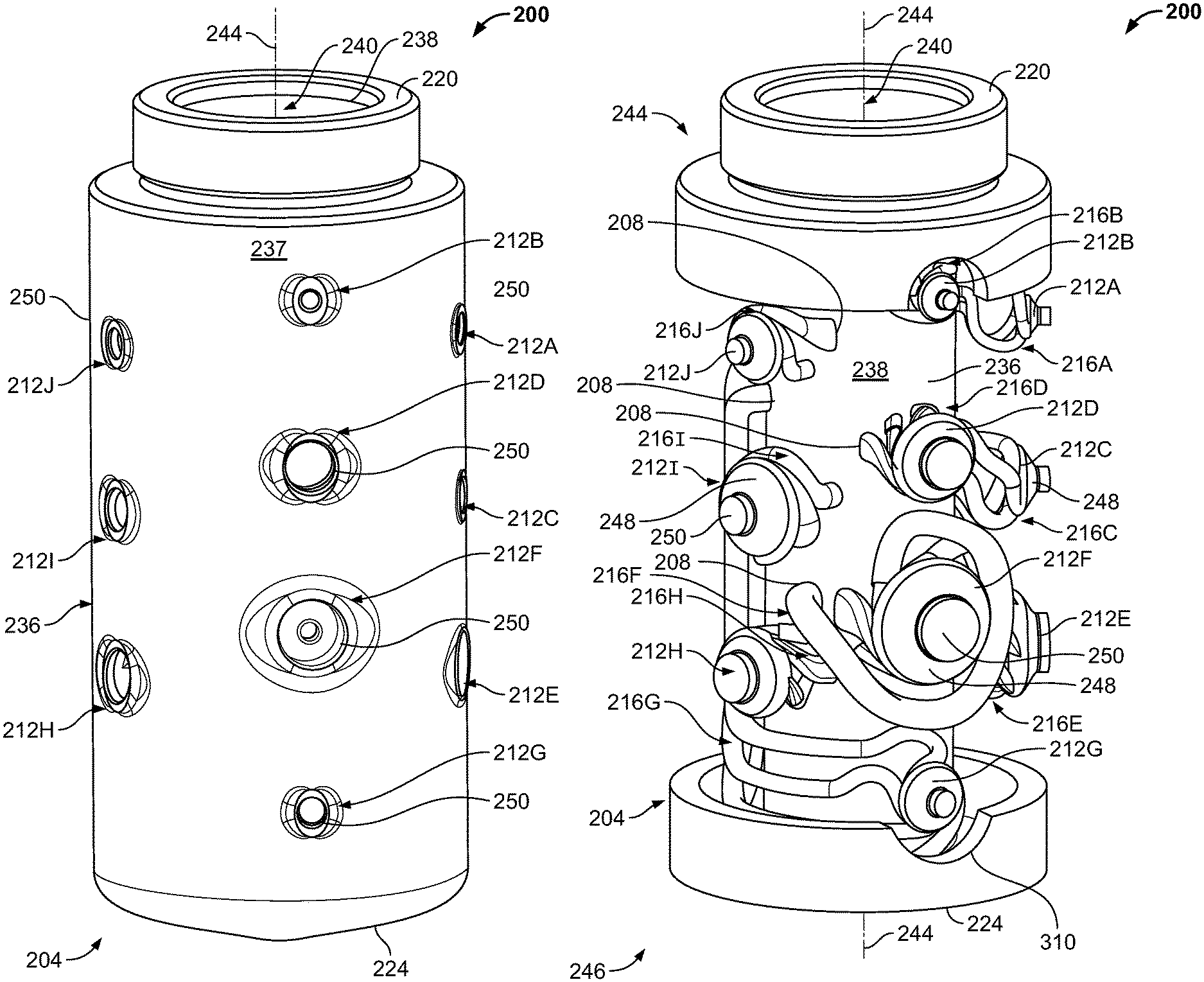

Spray heads for use with desuperheaters and desuperheaters including such spray heads. One example of a spray head includes a main body having an exterior surface and defining a central passage, the main body adapted for connection to a source of fluid, at least one entrance port formed in the main body along the central passage, and at least one spray nozzle arranged adjacent the exterior surface of the main body. The spray head also includes a plurality of flow passages, each of the plurality of flow passages providing fluid communication between the entrance port and an exit opening of the spray nozzle. A first one of the plurality of flow passages follows a first non-linear path and has a first distance, and a second one of the plurality of flow passages follows a second non-linear path and has a second distance different from the first distance.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2022 Application Filing Year
- F22G Class
- 7 Applications Filed
- 2 Patents Issued To-Date
- 28.58 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F22G Class
- 0 % this patent is cited more than
- 2 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Mar 26, 2027 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Mar 26, 2031 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 26, 2035 |
