Group II metal salts in electrolytic leaching of superabrasive materials
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 26, 2023
Grant Date -
N/A
app pub date -
Aug 13, 2020
filing date -
Oct 10, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

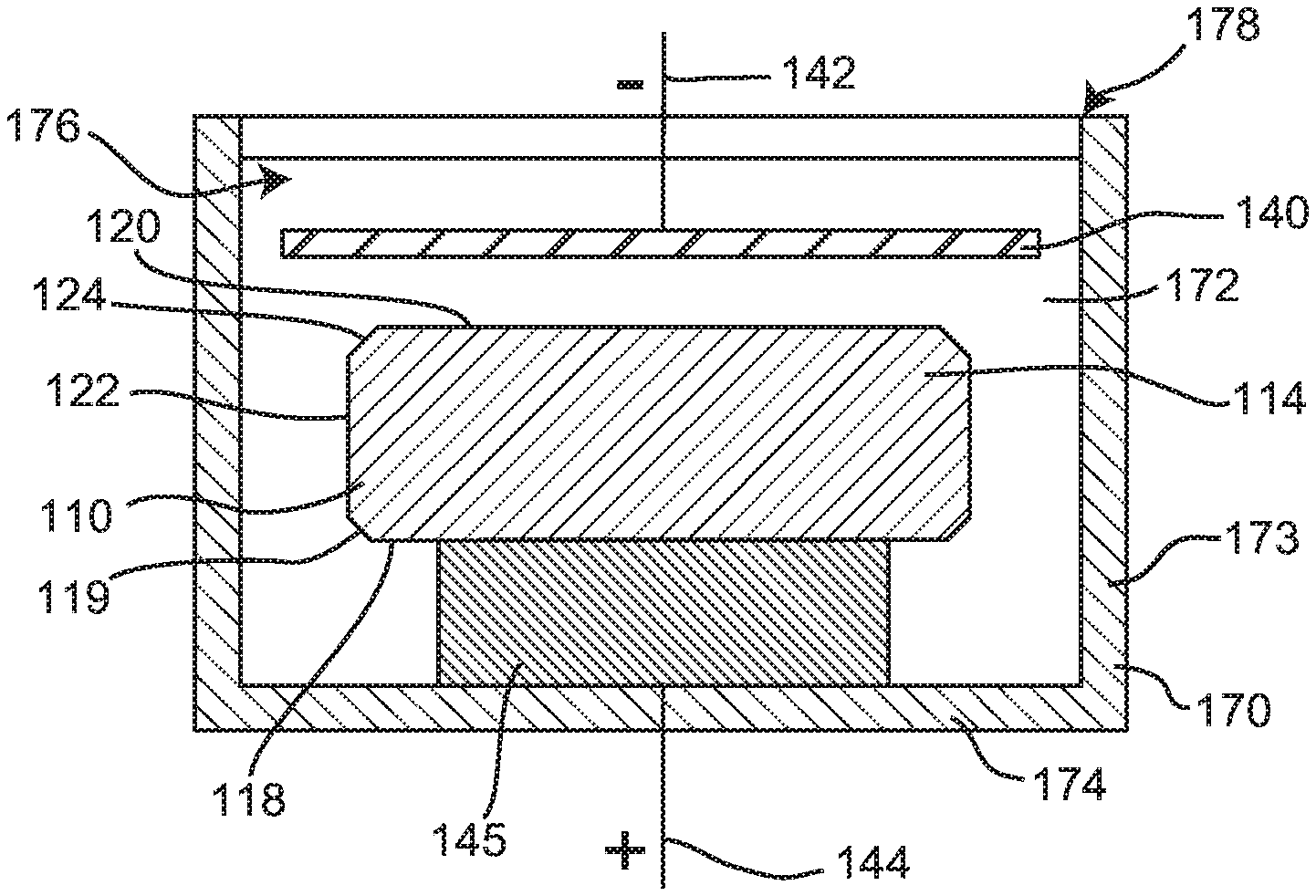

A method of processing a superabrasive element includes providing a superabrasive element including a polycrystalline diamond table that includes a metallic material disposed in interstitial spaces defined within the polycrystalline diamond table. The polycrystalline diamond table includes a superabrasive face and a superabrasive side surface extending around an outer periphery of the superabrasive face. The method also includes leaching the metallic material from at least a volume of the polycrystalline diamond table to produce a leached volume in the polycrystalline diamond table by (1) exposing at least a portion of the polycrystalline diamond table to a processing solution, (2) exposing an electrode to the processing solution, and (3) applying a charge to the electrode such that a voltage is generated between the polycrystalline diamond table and the electrode and the voltage is applied to the processing solution. The method includes the use of an improved processing solution, including an organic acid and a divalent (e.g., Group II) metal salt, to increase the leaching depth.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F16C Class
- 0 % this patent is cited more than
- 2 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Mar 26, 2027 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Mar 26, 2031 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 26, 2035 |
