Vibrating screening system, comprising at least two screening machines arranged in a row
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 26, 2023
Grant Date -
N/A
app pub date -
Jan 28, 2020
filing date -
Jan 31, 2019
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

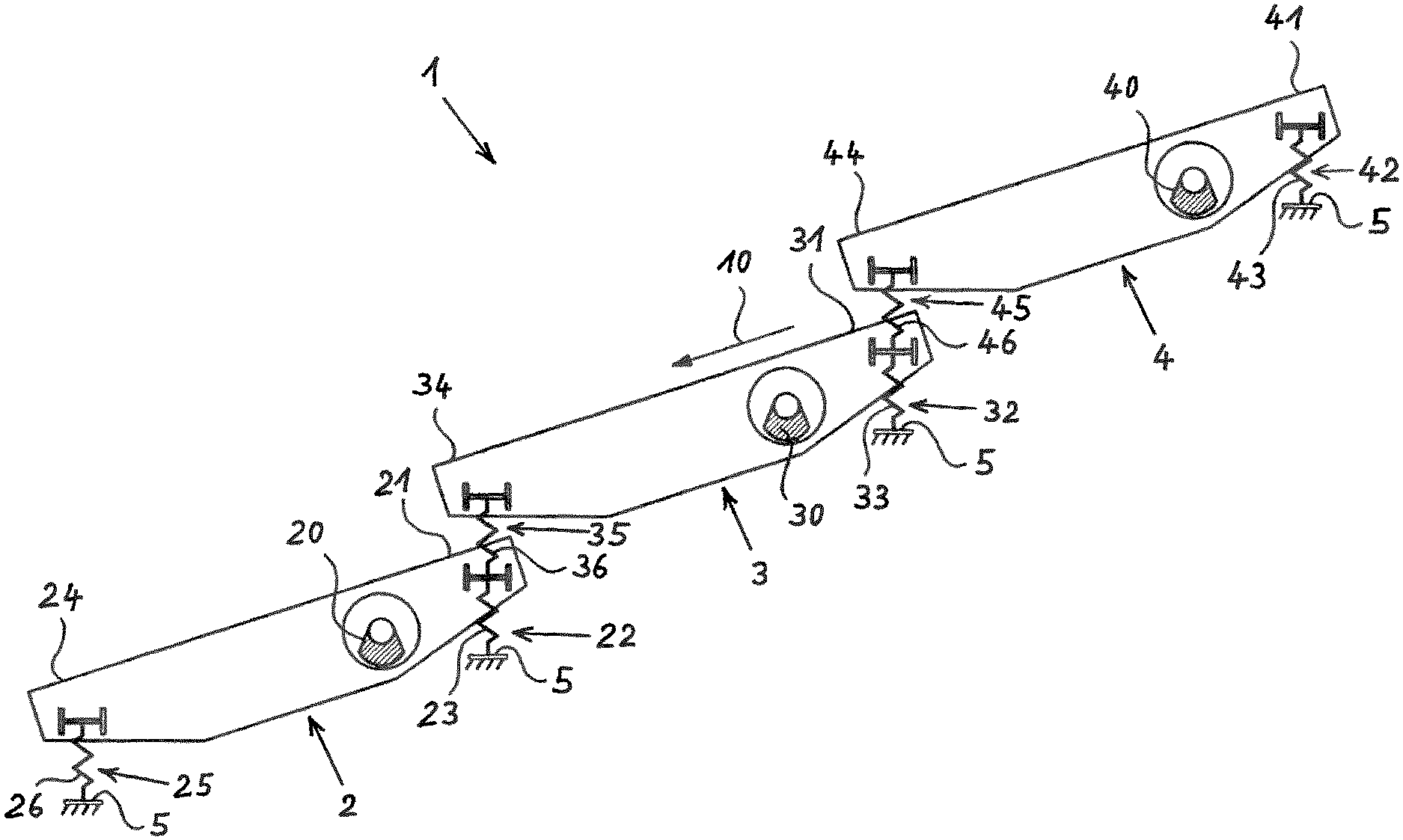

A vibrating screening system, made up of at least two screening machines configured in a row and that can be set into vibration, each screening machine having a resiliently supported screening material feed end and a resiliently supported screening material discharge end. All supports of the last screening machine, in the screening material conveying direction, are supported directly on the supporting surface. The support provided respectively in the region of the screening material feed end of any earlier screening machine in the conveying direction is likewise supported directly on the supporting surface. In each case, the support provided in the region of the screening material discharge end of any such earlier screening machine in the conveying direction is supported in the region of the screening material feed end of the screening machine that is subsequent in the screening material conveying direction, on this subsequent machine.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2020 Application Filing Year
- B07B Class
- 160 Applications Filed
- 115 Patents Issued To-Date
- 71.88 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B07B Class
- 0 % this patent is cited more than
- 2 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Mar 26, 2027 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Mar 26, 2031 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 26, 2035 |
