Ignition coil unit
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 19, 2023
Grant Date -
Jan 5, 2023
app pub date -
Oct 14, 2021
filing date -
Oct 16, 2020
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

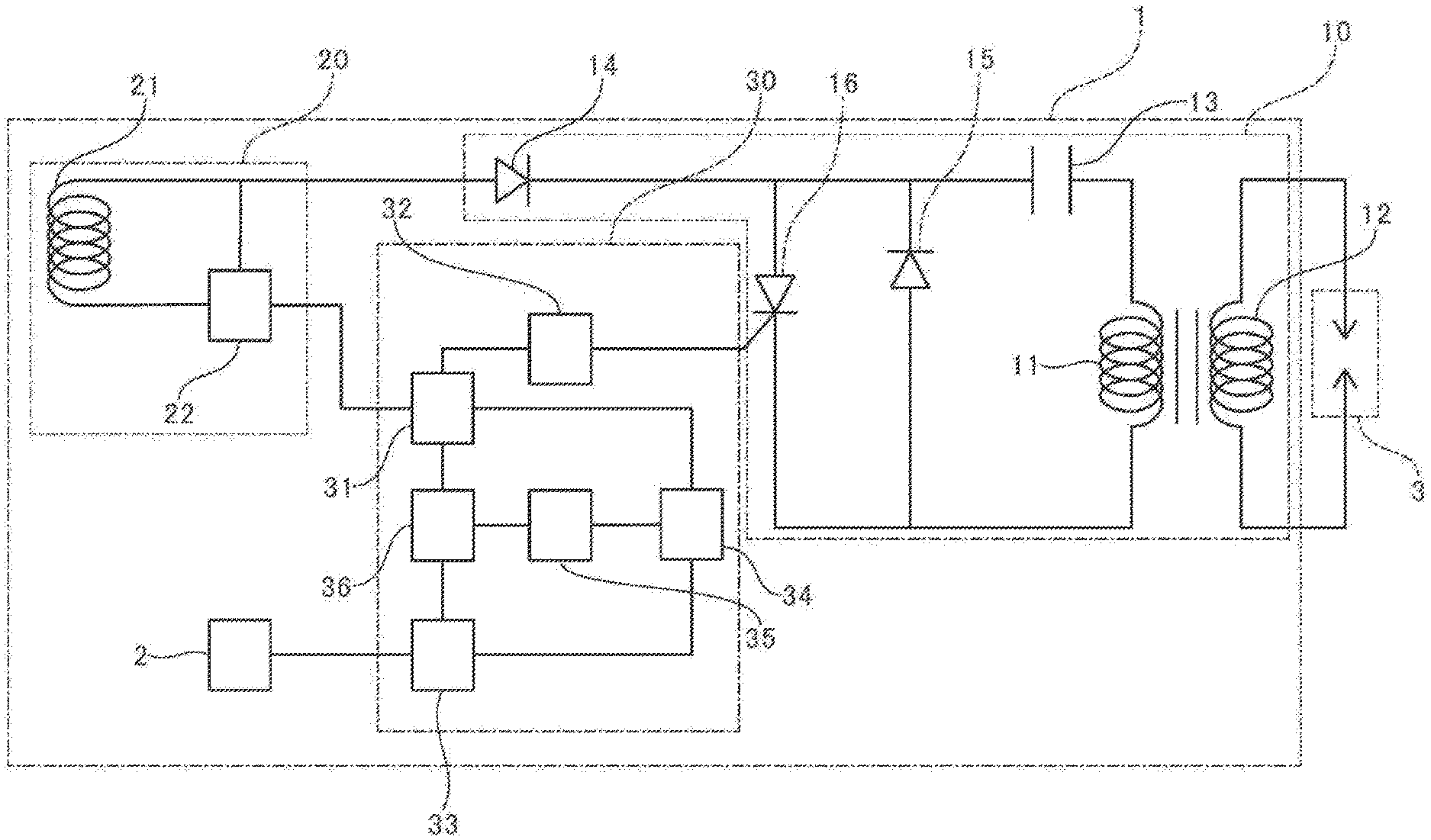

An ignition coil unit includes: an ignition circuit including a primary coil and a secondary coil; a power generator including a generator coil; a controller configured to control an ignition timing of the ignition circuit by an input signal generated by an induced voltage of the generator coil; and a sensor configured to input load information to the controller. The controller includes a memory configured to store working time information which corresponds to operating information based on the input information and the load information, as matrix data composed of the operating information, the load information and time data.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2021 Application Filing Year
- F02P Class
- 118 Applications Filed
- 79 Patents Issued To-Date
- 66.95 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F02P Class
- 0 % this patent is cited more than
- 2 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Mar 19, 2027 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Mar 19, 2031 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 19, 2035 |
