Wall mountable bracket assembly
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 19, 2023
Grant Date -
N/A
app pub date -
Nov 4, 2021
filing date -
Nov 5, 2020
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

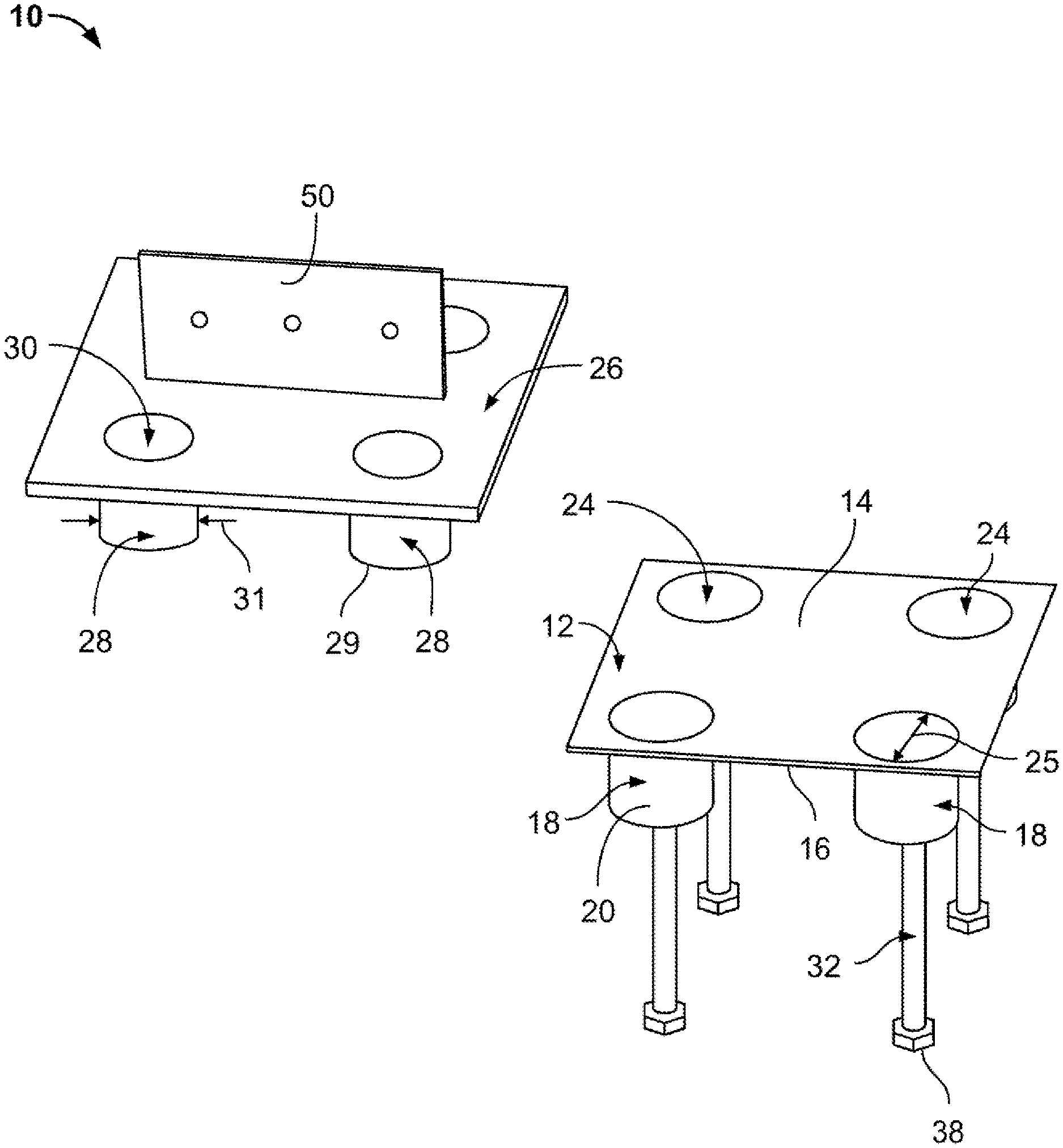

A bracket assembly isolates shear forces from fasteners to realize the full tensile load capability of the fasteners. The fasteners extend from a base plate and are embedded within a structure such as a poured concrete wall. Receptacles defined by the base plate receive bosses which extend from a mounting plate which overlies the base plate. The fasteners also retain the mounting plate to the base plate. Shear forces applied in the plane of the mounting plate are reacted between the bosses and the receptacles, the fasteners being isolated from the shear forces using oversized holes in the mounting plate to ensure that the fasteners experience primarily tensile loads.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F16B Class
- 0 % this patent is cited more than
- 2 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Mar 19, 2027 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Mar 19, 2031 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 19, 2035 |
