Resolver signal processing device, drive apparatus, resolver signal processing method, and program

Number of patents in Portfolio can not be more than 2000

United States of America Patent

PATENT NO 11754421
SERIAL NO

17257050

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Loading Importance Indicators... loading....

Abstract

See full text

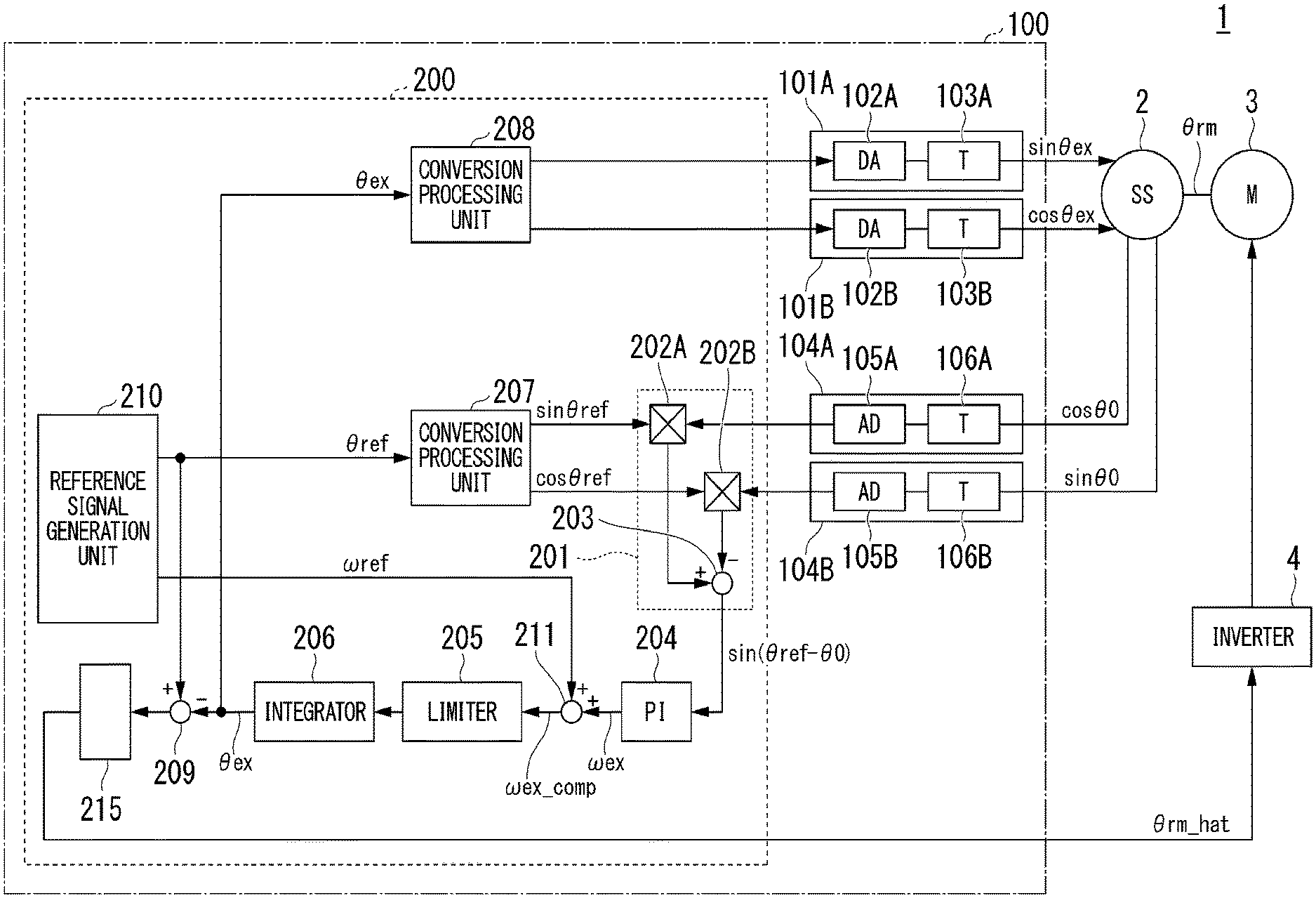

A resolver signal processing device includes a deviation calculation unit, a PI operation unit, and an integration operation unit. The deviation calculation unit calculates a deviation between a first product obtained by multiplying a signal of phase A by a cosine value based on a reference phase θref and a second product obtained by multiplying a signal of phase B by a sine value based on the reference phase θref. The PI operation unit carries out a proportional integration operation which includes a first integration operation and is defined to converge the deviation on zero on the basis of the deviation. The integration operation unit carries out a second integration operation of integrating a value generated from a result of the proportional integration operation and outputs a result of the second integration operation as phase information of the resolver.
