Headlight module and headlight device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 12, 2023
Grant Date -
N/A
app pub date -
Nov 19, 2021
filing date -
Jul 8, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

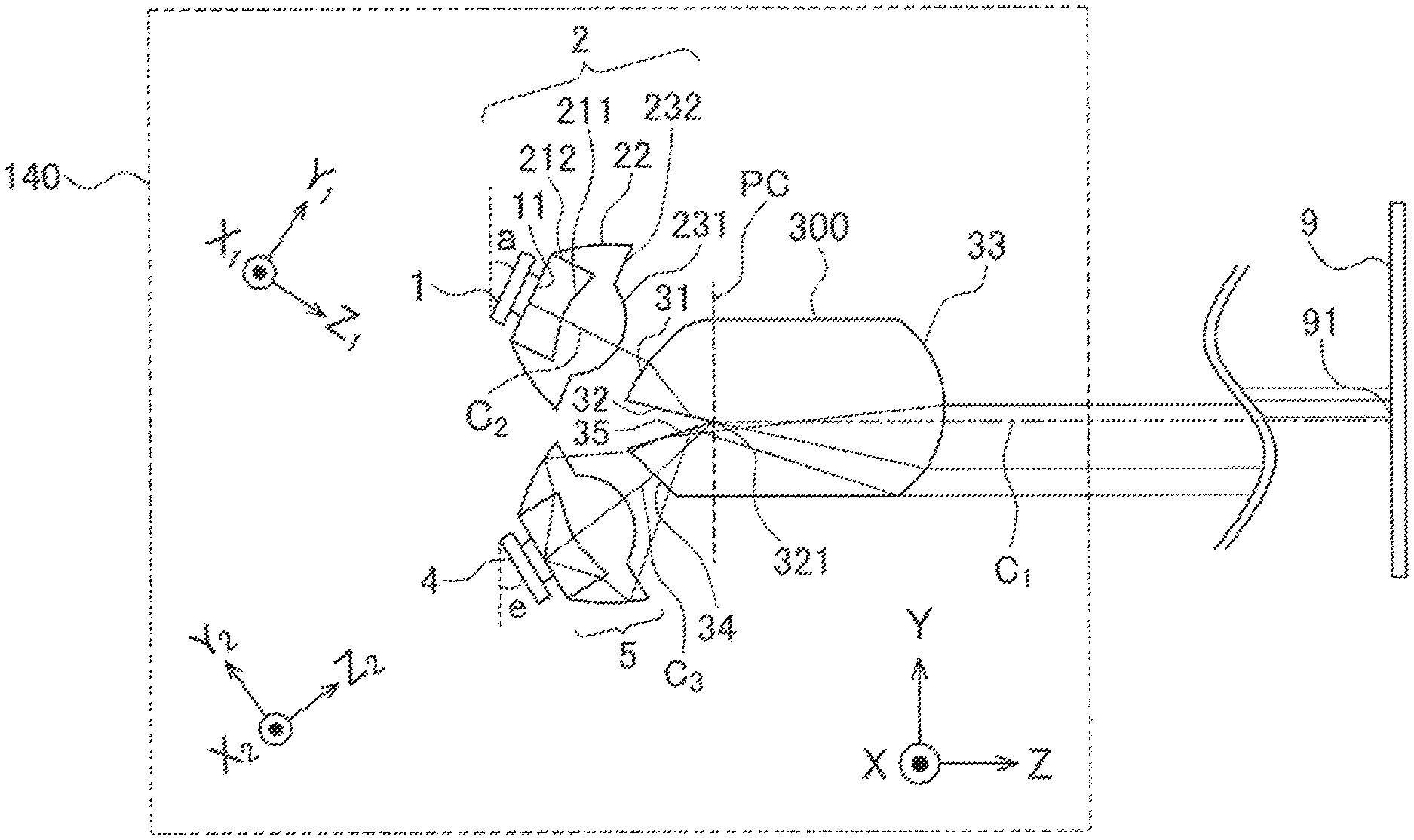

A headlight module includes: a light source for emitting light; a condensing optical element for concentrating the light; and an optical element including an incident surface for receiving the concentrated light, a reflecting surface for reflecting the received light, and an emitting surface for emitting the reflected light. The condensing optical element changes a divergence angle of the light to form a light distribution pattern. The reflected light and light that enters the optical element and is not reflected by the reflecting surface are superposed on a plane including a point located at a focal position of the emitting surface in a direction of an optical axis of the emitting surface and being perpendicular to the optical axis, thereby forming a high luminous intensity region in the light distribution pattern on the plane. The emitting surface has positive refractive power and projects the light distribution pattern formed on the plane.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2021 Application Filing Year
- B62J Class
- 488 Applications Filed
- 287 Patents Issued To-Date
- 58.82 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B62J Class
- 0 % this patent is cited more than
- 2 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Mar 12, 2027 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Mar 12, 2031 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 12, 2035 |
