Suspension system for a one-wheeled transportation device and method
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 12, 2023
Grant Date -
N/A
app pub date -
Feb 4, 2022
filing date -
Feb 4, 2022
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

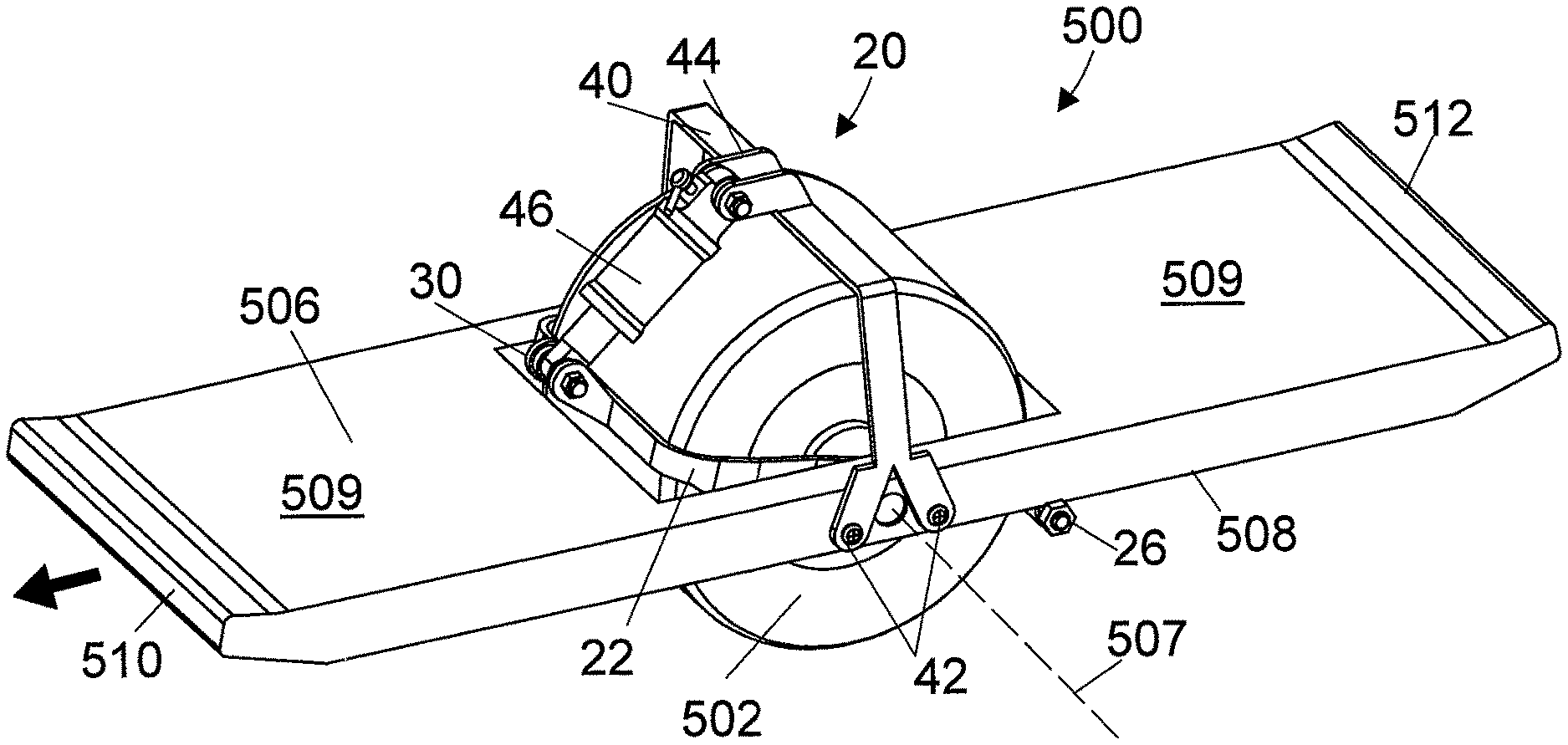

A suspension system for a one-wheeled transportation device is disclosed. The one-wheeled transportation device includes (1) a wheel, and (2) a tiltable platform has a top side, a bottom side, a first end, a second end, a central longitudinal axis, and an aperture which is shaped and dimensioned to receive the wheel. The suspension system includes a wheel holder which rotationally carries the wheel, the wheel holder having a proximal end and an opposite distal end, the proximal end is pivotably connected to the second end of the tiltable platform so that the distal end resides above the top side at the first end. A bracket has a proximal end and an opposite distal end, the proximal end is connected to the tiltable platform so that the distal end of the bracket upwardly extends above the wheel. A shock absorber is connected between the distal end of the wheel holder and the distal end of the bracket.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2022 Application Filing Year
- B62K Class
- 384 Applications Filed
- 132 Patents Issued To-Date
- 34.38 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B62K Class
- 0 % this patent is cited more than
- 2 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Mar 12, 2027 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Mar 12, 2031 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 12, 2035 |
