Buffer bracket
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 5, 2023
Grant Date -
N/A
app pub date -
Dec 7, 2022
filing date -
Aug 22, 2022
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

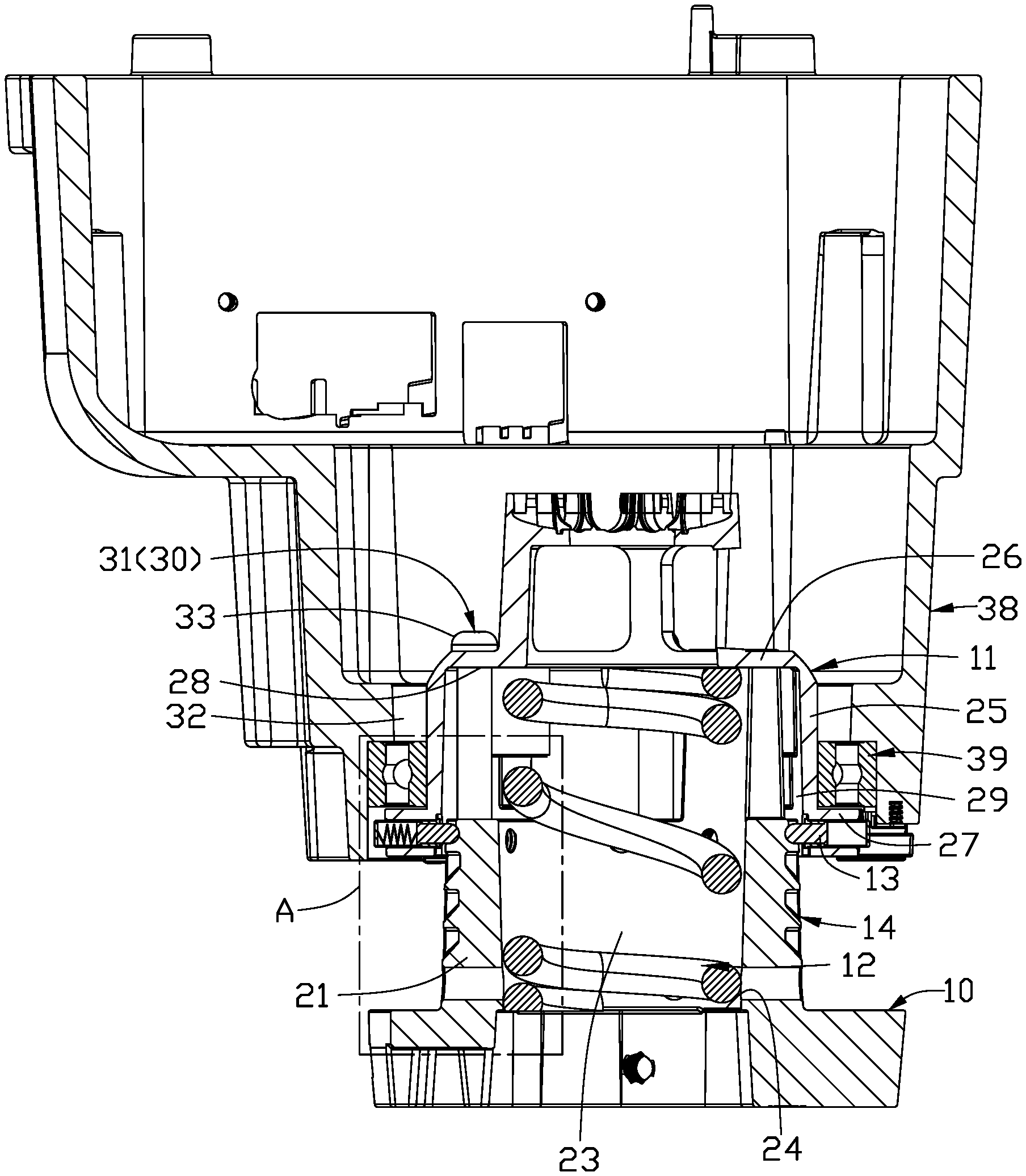

The disclosure provides a buffer bracket, which comprises a base, a moving part, an elastic buffer and a positioning pin. The base is provided with a group of holes, which comprises a plurality of positioning holes arranged in sequence along the first direction. The moving part is movably fitted to the base along the first direction. The elastic buffer is elastically compressed between the base and the moving part. The locating pin is installed on the moving part. When the moving part moves forward in the first direction relative to the base under external force, the positioning pin is restricted to a certain positioning hole. The beneficial effect of the disclosure is that it can absorb impact energy and avoid rebound.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2022 Application Filing Year
- B60R Class
- 3396 Applications Filed
- 1633 Patents Issued To-Date
- 48.09 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B60R Class
- 0 % this patent is cited more than
- 2 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Mar 5, 2027 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Mar 5, 2031 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 5, 2035 |
