Power plant and method for operating a power plant
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 5, 2023
Grant Date -
Sep 22, 2022
app pub date -
Aug 21, 2019
filing date -
Aug 21, 2019
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

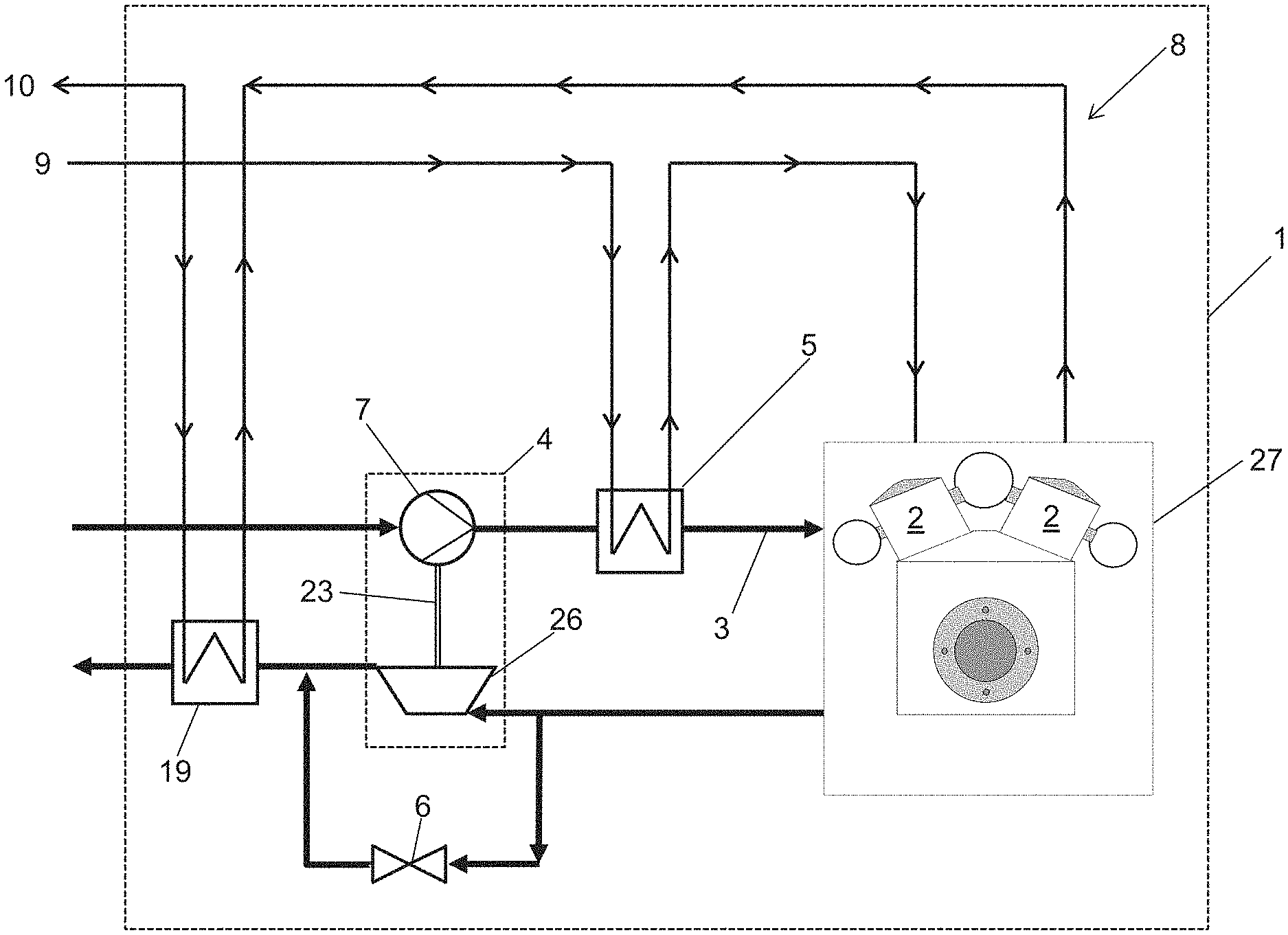

Method for operating a power plant for generating energy, comprising at least one stationary internal combustion engine (1) and a district heating system (20) connected to the at least one internal combustion engine (1) in a heat exchange relationship,
- wherein the at least one internal combustion engine (1) is configured to deliver a mechanical power by burning a fuel,wherein on the one hand the at least one internal combustion engine (1) is cooled and on the other hand heat is supplied to the district heating system (20) through a heat exchange between the district heating system (20) and the at least one internal combustion engine (1) andwherein at least one additional cooling device (12) is provided,wherein the cooling of the at least one internal combustion engine (1) is effected—at least partially—using the at least one additional cooling device (12) when a transient performance requirement for the at least one internal combustion engine (1) occurs.
First Claim
Other Claims data not available
Family
Loading Family data...
International Classification(s)
- 2019 Application Filing Year
- F01P Class
- 333 Applications Filed
- 242 Patents Issued To-Date
- 72.68 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F01P Class
- 0 % this patent is cited more than
- 2 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Mar 5, 2027 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Mar 5, 2031 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 5, 2035 |
