Adjustable and configurable door pull and installation method thereof
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 5, 2023
Grant Date -
Oct 6, 2022
app pub date -
Jun 21, 2022
filing date -
Jun 14, 2016
priority date (Note) -
In Force
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Abstract

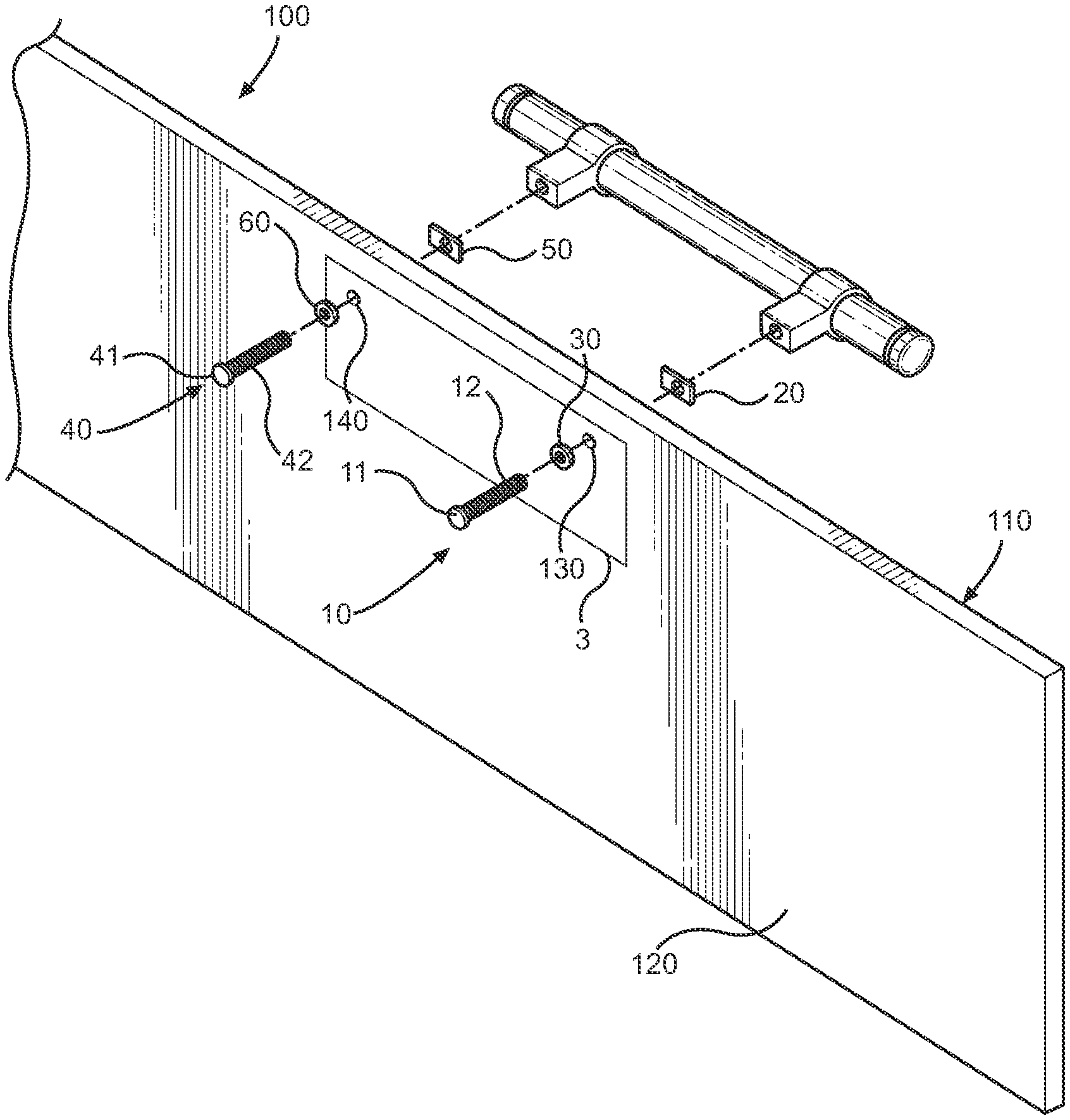

An adjustable door pull to be installed on a first surface of a door that opens an entrance through which a user can walk, the adjustable door pull including a grip to allow the user to pull the door open such that the user is able to walk through the entrance, at least one detachable standoff, including an attachment portion having an aperture into which the grip is inserted, and a protruding portion disposed at a first end on at least a portion of the attachment portion to extend from the attachment portion and the grip to contact the first surface of the door on a second end opposite with respect to the first end, the protruding portion including an aperture to allow the attachment portion to be coupled to the grip, and a set screw to be inserted fully into the aperture of the protruding portion until the set screw also inserts at least partially into the aperture of the attachment portion to couple the attachment portion to the grip, and a through bolt to be inserted through a hole from a second surface of the door, the through bolt comprising a threaded portion to screw into the aperture of the protruding portion to fix the protruding portion to the first surface of the door, such that the through bolt is disposed a distance from the set screw within the aperture of the protruding portion.
First Claim
all claims..Other Claims data not available
Family

- 15 United States
- 10 France
- 8 Japan
- 7 China
- 5 Korea
- 2 Other
Patent Owner(s)
Patent Owner | Address | |
---|---|---|
TRIANGLE BRASS MANUFACTURING CO INC | OCEANSIDE CA |
International Classification(s)

- 2022 Application Filing Year
- E05B Class
- 841 Applications Filed
- 348 Patents Issued To-Date
- 41.38 % Issued To-Date
Inventor(s)
Inventor Name | Address | # of filed Patents | Total Citations |
---|---|---|---|
Simon, Martin | Long Beach, US | 57 | 370 |
# of filed Patents : 57 Total Citations : 370 |
Cited Art Landscape
- No Cited Art to Display

Patent Citation Ranking
- 1 Citation Count
- E05B Class
- 80.73 % this patent is cited more than
- 2 Age
Forward Cite Landscape
- No Forward Cites to Display

Maintenance Fees
Fee | Large entity fee | small entity fee | micro entity fee | due date |
---|---|---|---|---|
3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Mar 5, 2027 |
7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Mar 5, 2031 |
11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 5, 2035 |
Fee | Large entity fee | small entity fee | micro entity fee |
---|---|---|---|
Surcharge - 3.5 year - Late payment within 6 months | $160.00 | $80.00 | $40.00 |
Surcharge - 7.5 year - Late payment within 6 months | $160.00 | $80.00 | $40.00 |
Surcharge - 11.5 year - Late payment within 6 months | $160.00 | $80.00 | $40.00 |
Surcharge after expiration - Late payment is unavoidable | $700.00 | $350.00 | $175.00 |
Surcharge after expiration - Late payment is unintentional | $1,640.00 | $820.00 | $410.00 |
Full Text

Legal Events
- No Legal Status data available.

Matter Detail

Renewals Detail
