Electrode configuration for extended plasma confinement
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 29, 2023
Grant Date -
Dec 8, 2022
app pub date -
Jun 15, 2022
filing date -
May 28, 2021
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

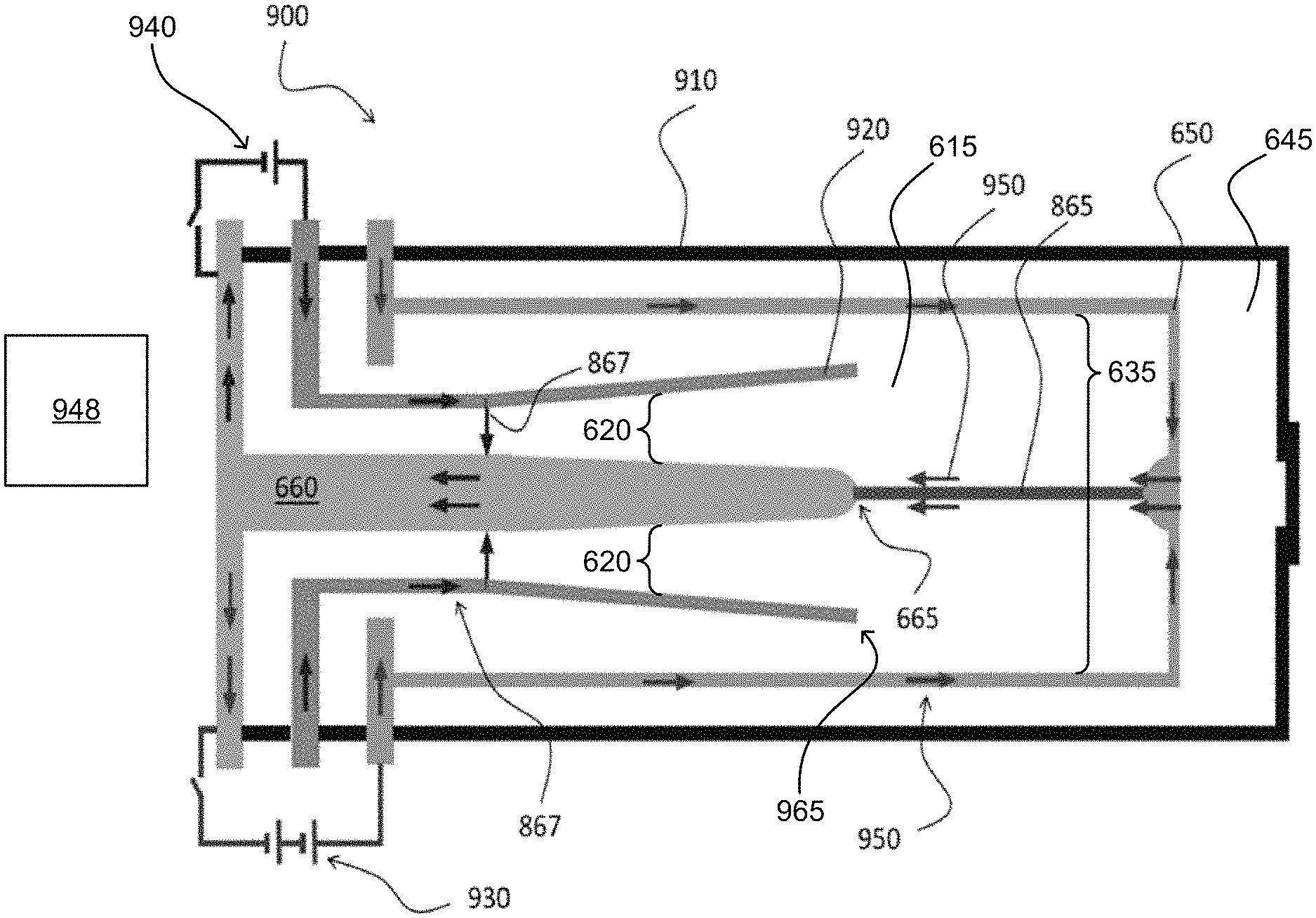

Methods and systems are provided for plasma confinement utilizing various electrode and valve configurations. In one example, a device includes a first electrode positioned to define an outer boundary of an acceleration volume, a second electrode arranged coaxially with respect to the first electrode and positioned to define an inner boundary of the acceleration volume, at least one power supply to drive an electric current along a Z-pinch plasma column between the first second electrodes, and a set of valves to provide gas to the acceleration volume to fuel the Z-pinch plasma column, wherein an electron flow of the electric current is in a first direction from the second electrode to the first electrode. In additional or alternative examples, a shaping part is conductively connected to the second electrode to, in a presence of the gas, cause a gas breakdown of the gas to generate a sheared flow velocity profile.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2022 Application Filing Year
- H05H Class
- 245 Applications Filed
- 73 Patents Issued To-Date
- 29.80 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- H05H Class
- 86.13 % this patent is cited more than
- 2 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Feb 28, 2027 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Feb 28, 2031 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 28, 2035 |
