Systems for water control gate anchoring
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 29, 2023
Grant Date -
N/A
app pub date -
Oct 27, 2021
filing date -
Jul 18, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance

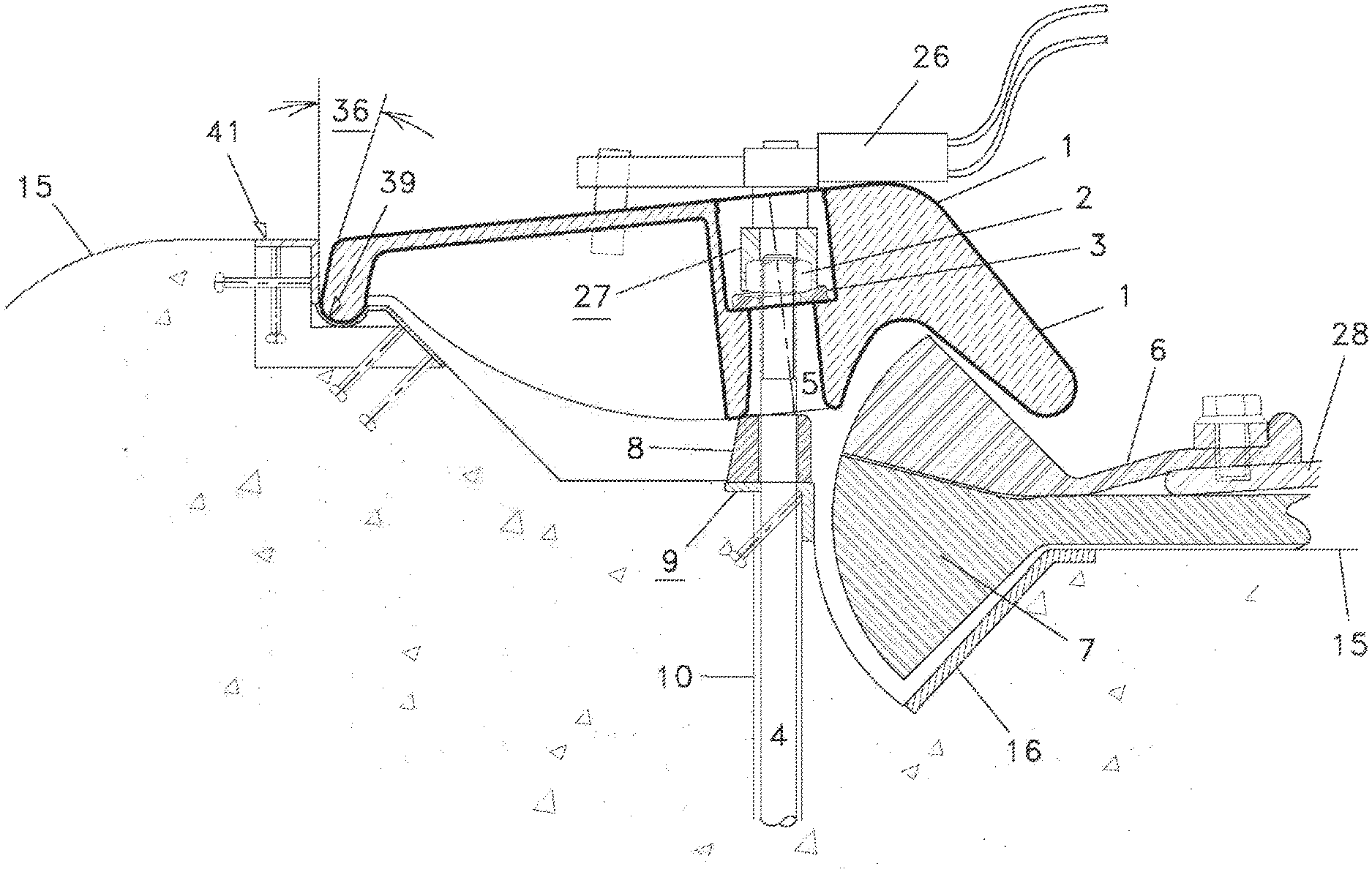

Abstract
The present invention relates to inflatable bladder actuated water control gates for control of open channels such as rivers and canals and for control of dam spillways without the need for intermediate piers. The air bladder and hinge flap wedge clamping system includes hinged engagement of the upstream edge of the clamps to the foundation so as to prevent the application of bending and shear loads to the anchor bolts. The resulting configuration facilitates the use of high strength alloy steel anchor bolts in a corrosion protected environment and also prevents tensile loading of the concrete foundation and associated cracking of the concrete foundation.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2021 Application Filing Year
- E05D Class
- 355 Applications Filed
- 224 Patents Issued To-Date
- 63.10 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- E05D Class
- 0 % this patent is cited more than
- 2 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Feb 28, 2027 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Feb 28, 2031 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 28, 2035 |
