Method for determining curvilinear patterns for patterning device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 22, 2023
Grant Date -
N/A
app pub date -
Dec 29, 2021
filing date -
Mar 19, 2018
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

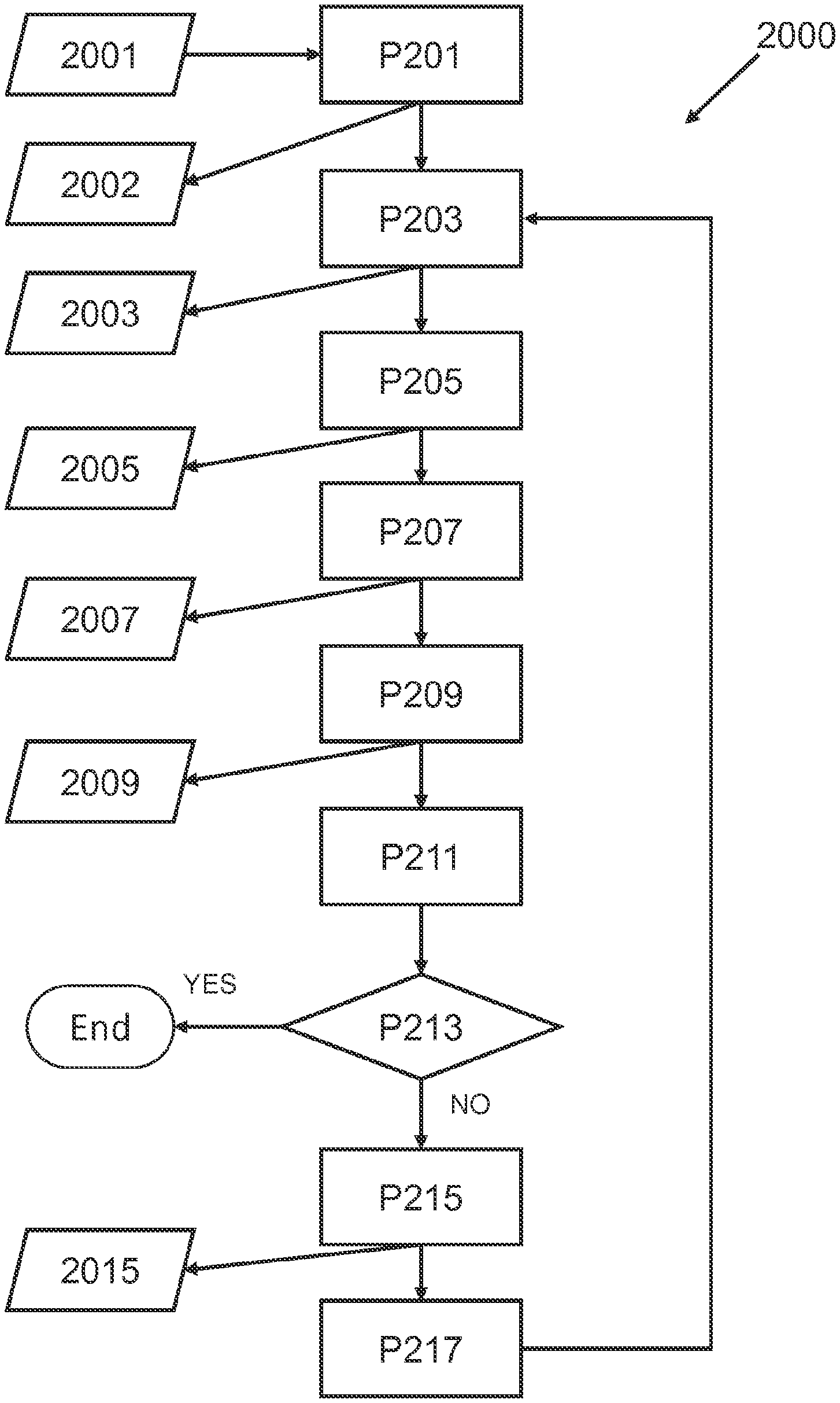

A method to determine a curvilinear pattern of a patterning device that includes obtaining (i) an initial image of the patterning device corresponding to a target pattern to be printed on a substrate subjected to a patterning process, and (ii) a process model configured to predict a pattern on the substrate from the initial image, generating, by a hardware computer system, an enhanced image from the initial image, generating, by the hardware computer system, a level set image using the enhanced image, and iteratively determining, by the hardware computer system, a curvilinear pattern for the patterning device based on the level set image, the process model, and a cost function, where the cost function (e.g., EPE) determines a difference between a predicted pattern and the target pattern, where the difference is iteratively reduced.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G06F Class
- 0 % this patent is cited more than
- 2 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Feb 22, 2027 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Feb 22, 2031 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 22, 2035 |
