Flagpole lighting system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 22, 2023
Grant Date -
N/A
app pub date -
Mar 16, 2023
filing date -
Mar 16, 2023
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

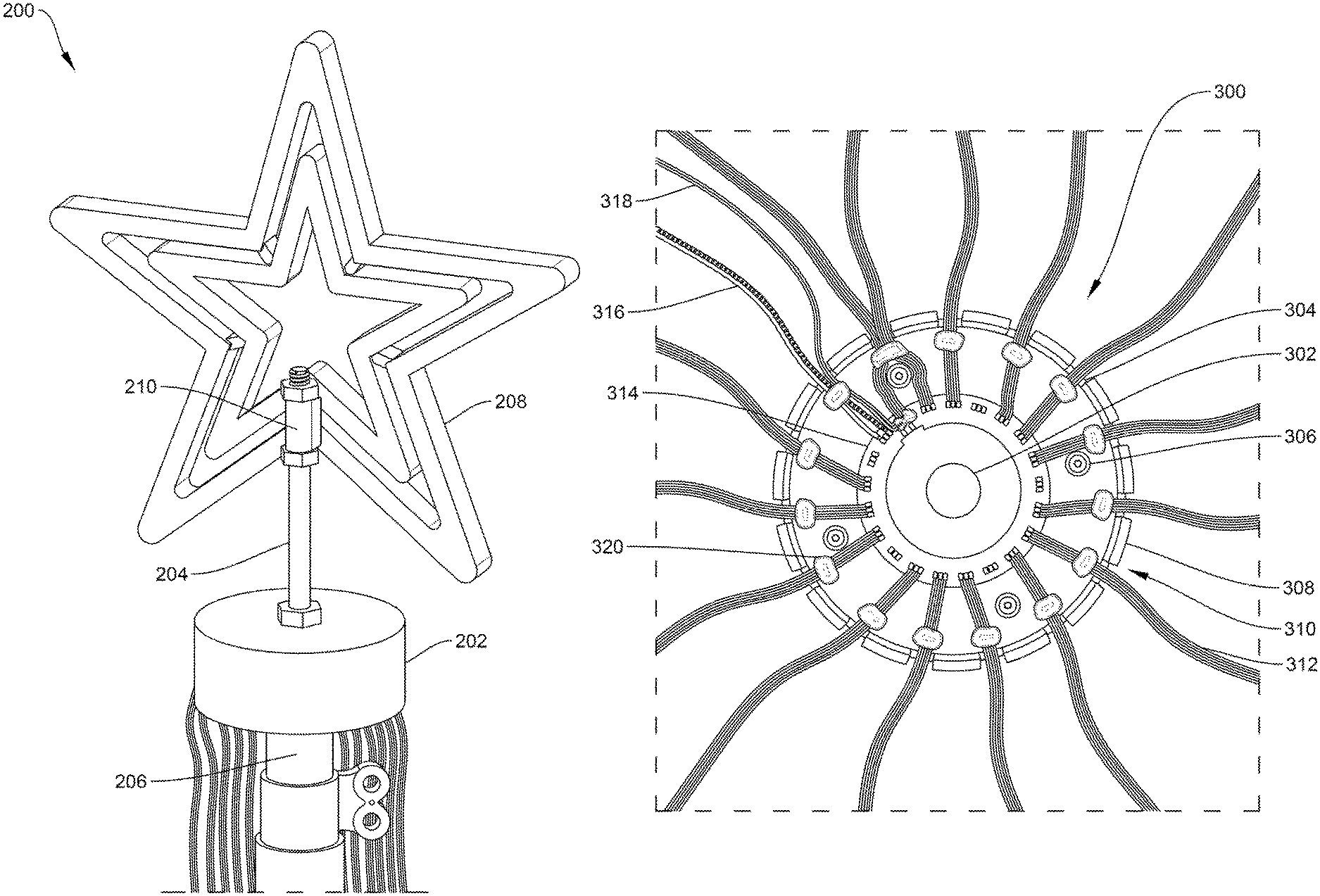

A flagpole lighting assembly, including an enclosure which includes a ring-shaped base having an aperture therethrough which includes a circumferential region, and a bottom aperture interior to the circumferential region, and a cover which includes a top with an aperture therethrough, an outer wall circumferentially coupled to the top, with a larger diameter than a diameter of the circumferential region of the base, protruding downwards beyond the base, a primary protrusion extending from the top such that it is flush with the outer wall and including an aperture therethrough, and a plurality of secondary protrusions extending downward from the top, each protrusion having a brace connected to the outer wall, and a ring-shaped circuit board and a plurality of output lighted strands connected to the circuit board.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2023 Application Filing Year
- F21V Class
- 1964 Applications Filed
- 1122 Patents Issued To-Date
- 57.13 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- F21V Class
- 77.46 % this patent is cited more than
- 2 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Feb 22, 2027 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Feb 22, 2031 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 22, 2035 |
