Locking device and method for a parcel box
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 22, 2023
Grant Date -
Aug 13, 2020
app pub date -
Feb 11, 2020
filing date -
Feb 12, 2019
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

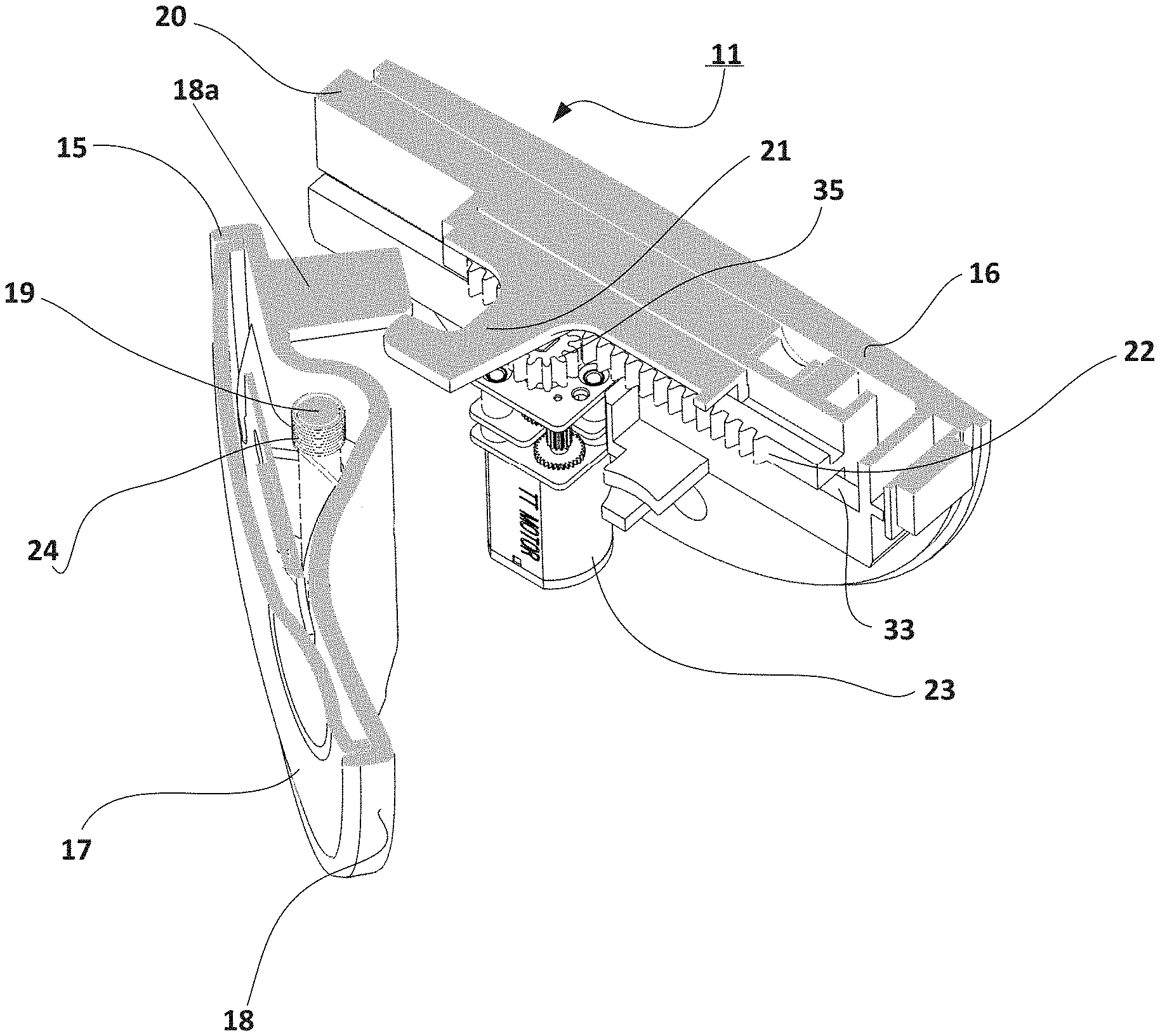

Locking device is disclosed for parcel boxes or lockers. The device comprises a user operable handle and a lock mechanism comprising a motor to rotate a pinion to move a rack attached to a handle-blocker and to a deadbolt. The handle-blocker controls transition of the user operable handle between open and closed positions due to movement of the rack, and simultaneously the deadbolt is configured to move between locking and unlocking positions. In the closed position, the handle-blocker and the handle-body have a linear connection with each other and in open position this connection is lost. The handle may be activated by tapping the handle-cover, or by using an RFID, NFC or by mobile technologies. A method to operate opening and closing a parcel box locked with the locking device allows one or more users to access the parcel box via software application paired with the device.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G07C Class
- 0 % this patent is cited more than
- 2 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Feb 22, 2027 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Feb 22, 2031 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 22, 2035 |
