Swing scooter with movable foot platforms
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 15, 2023
Grant Date -
Dec 22, 2022
app pub date -
Jun 18, 2021
filing date -
Jun 18, 2021
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

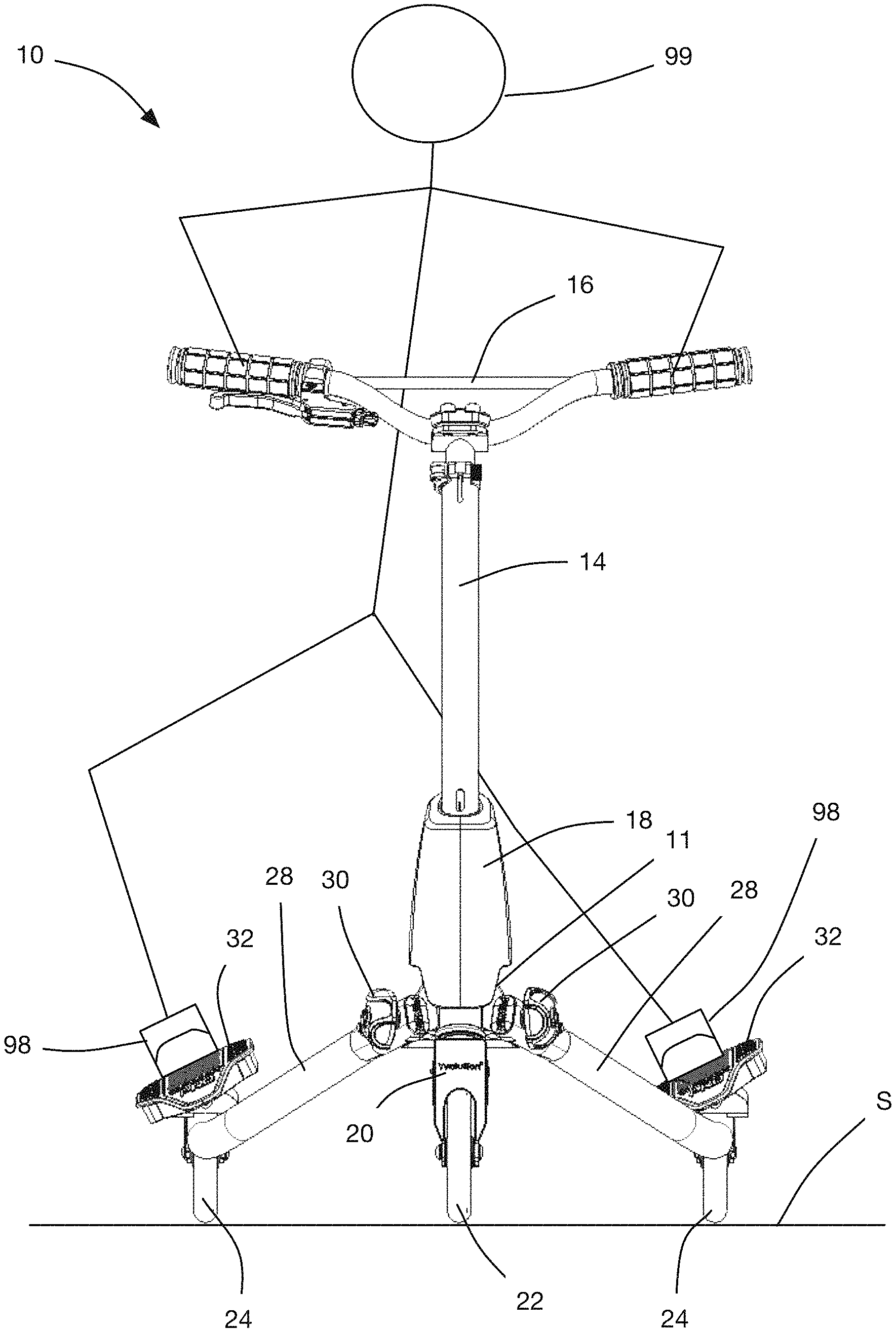

In an aspect there is provided a swing scooter, comprising a frame, a steering member, a front wheel, at least two support legs, and at least two platforms. A rear wheel support is pivotally attached each support leg. A rear wheel is rotatably attached to each rear wheel support. Each platform is movably attached to an associated support leg, and positioned for supporting a foot of a user. Each platform has a longitudinal platform axis and is movable between a first position in which the platform is angled down laterally towards a first lateral side of the swing scooter, and a second position in which the platform is angled down laterally towards a second lateral side of the swing scooter. The platform is movable to the first and second positions by movement of the foot of the user.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2021 Application Filing Year
- B62M Class
- 336 Applications Filed
- 199 Patents Issued To-Date
- 59.23 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B62M Class
- 77.26 % this patent is cited more than
- 2 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Feb 15, 2027 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Feb 15, 2031 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 15, 2035 |
