Ball transfer mechanism with polycrystalline diamond bearing support
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 8, 2023
Grant Date -
Jul 8, 2021
app pub date -
Mar 3, 2021
filing date -
Oct 6, 2017
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

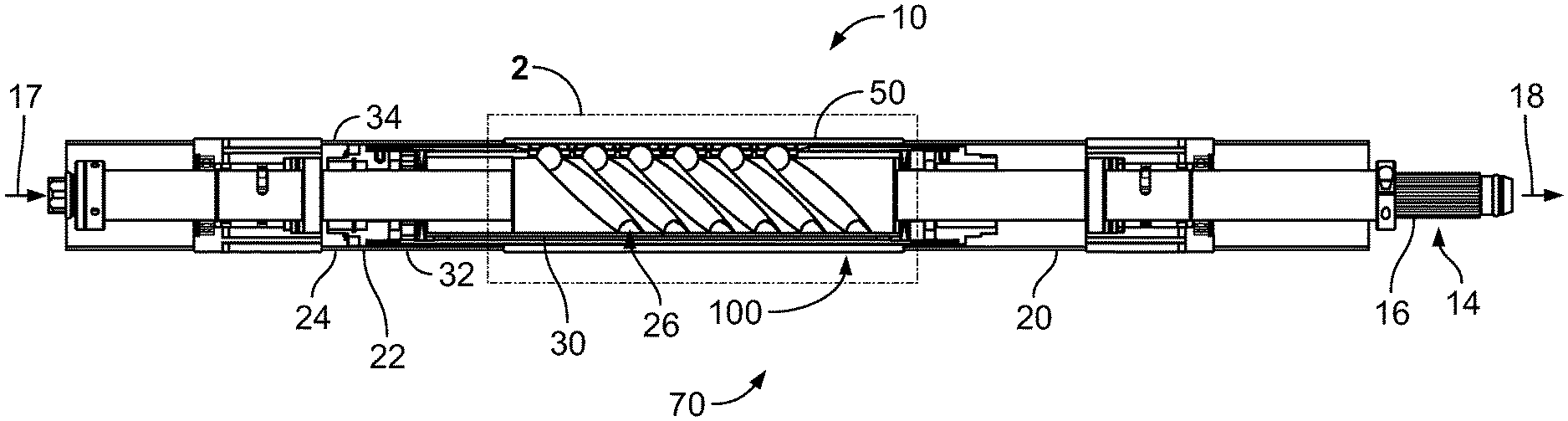

A ball transfer mechanism for a harmonic drive and linear piston motor is disclosed. The ball transfer mechanism includes a spherical ball and a cylindrical seat portion. The seat portion defines a hemispherical shaped recess with a contour for receiving the ball. The ball transfer mechanism is in an exterior wall of a housing for converting rotary motion to linear motion, driving a linear piston motor. The harmonic drive drives a rotor of the linear piston motor. The harmonic drive includes a hollow cylindrical coupler portion engaging a rotor portion for transferring torque to the rotor portion. Transfer mechanisms disposed along a housing wall of the linear piston motor engage the coupler portion. The coupler portion includes harmonic cam grooves for receiving spherical balls in the ball transfer mechanism that drives rotational motion in the rotor in response to axially linear movement of the piston assembly.
