Automated method to check electrostatic discharge effect on a victim device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 1, 2023
Grant Date -
N/A
app pub date -
Nov 22, 2021
filing date -
Nov 20, 2020
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

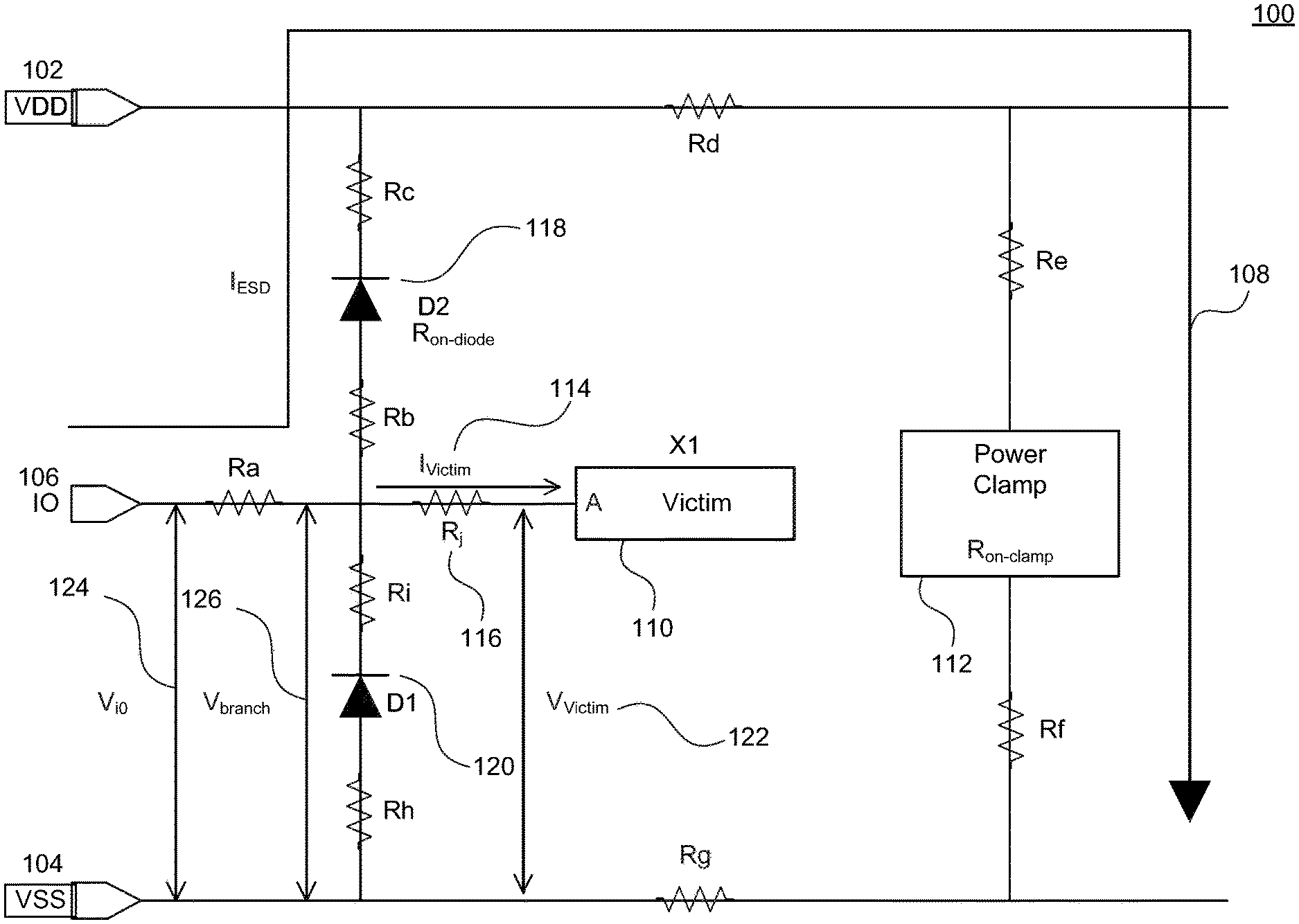

Some aspects of this disclosure are directed to an automated method to check electrostatic discharge (ESD) effect on a victim device. For example, some aspects of this disclosure relate to a method, including determining a probe point, in a circuit design, for determining effective resistance between the probe point and ground, where the probe point is on an ESD path of in the circuit design. The method includes determining voltage between the probe point and the ground. The method further includes comparing, by a processing device, a resistance value of the ESD path determined based a predefined electric current value at a source point and the measured voltage with a target resistance value range. The method further includes reporting a violation upon determining that the determined resistance value of the ESD path is outside the target resistance value range.
