Sheet post-processing apparatus
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 1, 2023
Grant Date -
Aug 4, 2022
app pub date -
Jan 28, 2022
filing date -
Feb 4, 2021
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

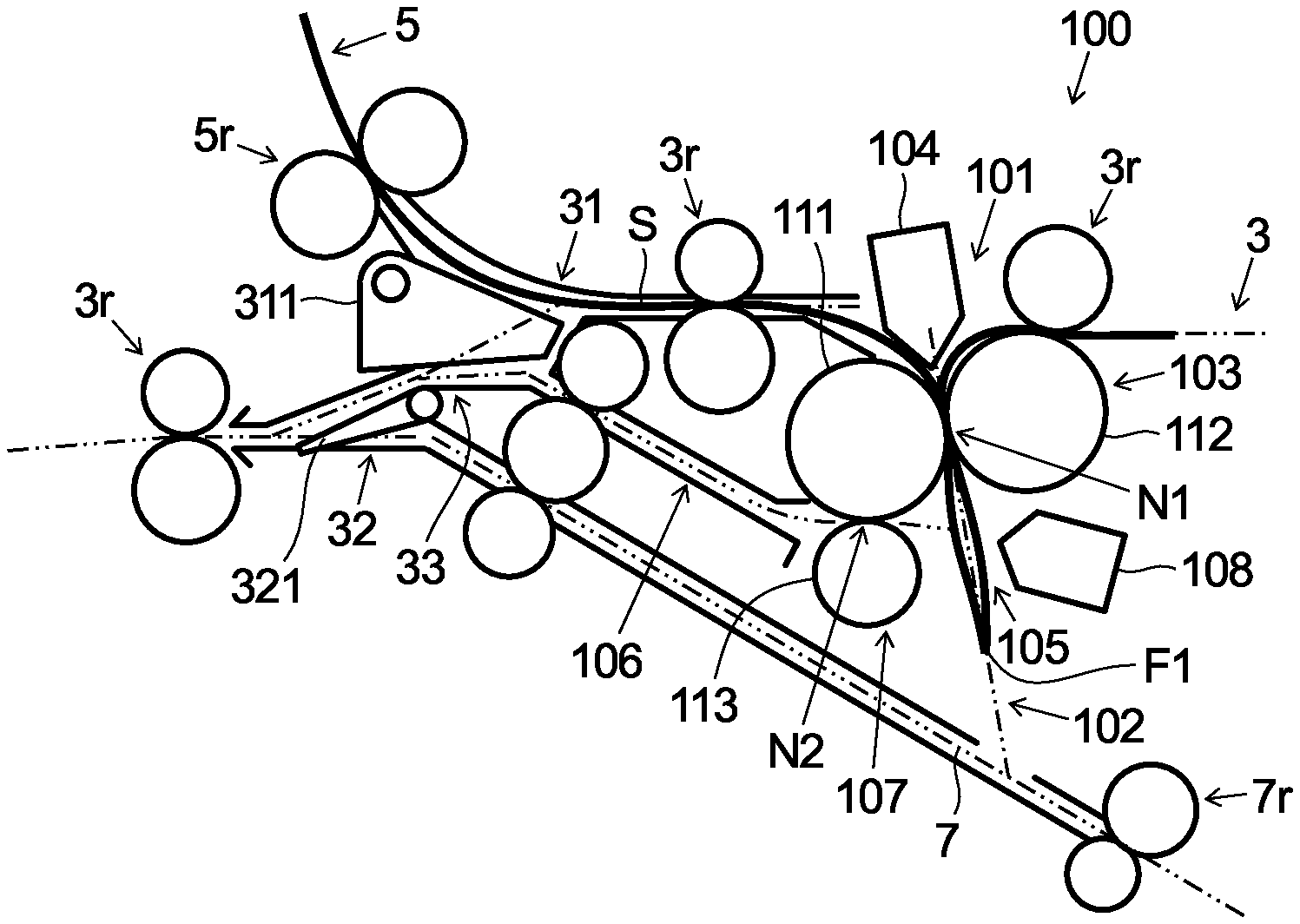

A sheet post-processing apparatus includes a first sheet conveyance passage, a second sheet conveyance passage, a sheet folding portion, and a merging portion. The second sheet conveyance passage branches off from a branch portion on the first sheet conveyance passage. The merging portion is located downstream of the branch portion on the first sheet conveyance passage, and there a folding conveyance passage of the sheet folding portion merges with the first sheet conveyance passage. When performing a folding process on a sheet, a controller guides the sheet conveyed from a sheet introduction port into the first sheet conveyance passage via the branch portion to the second sheet conveyance passage, then reverses the conveyance direction to guide the sheet to the sheet folding portion to perform the folding process, and passes the sheet through the folding conveyance passage, merges the sheet into the first sheet conveyance passage at the merging portion.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2022 Application Filing Year
- B31F Class
- 46 Applications Filed
- 19 Patents Issued To-Date
- 41.31 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B31F Class
- 0 % this patent is cited more than
- 2 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Feb 1, 2027 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Feb 1, 2031 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 1, 2035 |
