System for controlling an operational parameter of a gas generator based on a difference between a measurement and a target value
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 25, 2023
Grant Date -
N/A
app pub date -
Feb 18, 2022
filing date -
Jun 26, 2020
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

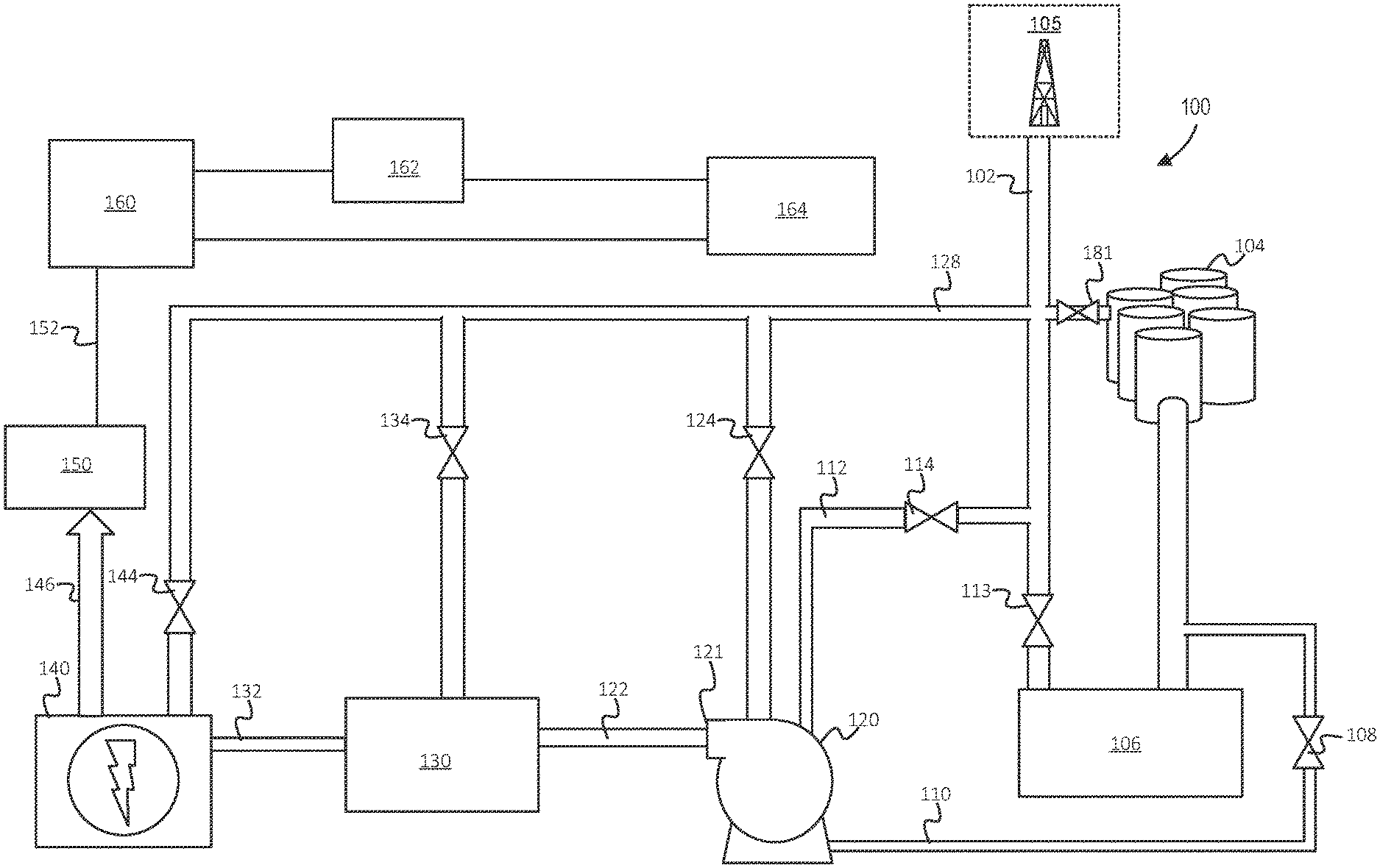

A system includes a generator using a fluid mixture obtained via a generator inlet, a compressor having a compressor inlet that is connected to a generator outlet by a first set of conduits, a second set of conduits connected to the compressor outlet and the generator inlet, and a sensor in communication with the second set of conduits, where a portion of the fluid mixture includes gas from a hydrocarbon well, and where exhaust fluid of the generator is provided to the compressor. A process includes obtaining a target fluid property and a fluid measurement using the sensor and modifying a parameter of a fluid control device to modify a first flow rate of the flow of the exhaust fluid through the second set of conduits relative to a second flow rate of the flow of the gas provided by the hydrocarbon well through the first set of conduits.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2022 Application Filing Year
- H02P Class
- 1111 Applications Filed
- 553 Patents Issued To-Date
- 49.78 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- H02P Class
- 73.18 % this patent is cited more than
- 2 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Jan 25, 2027 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jan 25, 2031 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 25, 2035 |
