Method and system for increasing crushing strength of a timber panel
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 25, 2023
Grant Date -
N/A
app pub date -
Sep 21, 2021
filing date -
Sep 23, 2020
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

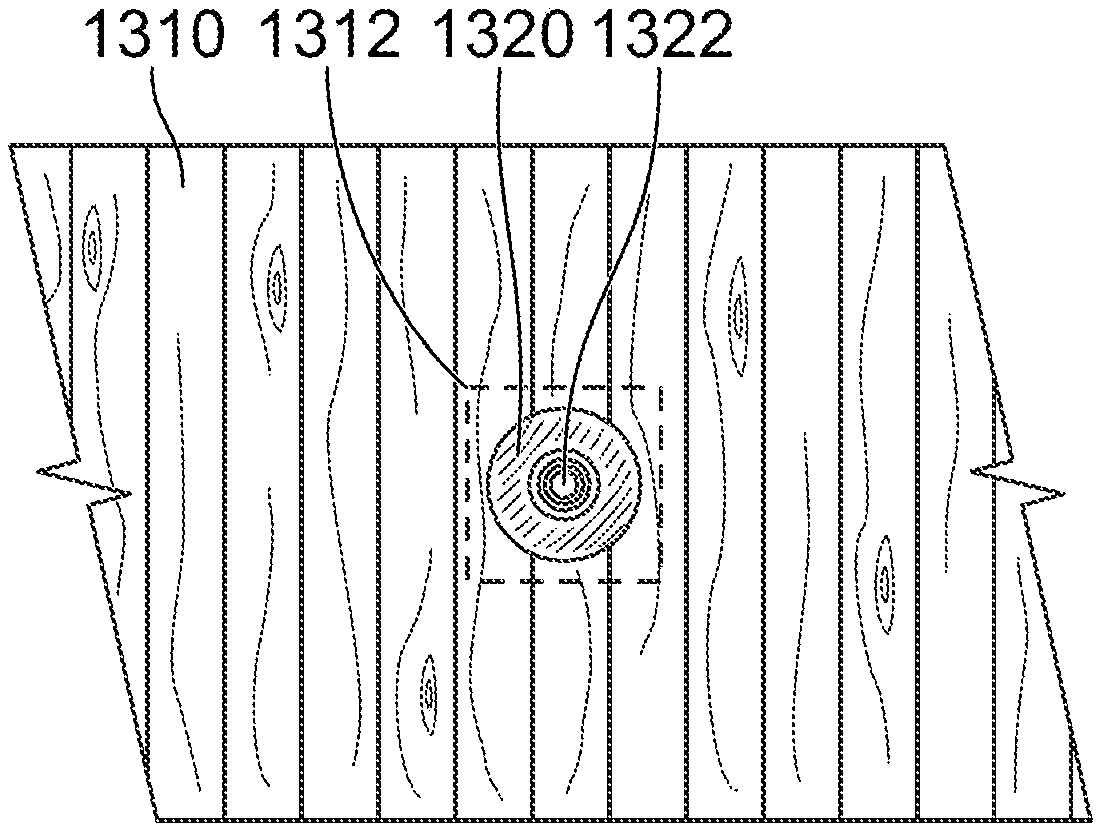

A system and method for increasing a crush strength of a panel. The system having a panel being made from side-grain wood, a bore that extends partly or completely through the panel, and a plug made from end-grain wood. Because end-grain wood has a significantly higher crush strength per square inch than side-grain wood, a topical crush strength of the panel can be increased through the use of the plug. The plug can further be provided with a hollow portion to be used with a thread stepped dowel comprising of a base section, at least one middle section, and a tip section, with each section being progressively smaller in circumference than the last. The at least one middle section of the threaded stepped dowel further comprises thread spiraling around the outer surface of the at least one middle section.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2021 Application Filing Year
- F16B Class
- 1201 Applications Filed
- 585 Patents Issued To-Date
- 48.71 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F16B Class
- 0 % this patent is cited more than
- 2 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Jan 25, 2027 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jan 25, 2031 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 25, 2035 |
