Reverse osmosis system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 25, 2023
Grant Date -
Jun 3, 2021
app pub date -
Jan 25, 2021
filing date -
Sep 29, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

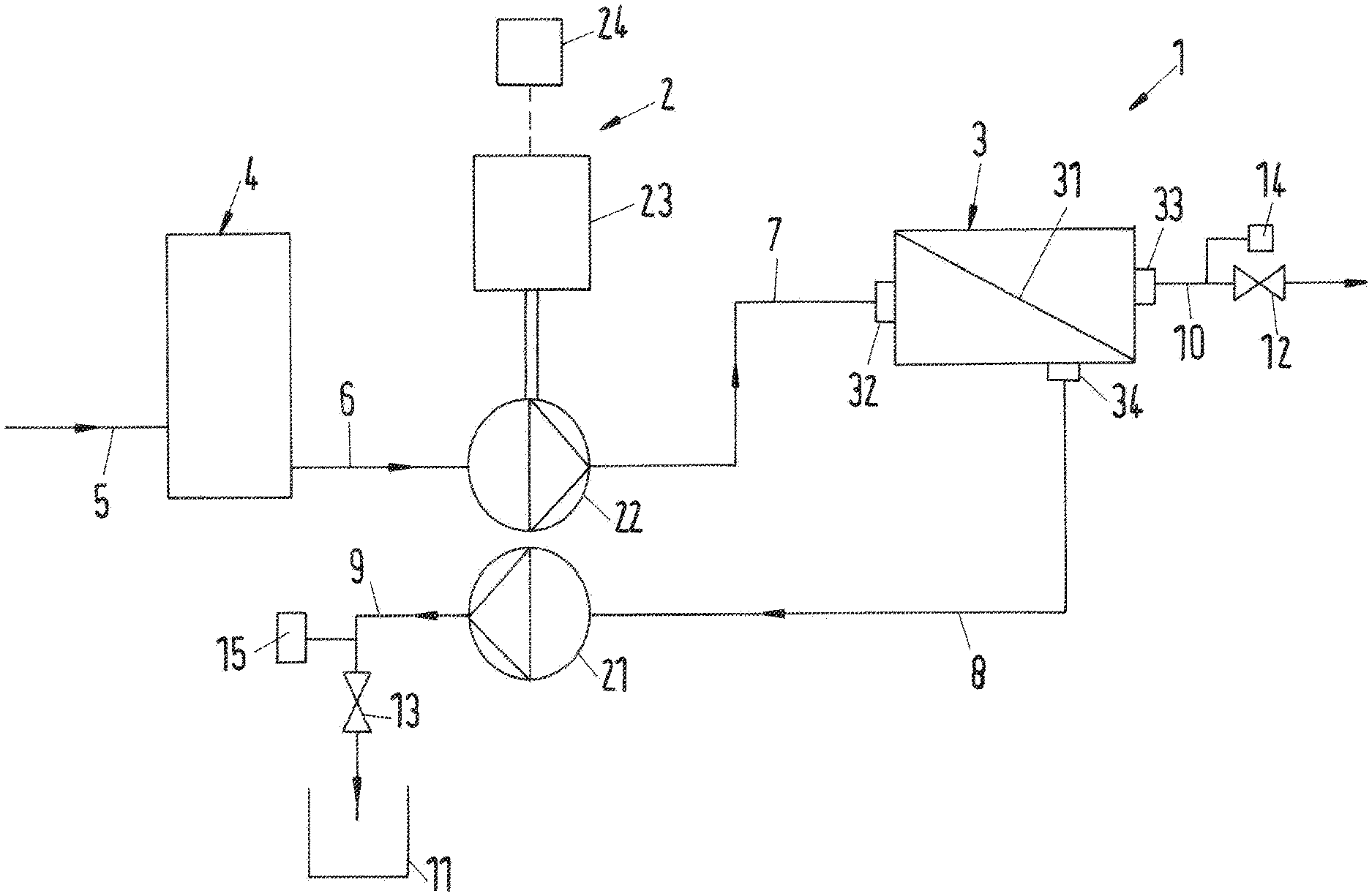

A reverse osmosis system includes a membrane unit, an energy recovery device, high and low pressure inlet lines, and a concentrate line. The membrane unit has a membrane, an inlet for receiving a feed fluid, a permeate outlet for discharging a permeate fluid and a concentrate outlet for discharging a concentrate fluid. The energy recovering device has a turbine portion, a turbine inlet and a turbine outlet, a pump portion, a pump inlet and a pump outlet, a motor, and a motor control unit for controlling the motor. The low pressure inlet line is connected to the pump inlet for supplying the feed fluid at a low pressure. The high pressure inlet line connects the pump outlet with the inlet for supplying the feed fluid at a high pressure. The concentrate line connects the concentrate outlet with the turbine inlet for supplying the concentrate fluid to the turbine portion.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| EP | A1 | EP3009181 | Aug 26, 2015 |
| AU | A1 | AU2015224441 | Sep 09, 2015 |
| BR | A2 | BR102015023008 | Sep 14, 2015 |
| US | B2 | US11045766 | Sep 15, 2015 |
| CN | B | CN105457495 | Sep 15, 2015 |
International Classification(s)
- 2021 Application Filing Year
- F03B Class
- 216 Applications Filed
- 125 Patents Issued To-Date
- 57.88 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F03B Class
- 0 % this patent is cited more than
- 2 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Jan 25, 2027 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jan 25, 2031 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 25, 2035 |
