Food preservation system with filtered water supply to icemaker
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 11, 2023
Grant Date -
Jul 7, 2022
app pub date -
Jan 6, 2021
filing date -
Jan 6, 2021
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

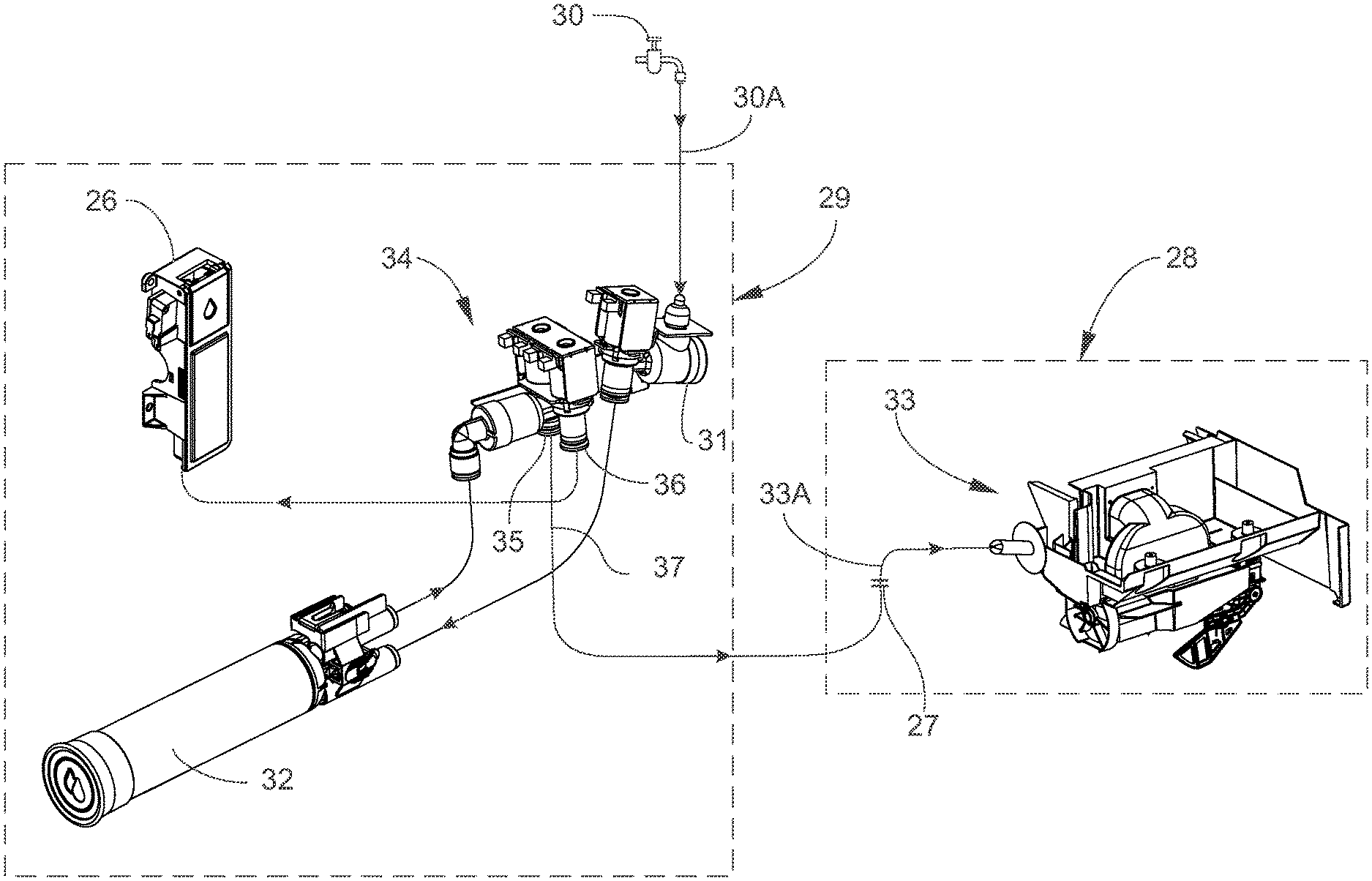

A food preservation system including a refrigerator and a freezer, wherein the refrigerator and freezer are independent from each other; the refrigerator comprising a fresh food compartment; the freezer including an icemaker and means for receiving filtered water; a water filter located in the fresh food compartment; a water supply line leading into an inflow side of the water filter; a refrigerator inlet valve connected to an inlet side of the water filter and a water distribution valve, wherein the water distribution valve comprises an auxiliary icemaker water valve, the distribution valve connected to an outflow side of the water filter; tubing connecting an outflow side of the auxiliary icemaker water valve to the icemaker; and a refrigerator main controller, wherein the refrigerator main controller is in operable communication with the refrigerator inlet valve and the auxiliary icemaker water valve is provided, Methods to make ice with filtered water are also provided.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2021 Application Filing Year
- F25C Class
- 136 Applications Filed
- 79 Patents Issued To-Date
- 58.09 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F25C Class
- 0 % this patent is cited more than
- 2 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Jan 11, 2027 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jan 11, 2031 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 11, 2035 |
