Frame for bicycle, connector and bicycle
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 11, 2023
Grant Date -
Dec 10, 2020
app pub date -
Apr 26, 2018
filing date -
Apr 26, 2017
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

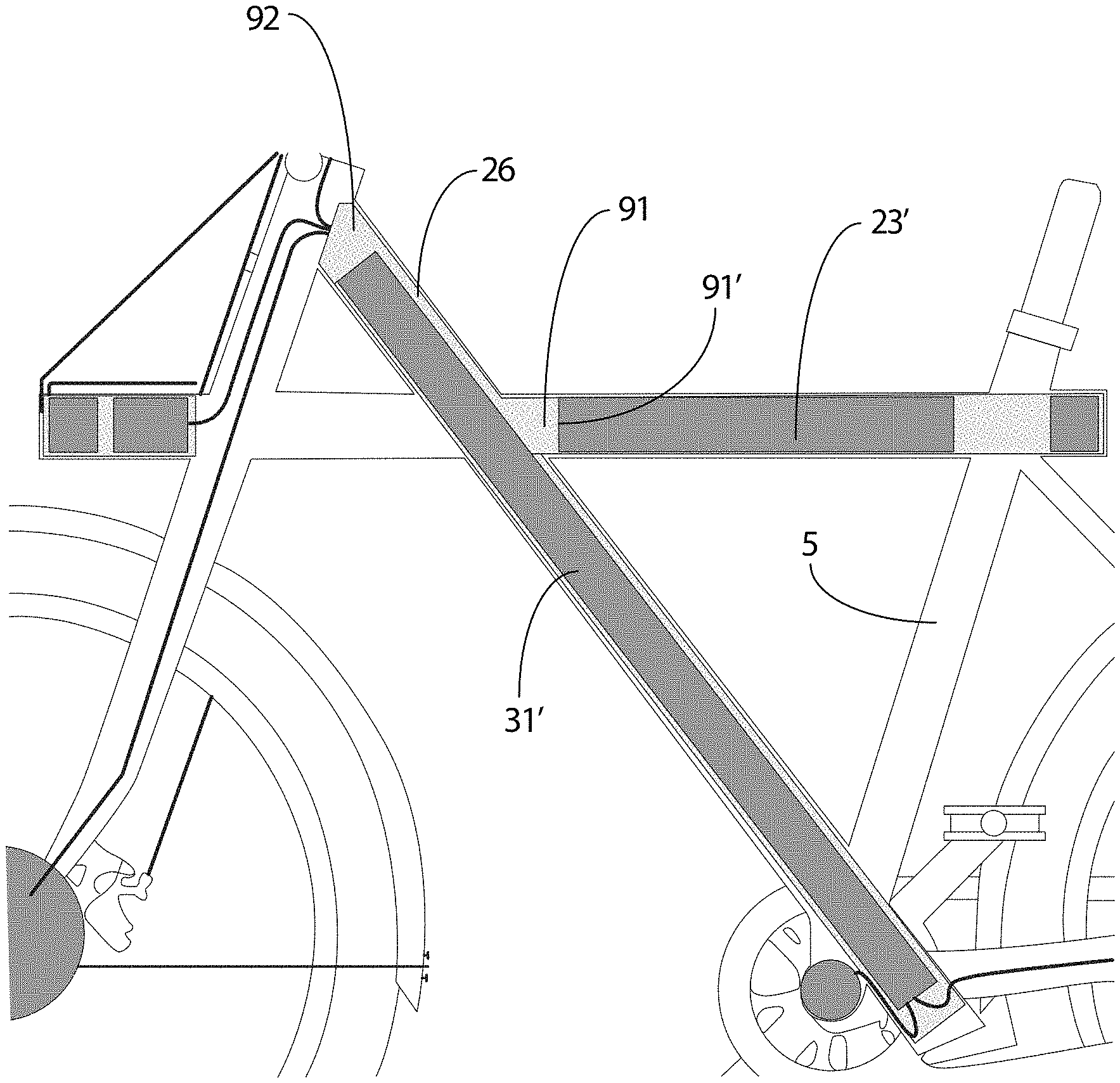

The present invention relates to a frame for a bicycle including a tube construction for providing fastening options for further parts of the vehicle, such as a steering pen, saddle pen and fastening means for a rear wheel. The tube construction includes: a top tube, substantially extending in horizontal direction; a saddle tube, downwardly extending from a tube intersection with the top tube, from a fastening to the top tube at a substantially rear side thereof; a bottom tube, extending from a tube intersection with the saddle tube at substantially an underside of the saddle tube towards a connection at the top tube forwardly arranged relative to the fastening of the settled tube to the top tube; and a head tube arranged at an angle by means of a tube intersection connected to the top tube. The bottom tube extends to a predetermined distance above the upper side of the top tube, crossing the top tube at a tube intersection, and the head tube is fastened to the bottom tube above the top tube.
