Device and method for soldering contact elements with induction heat

Number of patents in Portfolio can not be more than 2000

United States of America Patent

PATENT NO 11697167
SERIAL NO

17261741

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Loading Importance Indicators... loading....

Abstract

See full text

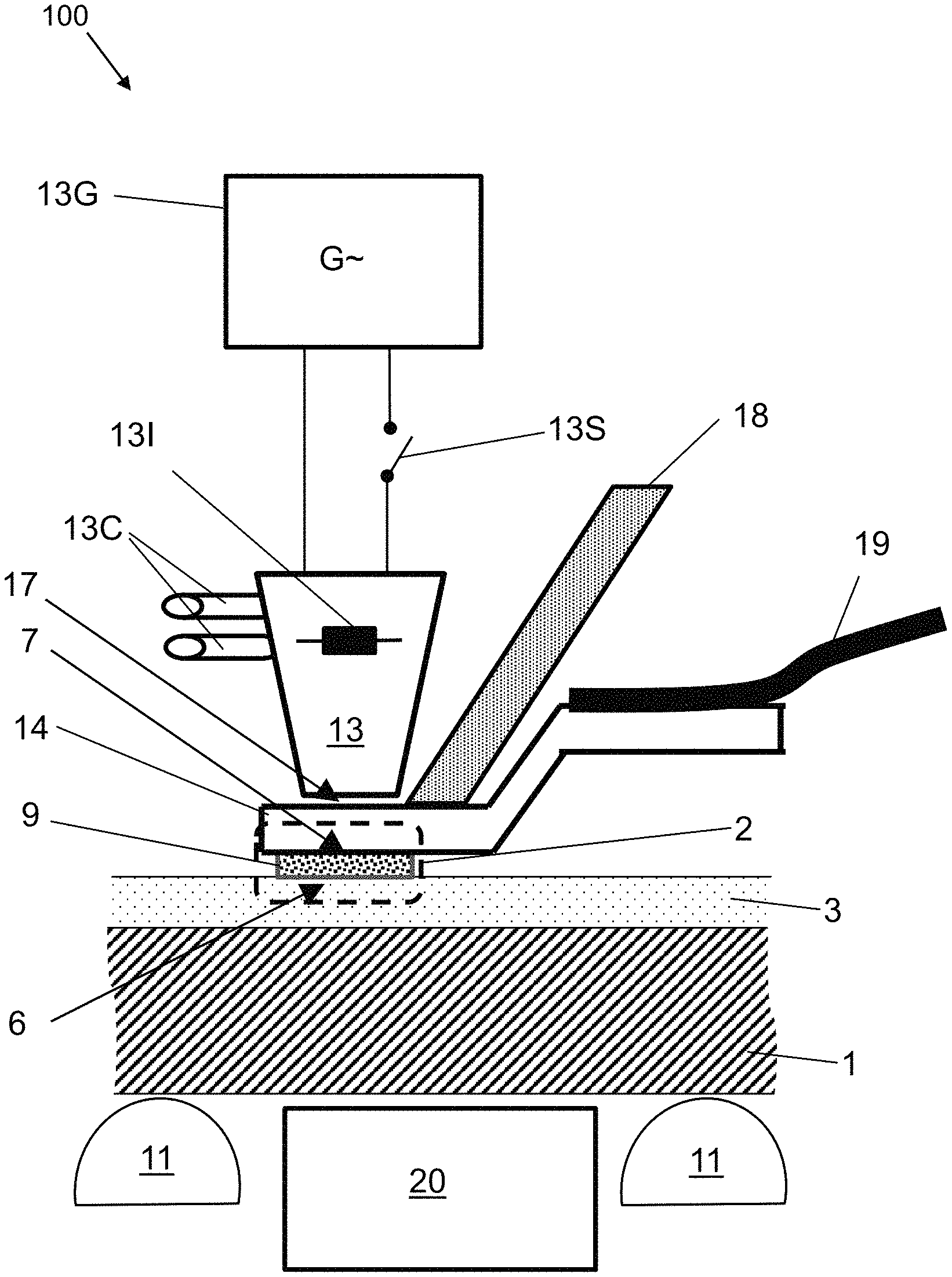

A device for inductively soldering at least one ferromagnetic contact element to at least one conductor structure on a nonmetallic plate, includes a system for fastening a plate during the soldering operation, at least one soldering tool having at least one induction loop or induction coil suitable for emitting a magnetic field, a system for mutually positioning the soldering tool and the contact element such that the switched-on magnetic field of the soldering tool reliably heats the ferromagnetic contact element and thus the solder joint, a generator that is suitable for generating an alternating voltage with a frequency of up to 1500 kHz and that can be connected to the induction loop or induction coil.
