Vertical take-off and landing aircraft
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 4, 2023
Grant Date -
N/A
app pub date -
Feb 17, 2022
filing date -
Jun 19, 2019
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

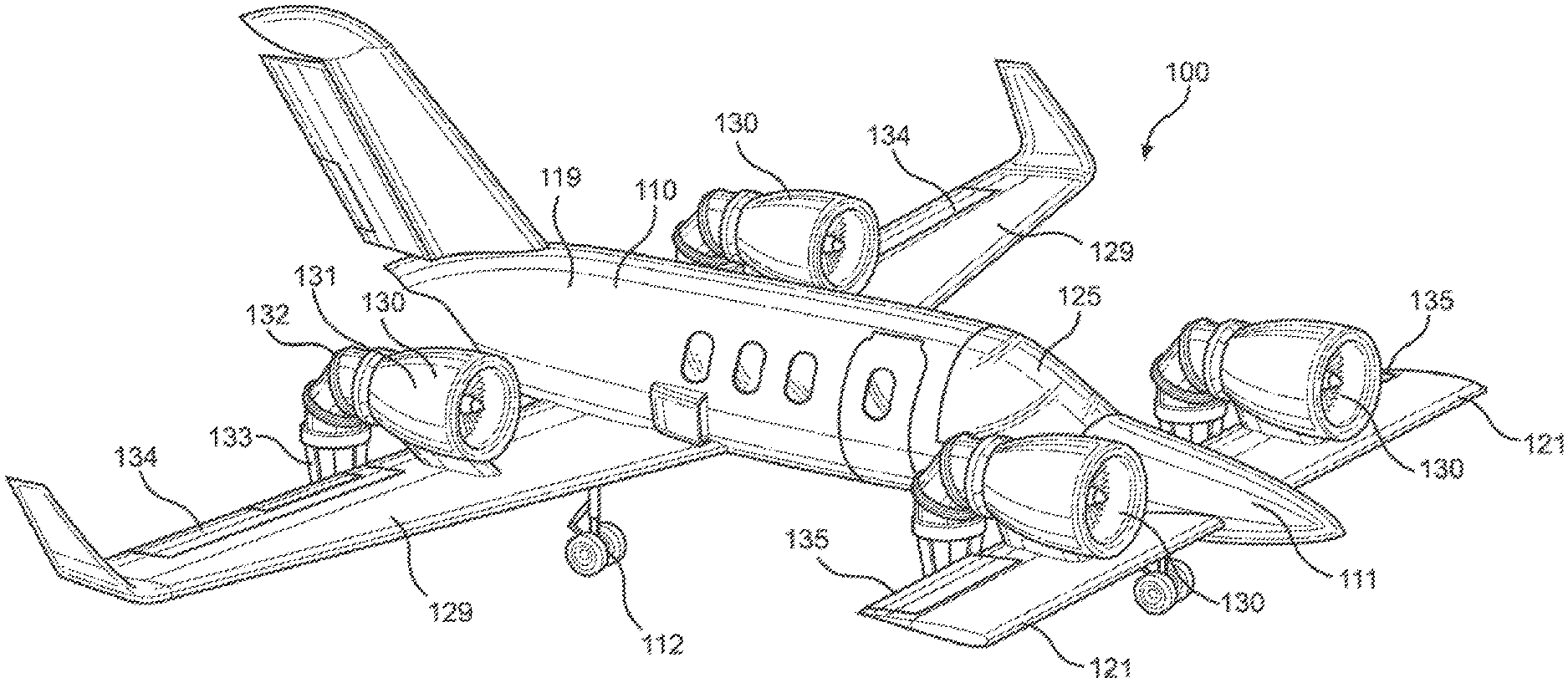

A vertical take-off and landing aircraft is provided. The aircraft comprises a fuselage which has a nose end, a tail end, and a plurality of seats disposed in the interior. A pair of rear wings extend outwardly from opposing sides of the fuselage between a cockpit and the tail end, and a pair of front wings extend outwardly from opposing sides of the fuselage between the cockpit and the nose end. Each of the pair of rear wings and front wings includes an adjustably mounted turbine which comprises a statically mounted fan pod, a duct rotatably connected to the fan pod, and an adjustable nozzle rotatably connected to the duct. The nozzle can be adjusted to a variety of configurations ranging between a vertical position and a horizontal position via the duct. The adjustably mounted turbine enables the aircraft to adjust thrust through vectors ranging between horizontal and vertical.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2022 Application Filing Year
- F02K Class
- 307 Applications Filed
- 160 Patents Issued To-Date
- 52.12 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F02K Class
- 0 % this patent is cited more than
- 2 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Jan 4, 2027 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jan 4, 2031 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 4, 2035 |
