Wagon and catapult assembly
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 4, 2023
Grant Date -
N/A
app pub date -
Nov 18, 2021
filing date -
Apr 20, 2021
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

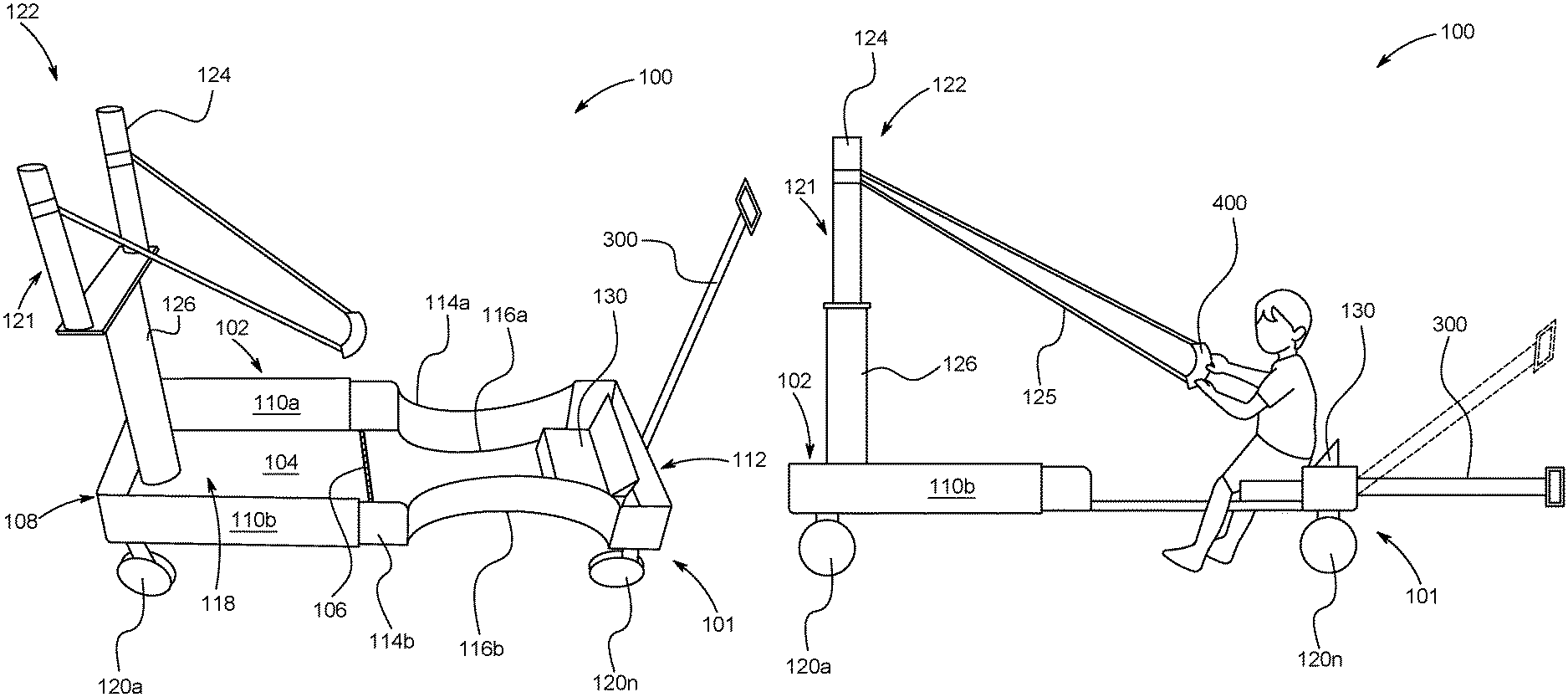

A wagon and catapult assembly provides a toy wagon that carries a detachable catapult. Assembly allows children to ride and operate the toy wagon, and also operate the catapult in a prone/sitting position, or while standing. The assembly comprises a toy wagon and a detachable catapult portion attached to the wagon. The toy wagon comprises mobile portion attached to a body portion to enable mobility of wagon. The body portion is foldable. Further the body portion has one or more fixed rear sidewalls and one or more detachable front sidewalls. The front sidewalls have a pair of leg depressions that enable the child to sit in a prone position while operating catapult and/or riding the toy wagon. An elongated handle pivotally and detachably attaches to the wagon for manipulating it and providing stability while operating the catapult. A seat detachably couples to the wagon.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2021 Application Filing Year
- B62B Class
- 430 Applications Filed
- 249 Patents Issued To-Date
- 57.91 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B62B Class
- 0 % this patent is cited more than
- 2 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Jan 4, 2027 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jan 4, 2031 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 4, 2035 |
