System and method for designing and creating a printing plate
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 4, 2023
Grant Date -
Dec 2, 2021
app pub date -
Nov 16, 2020
filing date -
May 26, 2020
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

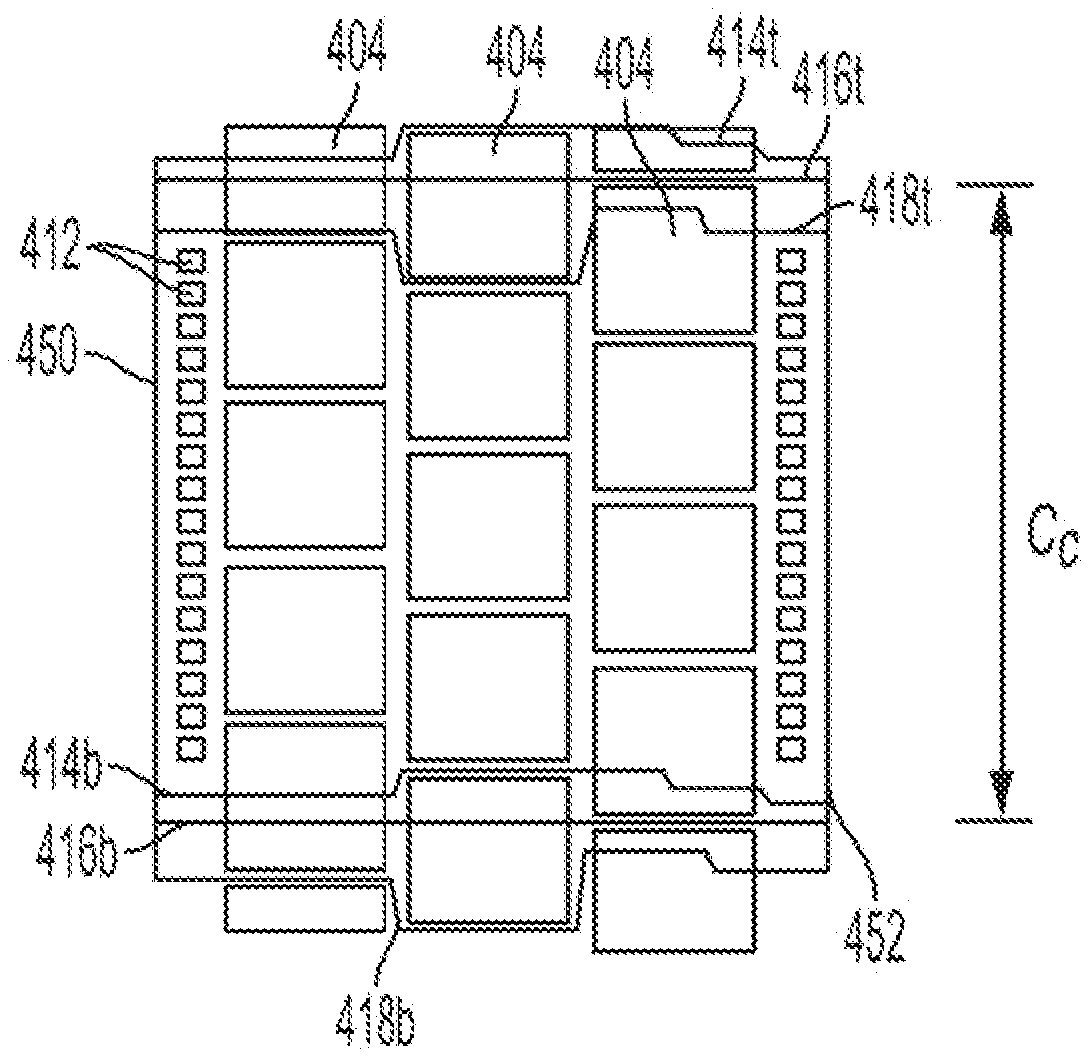

A method for designing a printing plate for mounting on a printing cylinder. An optimal lateral seam path is defined between opposite lateral edges of the plate by applying an energy minimization function. Top and bottom edges of the plate are defined based upon the optimal lateral seam path, preferably with a variable gap therebetween, and the bottom edge is unwrapped from the top edge to define a closed cutting path. The area inside the closed cutting path is wrapped with artwork or portions thereof, and an updated digital graphics file stored. The energy minimization function may include a penalty function, overall seam path length, and seam path amplitude, with weighting factors. For artwork including staggered lanes of step and repeat one-up images, the optimal lateral seam path may extend across each lane through one-up images, steps between adjacent one-up images, or a combination thereof.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2020 Application Filing Year
- B41M Class
- 558 Applications Filed
- 298 Patents Issued To-Date
- 53.41 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B41M Class
- 0 % this patent is cited more than
- 2 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Jan 4, 2027 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jan 4, 2031 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 4, 2035 |
