Seismic vibrator, vibration device and driving apparatus for the same
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 27, 2023
Grant Date -
Dec 10, 2020
app pub date -
Apr 19, 2017
filing date -
Dec 28, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

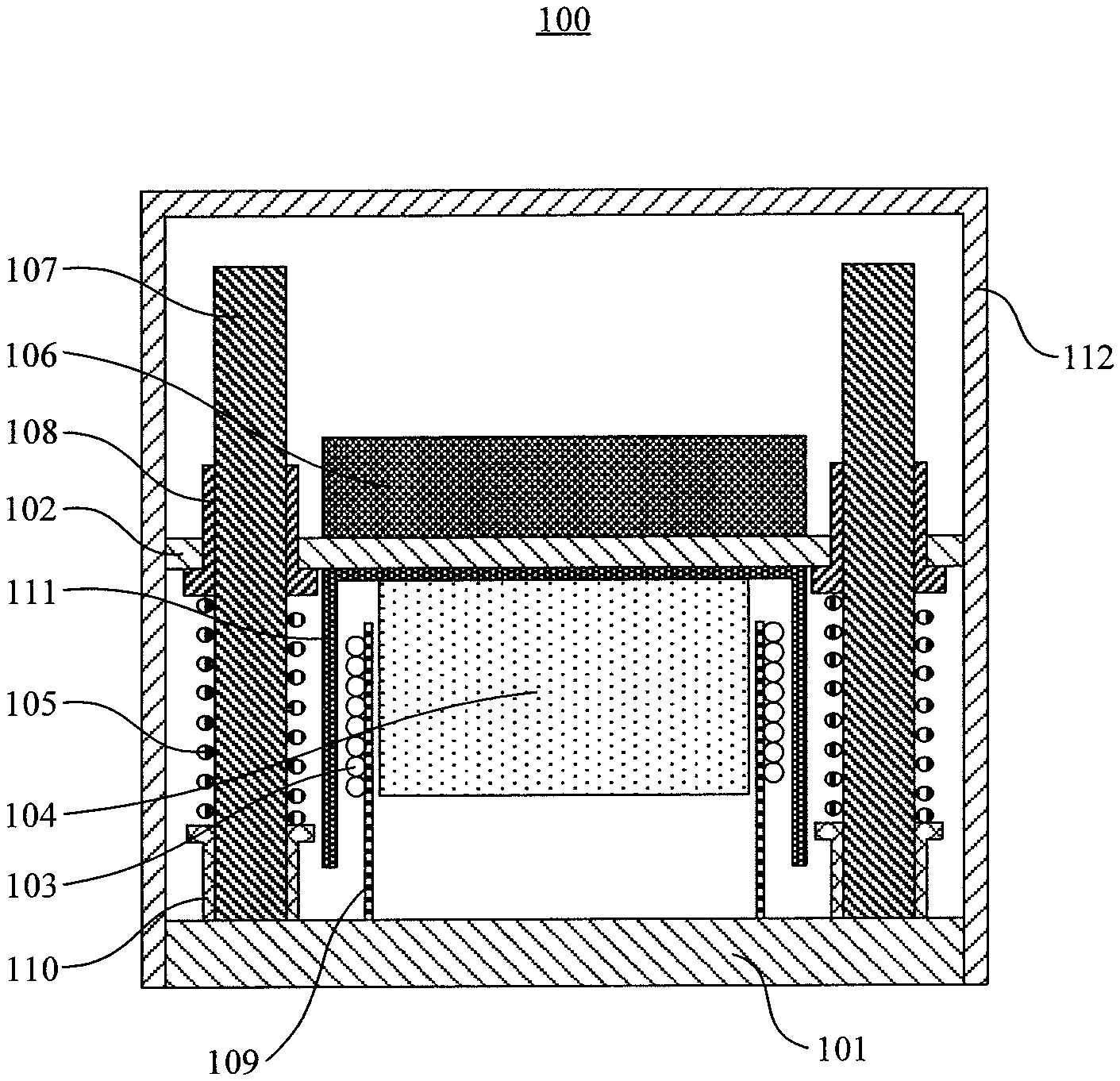

The present disclosure discloses a seismic vibrator, a vibration device and a driving apparatus for the same. The seismic vibrator comprises: a base; a mounting plate; a first spring configured to connect the base and the mounting plate, so that the mounting plate reciprocates relative to the base; a coil fixed with the base; a magnet having one end fixed with the mounting plate, and the other end stretched into the coil; a magnetic steel fixed with the magnet, wherein a gap for accommodating the coil is provided between the magnetic steel and the magnet; and a counterweight fixed with the mounting plate. The vibration device comprises the above seismic vibrator and an adjustable base. Compared with the traditional electromagnetic controllable seismic vibrator, the structure of the seismic vibrator provided by the present disclosure is simpler.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- G01V Class
- 1440 Applications Filed
- 1073 Patents Issued To-Date
- 74.52 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G01V Class
- 0 % this patent is cited more than
- 2 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Dec 27, 2026 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 27, 2030 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 27, 2034 |
