Transmission mechanism and lock
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 27, 2023
Grant Date -
N/A
app pub date -
Dec 7, 2020
filing date -
Aug 27, 2020
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

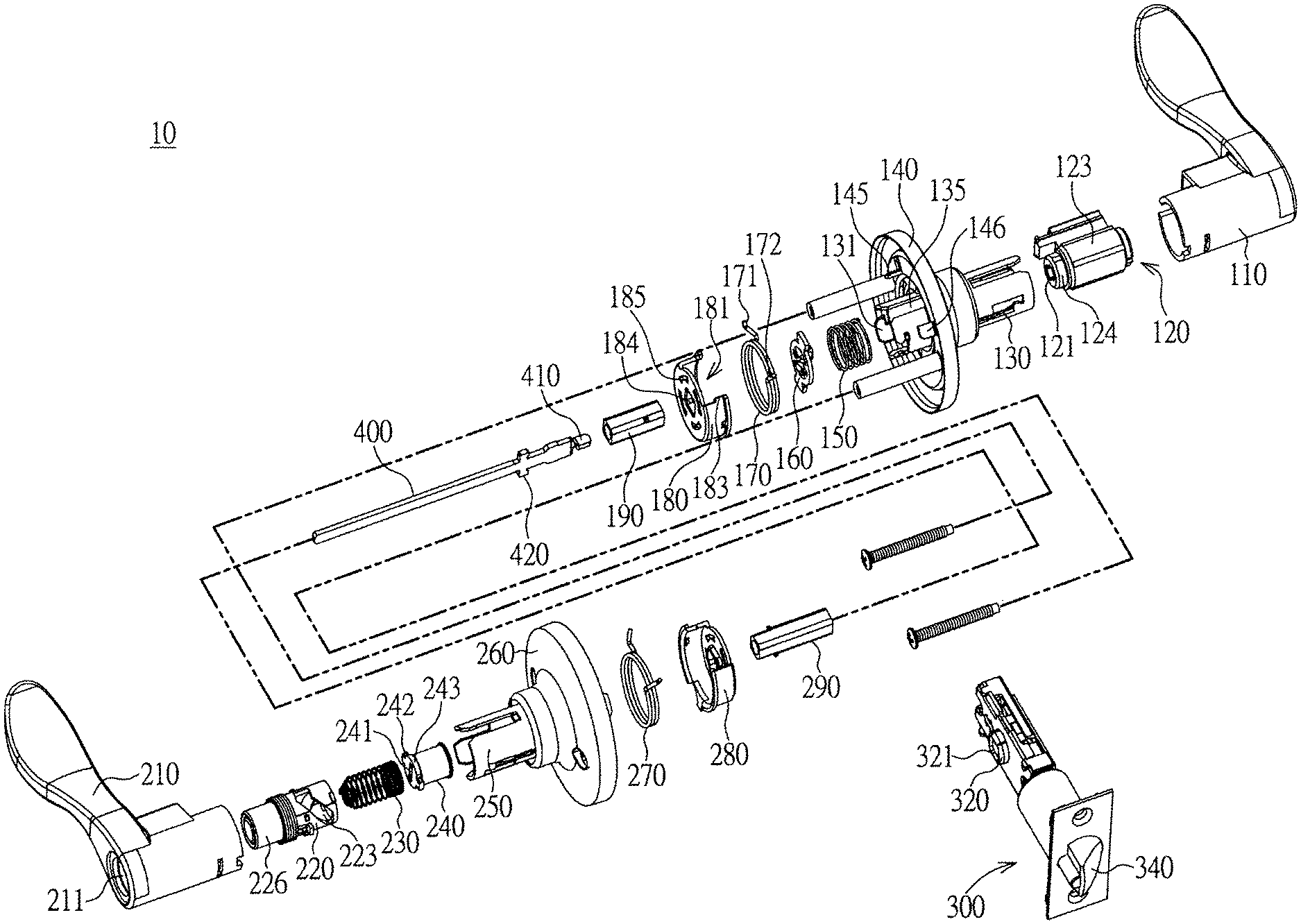

A transmission mechanism applied to a lock and for controlling the lock to switch between an unlocked state and a locked state. The lock includes a first handle set including a first cover plate which includes a first fitting portion. The transmission mechanism includes a transmission element and a moving component. The transmission element is connected to the first handle set in a manner that the transmission element is incapable of moving along a rotating axis and has an abutting portion. The moving component is disposed on the transmission element in a manner that the moving component is capable of moving along the rotating axis and includes a first engaging groove, a second engaging groove and a second fitting portion. When the transmission element is operated to rotate, the abutting portion is capable of switching between the first engaging groove and the second engaging groove.
