Rapidly deployable air supported structure systems and related methods
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 13, 2023
Grant Date -
Jul 15, 2021
app pub date -
Jan 26, 2021
filing date -
Apr 25, 2017
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

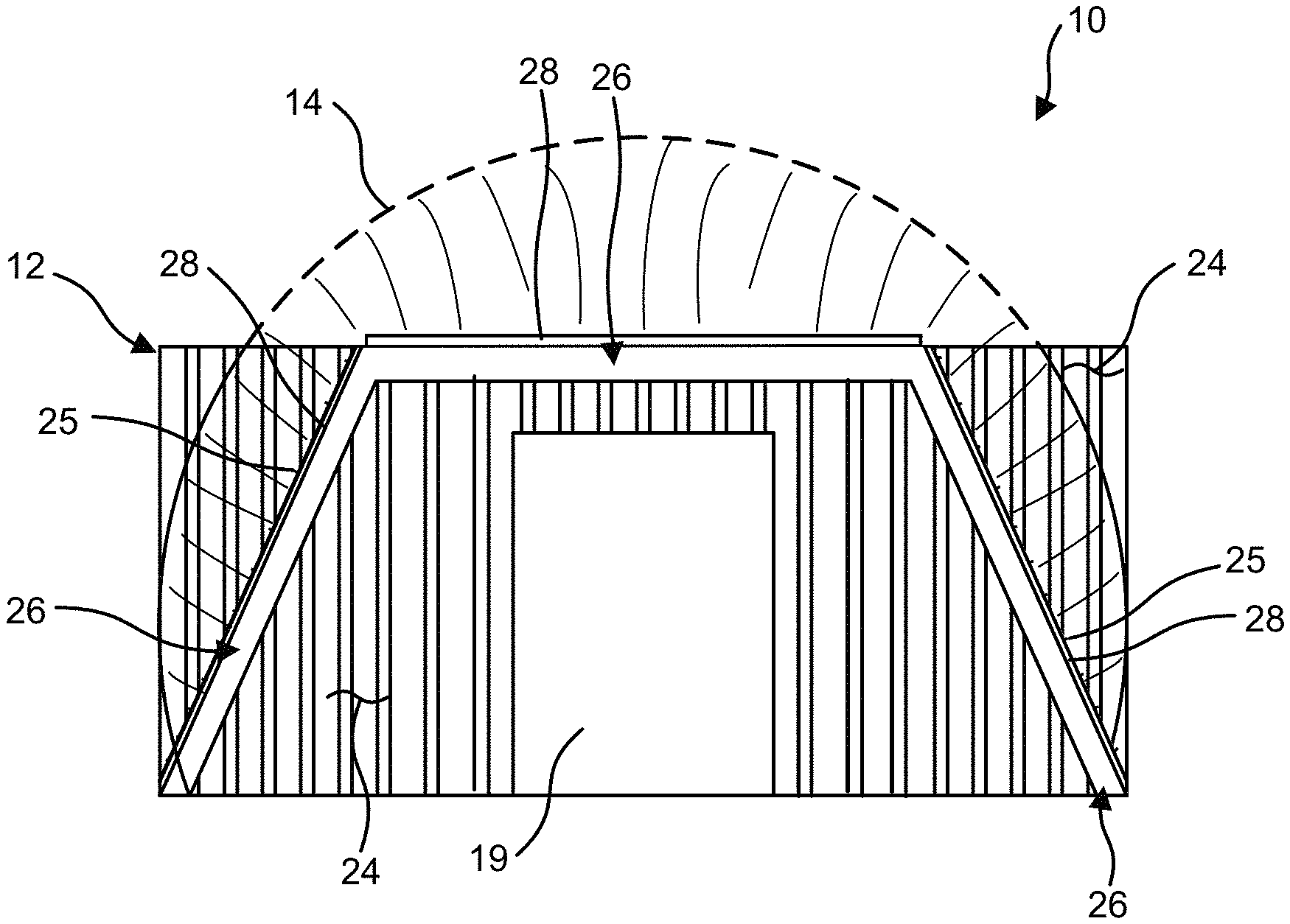

Transportable and rapidly deployable air supported structure systems and related methods are disclosed. The air supported structure systems include at least one transportable container. The systems also include a flexible outer membrane configured to couple to a base in a substantially air-tight manner. The systems further include at least one air handling mechanism contained within the at least one container configured to force air between the outer membrane and the base to form an enclosure therebetween via internal air pressure. The systems are configurable between a packaged state with the outer membrane contained within the at least one container, and a deployed state with the outer membrane being coupled to the base and the at least one air handling mechanism forming the enclosure via the internal air pressure. The at least one container may form a portion of the base and/or provide for ingress and egress with the enclosure.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2021 Application Filing Year
- E04B Class
- 939 Applications Filed
- 480 Patents Issued To-Date
- 51.12 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- E04B Class
- 84.32 % this patent is cited more than
- 2 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Dec 13, 2026 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 13, 2030 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 13, 2034 |
