Sand setting circulating device for wave-current tank test tailings
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 13, 2023
Grant Date -
Apr 20, 2023
app pub date -
Jun 30, 2022
filing date -
Oct 18, 2021
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

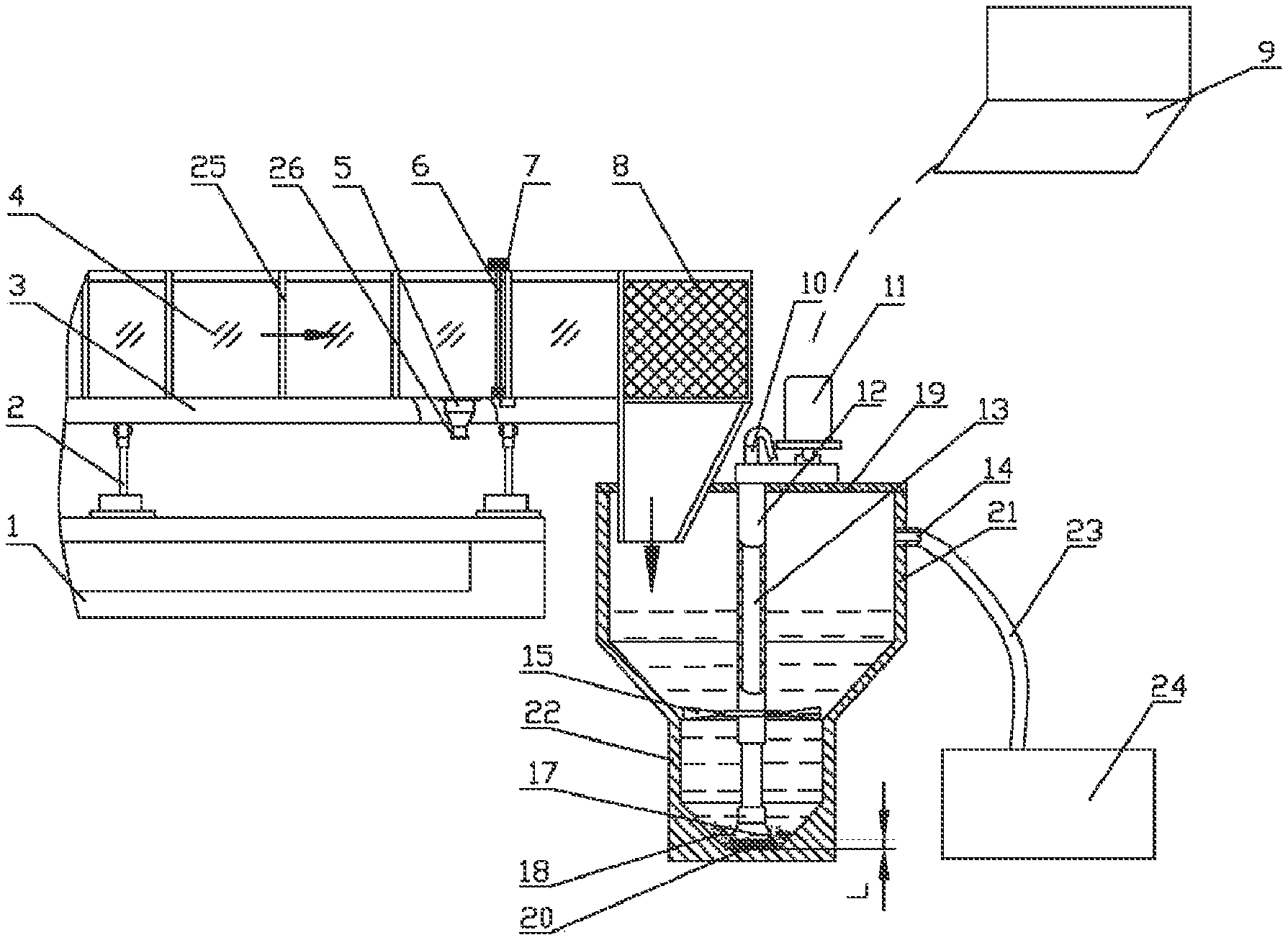

Provided is a sand setting circulating device for wave-current tank test tailings. A sand collection device is arranged at a front end of a tail gate of a tank body for performing primary collection on a bed-load sand body with a large particle size; a sand-water separating device is arranged at a tail end of the tank body for performing sand-water separation on tail water subjected to energy dissipation so as to perform secondary collection on a suspended load sand body with a small particle size, the sand-water separating device comprising a collection barrel and a sand suction device mounted in the collection barrel; a water outlet is formed in an upper part of the collection barrel, and separated clear water flows into a clear water reservoir through a water return pipe for cyclic utilization; and a computer is arranged for intelligent control.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2022 Application Filing Year
- E02B Class
- 169 Applications Filed
- 87 Patents Issued To-Date
- 51.48 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- E02B Class
- 0 % this patent is cited more than
- 2 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Dec 13, 2026 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 13, 2030 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 13, 2034 |
