Switch device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 13, 2023
Grant Date -
Sep 9, 2021
app pub date -
Mar 1, 2021
filing date -
Mar 4, 2020
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

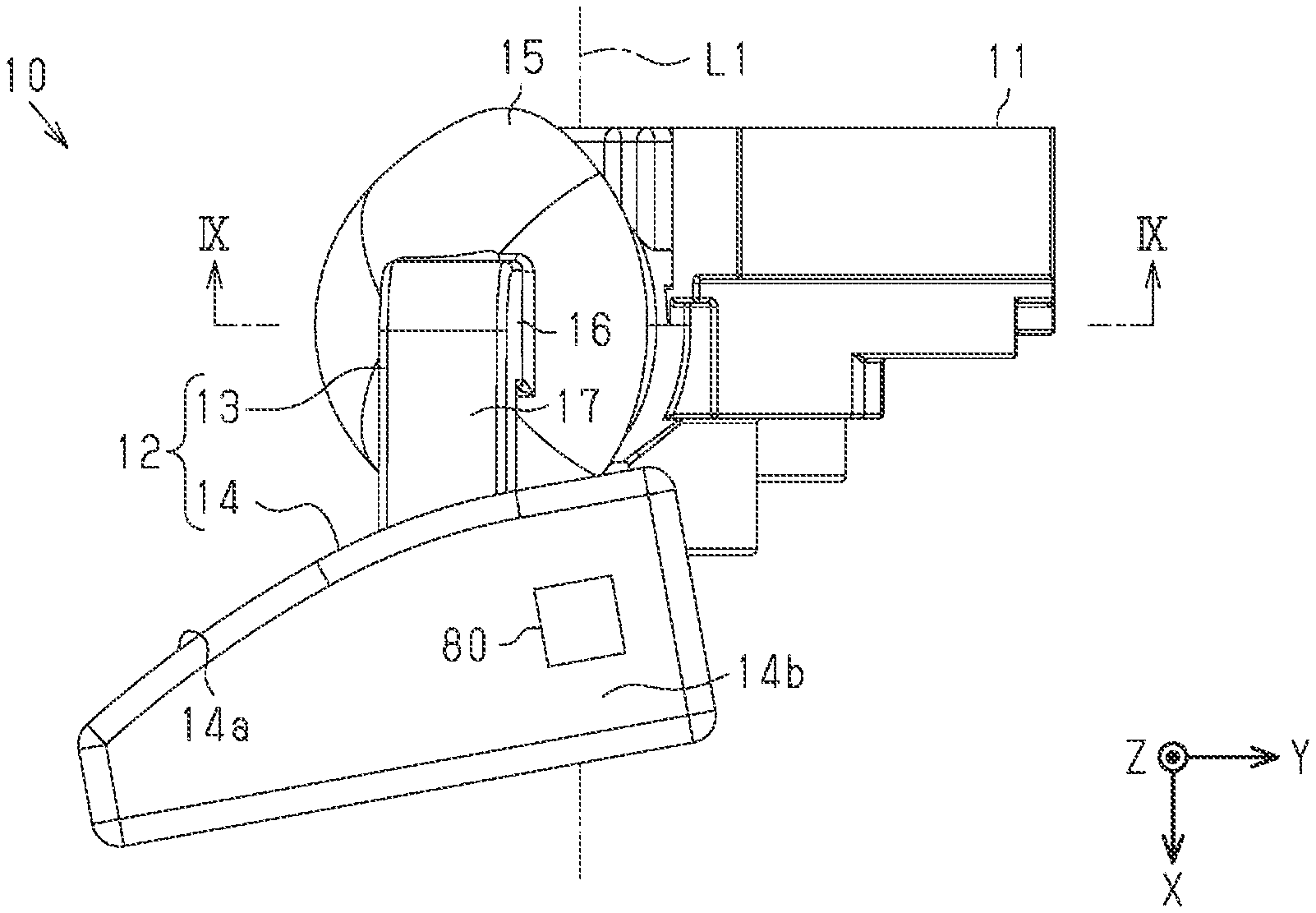

A switch device includes a switch body, which is arranged at the back side of a steering unit, and a lever unit, which is attached to the switch body to allow for switching by a pivotal operation about a first axis, which extends in the axial direction of a steering shaft. The lever unit includes a lever shaft, which extends in a direction intersecting the first axis of the pivotal operation, a lever head, which is arranged at the distal end of the lever shaft and has a larger dimension than the diameter of the lever shaft, and a push operation unit, which allows for switching by a push operation. The push operation unit is arranged so that the operation direction of the push operation is directed toward the first axis.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2021 Application Filing Year
- B60K Class
- 2345 Applications Filed
- 1419 Patents Issued To-Date
- 60.52 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B60K Class
- 0 % this patent is cited more than
- 2 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Dec 13, 2026 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 13, 2030 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 13, 2034 |
