Shielding structures in plasma environment
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 6, 2023
Grant Date -
Jan 14, 2021
app pub date -
Jul 11, 2019
filing date -
Jul 11, 2019
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

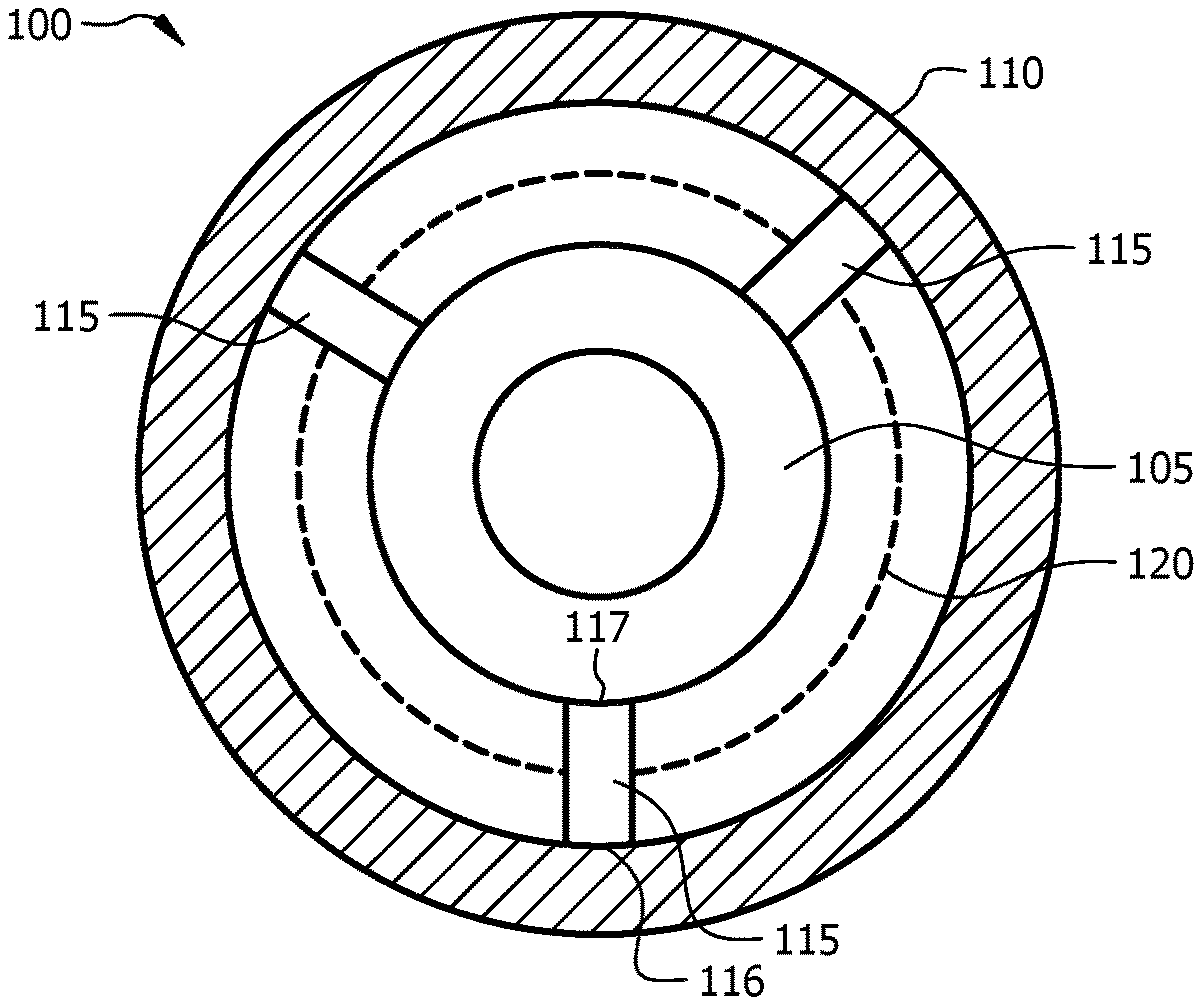

A plasma confinement system includes an enclosure, one or more internal magnetic coils suspended within the enclosure in a plasma region, and one or more supports configured to support the one or more internal magnetic coils suspended within the enclosure. Each support of the one or more supports includes a first end and a second end opposite the first end. The first end is coupled to an interior portion of the enclosure and the second end is coupled to a component disposed within the plasma region. Each support further includes electrical conducting material disposed between the first end and the second end. The electrical conducting material is configured to, when supplied with one or more electrical currents, generate a magnetic field having a magnetic field gradient that varies along the support from the first end to the second end.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H01J Class
- 0 % this patent is cited more than
- 2 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Dec 6, 2026 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 6, 2030 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 6, 2034 |
