Oscillator
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 6, 2023
Grant Date -
N/A
app pub date -
Nov 24, 2021
filing date -
Nov 26, 2020
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

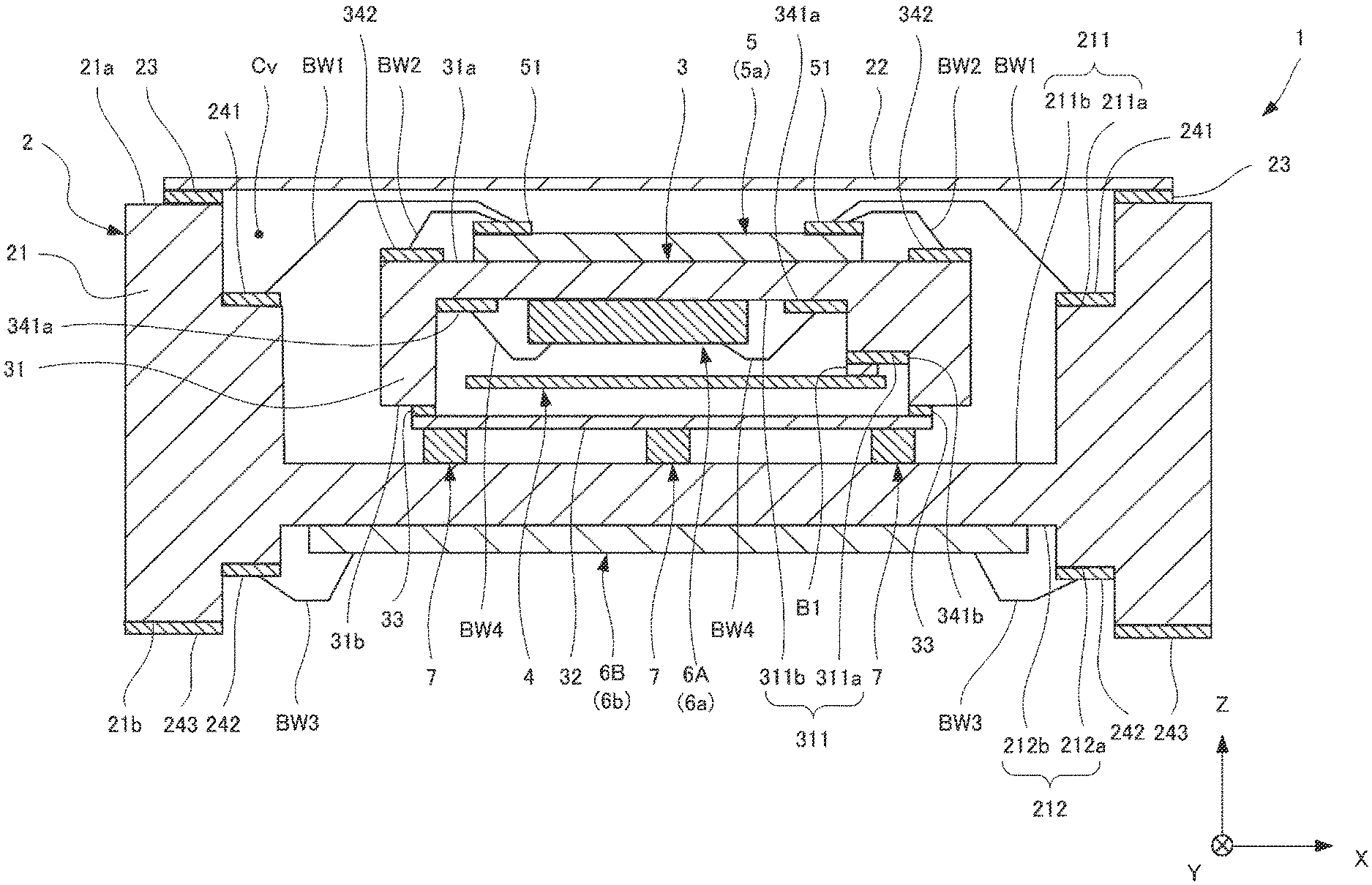

There is configured an oscillator characterized by including an outer package having a housing space, an inner package housed in the housing space, a resonator element housed in the inner package, a heater element housed in the housing space, and fixed to the inner package, an oscillation circuit configured to oscillate the resonator element, a conducting member configured to electrically couple the inner package and the heater element to each other, and a first bonding wire configured to couple the heater element and the outer package to each other, and configured to electrically couple the conducting member and the outer package to each other.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2021 Application Filing Year
- H03L Class
- 451 Applications Filed
- 350 Patents Issued To-Date
- 77.61 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H03L Class
- 0 % this patent is cited more than
- 2 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Dec 6, 2026 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 6, 2030 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 6, 2034 |
