Combustor with dilution holes
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 6, 2023
Grant Date -
Feb 9, 2023
app pub date -
Aug 3, 2021
filing date -
Aug 3, 2021
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

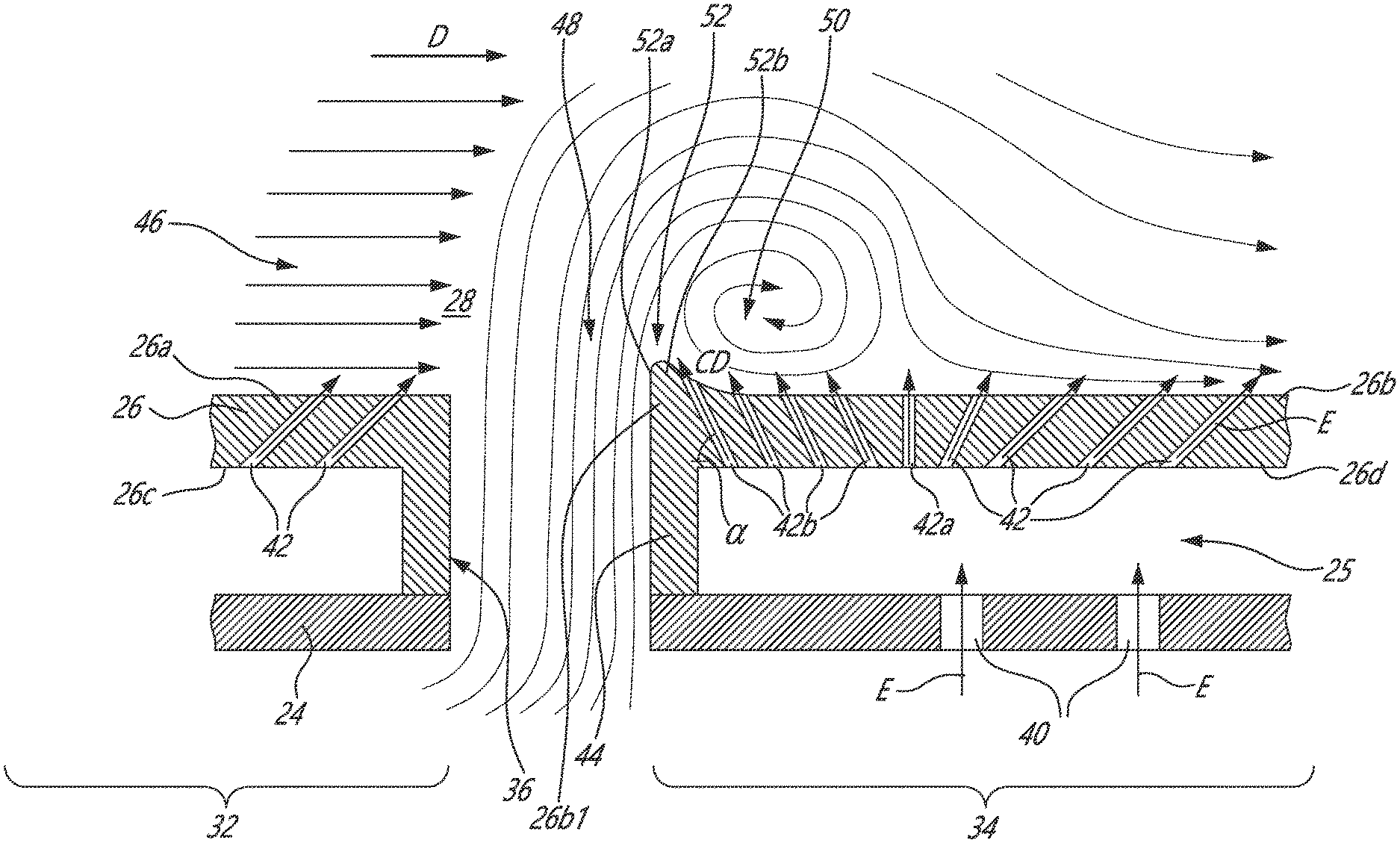

A combustor of an aircraft engine comprises a liner defining a primary and a dilution zone having a hot surface exposed to a flow of combustion gases traveling from the primary zone downstream to the dilution zone and a cold surface. Dilution holes extending through the liner from the cold to the hot surface delimit the primary from the dilution zone. Effusion holes extending through the liner from the cold to the hot surface direct cooling air into the dilution zone. Two or more rows of effusion holes positioned within three dilution hole diameters downstream of the dilution holes are oriented relative to the liner to direct the cooling air in a cooling direction that is at least one of normal to the direction of the flow of gases passing adjacent the effusion holes, and against the direction of the flow of gases passing adjacent the effusion holes.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2021 Application Filing Year
- F23M Class
- 16 Applications Filed
- 8 Patents Issued To-Date
- 50 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F23M Class
- 0 % this patent is cited more than
- 2 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Dec 6, 2026 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 6, 2030 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 6, 2034 |
